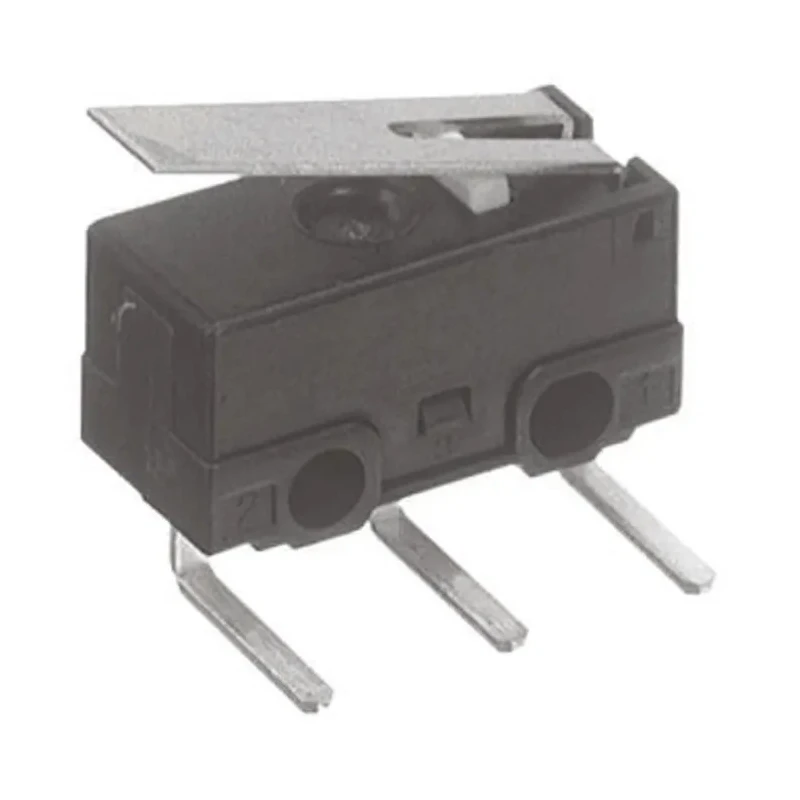

Panasonic Ultra Miniature Hinge Lever Micro Switch with Right Angle PCB Terminal, 100mA, 125V AC, 30V DC AH1782619-A

Panasonic AH1782619-A is an ultra miniature hinge lever micro switch designed for high precision switching in compact equipment. Featuring a right angle PCB terminal and a small form factor measuring 12.8 mm wide, 6 mm deep, and 8.5 mm long, this micro switch is optimized for space-constrained industrial and commercial electronics applications.

With a switch contact current of 100mA and contact voltages rated at 125V AC and 30V DC, the AH1782619-A performs reliably within sensitive electronic circuits. Its single-pole changeover (SPCO) contact configuration coupled with a low operating force of 0.25N enables responsive operation suitable for devices such as computer mice, mobile phone charger units, and automotive key position detectors.

The mechanical robustness of this ultra miniature microswitch supports up to 10 million operations, ensuring extended product life under varied use conditions. Its wide operating temperature range of -25°C to 85°C makes it suitable for diverse environmental conditions encountered in industrial automation and electronic devices.

The integrally molded terminal block protects against soldering flux penetration, enhancing durability and performance consistency over time. Panasonic’s compliance with UR, RoHS, and CSA standards assures quality and safety in electrical installations.

This micro switch is manufactured in Thailand, maintaining high standards of production quality. Typical industrial, laboratory, and automation uses include precision switching in electronics, control panels, and compact devices requiring reliable actuation mechanisms.

Operates at 100mA current with SPCO contact configuration. Compact size of 12.8 mm width, 6 mm depth, and 8.5 mm length. Supports contact voltages of 125V AC and 30V DC. Operating force of 0.25N ensures sensitive response.

Reliable mechanical life rated for 10 million operations. Wide operating temperature range from -25°C to 85°C. Integrally molded terminal block prevents soldering flux ingress. Complies with UR, RoHS, CSA standards for quality assurance.

Ideal for use in computer mice, mobile phone chargers, and automotive key position detection. Manufactured in Thailand for trusted quality. Explore more high precision Micro Switches and automation components in the Electronics & Electricals category at EnvMart.
