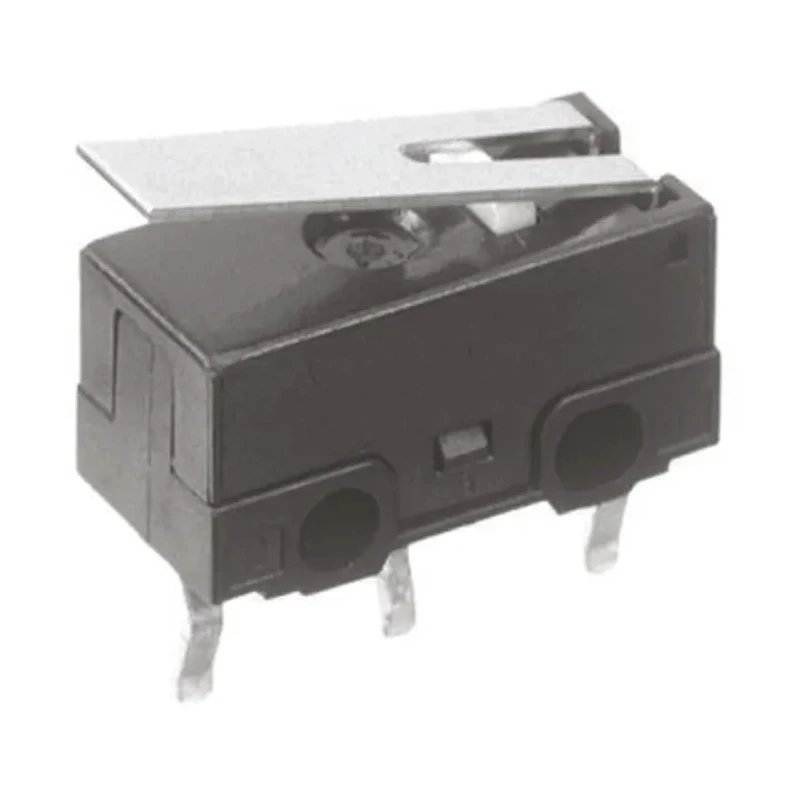

Panasonic Ultra Miniature Hinge Lever Micro Switch, PCB Terminal, 100mA, 125 V AC, 30 V DC, SPCO AH146261-A

Panasonic AH146261-A ultra miniature hinge lever micro switch, featuring PCB terminal and SPCO contact configuration, supports 100mA current at 125 V AC and 30 V DC. This precise switch operates reliably across a wide temperature range from -25°C to 85°C, making it suitable for industrial electronics and automation systems.

Its compact dimensions of 12.8 mm width, 6 mm depth, and 8.5 mm length enable integration into space-constrained equipment such as computer peripherals and automotive components. The hinge lever actuator provides sensitive and accurate switching action, while the mechanical lifespan rating of 500,000 operations guarantees operational durability.

The integrally moulded terminal block safeguards the switch from soldering flux penetration, enhancing longevity and performance in PCB assemblies. The flat terminal design simplifies soldering processes during manufacturing.

This micro switch complies with CSA, RoHS, and UR standards, ensuring safety and regulatory adherence. It is widely used in devices like computer mice, mobile phone charger units, and key position detector devices in automobiles, highlighting its versatility in various electrical and automation applications.

The compact form factor suits high precision control applications. Robust mechanical life supports continuous industrial use. Hinge lever actuator type ensures precise actuation. PCB terminal type offers easy integration on printed circuit boards.

Meets international safety and quality standards. Operating environmental temperature spans from -25°C to 85°C. Wide application range in computing, automotive, and consumer electronics.

Choose Panasonic micro switches for reliability in precision electronic switching tasks. Explore more in our Micro Switch category for industrial automation and electronic component needs at EnvMart.
