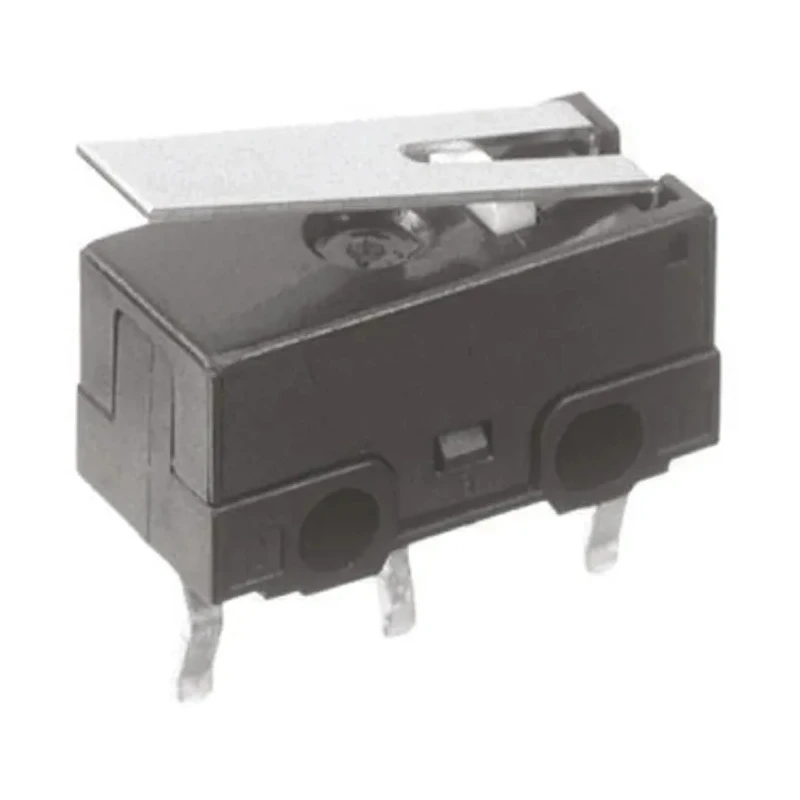

Panasonic Ultra Miniature Hinge Lever Micro Switch with PCB Terminal, 100mA, 30 V dc, SPDT, IP40 AH1462619-A

Panasonic AH1462619-A Ultra Miniature Hinge Lever Micro Switch, featuring a compact size of 12.8 x 6 x 8.5 mm, is engineered for precision and reliability in electronic switching applications. This micro switch integrates a hinge lever actuator and PCB terminal, designed to facilitate effortless soldering and secure electrical connections.

With a switch contact current rating of 100mA and contact voltage of 30 V dc, it supports SPDT contact configuration to fulfill versatile switching requirements. Its IP40 protection rating makes it suitable for use in environments requiring moderate protection from solid objects.

The operating force of 0.49N ensures efficient switching actuation, while its operational temperature range from -25°C to 85°C enables stable performance in diverse industrial conditions.

Manufactured to meet the RoHS, UR, REACH, and CSA standards, this microswitch is suitable for applications including computer mice, charger units for mobile devices, and key position detection in automotive systems. The mechanical life of 500000 operations assures longevity and dependable service life in demanding setups.

The integrated terminal block prevents soldering flux ingress, increasing durability and reliability. Its ultra-miniature form factor contributes to reducing equipment size without compromising functionality.

Panasonic's AH1462619-A Micro Switch offers industrial-grade precision suited for manufacturing, automation, laboratory, and electronics industries seeking compact, durable switching solutions.

Features a hinge lever actuator type for sensitive and reliable operation. Equipped with a PCB terminal ensuring secure connection and easy soldering. Supports a switch contact current of 100mA and contact voltage up to 30 V dc.

Single Pole Double Throw (SPDT) contact configuration for flexible switching needs. Rated with IP40 protection, suitable for controlled environments. Operating force of 0.49N ensures responsive actuation without excessive pressure.

Designed to operate reliably between -25°C and 85°C temperature range. Ultra miniature size at 12.8 x 6 x 8.5 mm ideal for compact devices. Mechanical life expectancy rated at 500000 operations for durability. Manufactured in Japan, adhering to RoHS, UR, REACH, and CSA standards.
