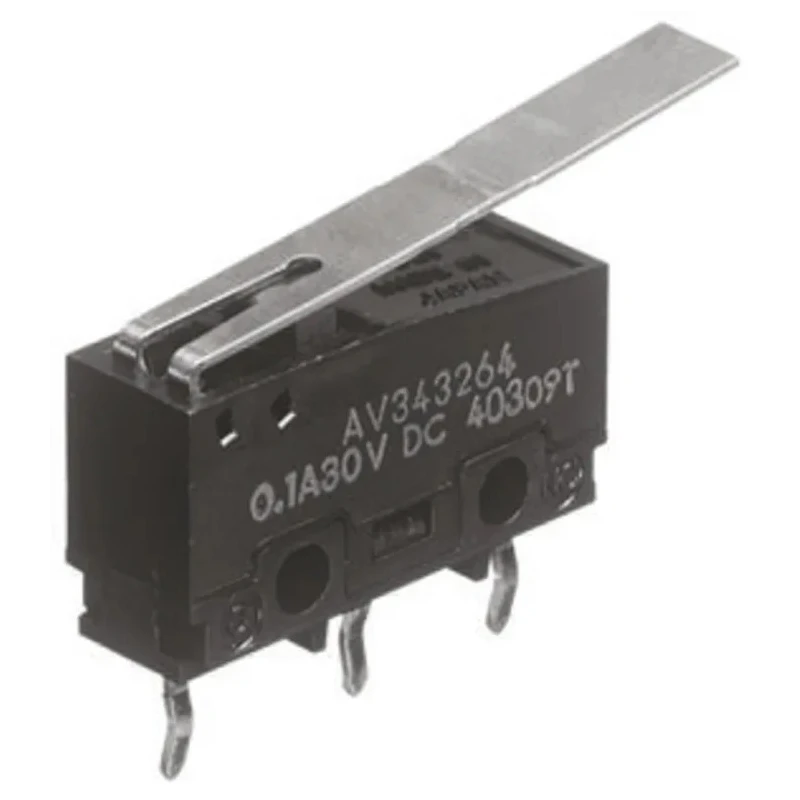

Panasonic Long Hinge Lever Micro Switch PCB Terminal 100mA 250V AC 30V DC SPCO AV3434613-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Model | AV3434613-A |
| Series | AV3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Long Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | CSA, RoHS, SEMKO, UL, VDE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-4409Brand: PanasonicManufacturers Part No.: AV3434613-A |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.25N |
| Mechanical Life | 500000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- This micro switch features a long hinge lever actuator for reliable mechanical operation.
- PCB terminal type ensures easy mounting and electrical connectivity on printed circuit boards.
- Contact configuration is SPCO (Single Pole Change Over), suitable for versatile switching needs.
- Operating force is a low 0.25N, allowing sensitive actuation with minimal effort.
- Operates safely within a temperature range of -25°C to 85°C for varied environmental conditions.
- Has a robust mechanical life of up to 500,000 operations, ensuring long service life.
- Constructed with flux-resistant design ideal for precision and reliability in industrial electronics.
- Meets standards and approvals from CSA, RoHS, SEMKO, UL, and VDE for quality assurance.
Product Description
Panasonic AV3434613-A is a high-precision subminiature micro switch equipped with a long hinge lever actuator and PCB terminals, rated for 100mA contact current, 250V AC, and 30V DC operation. This model is part of the AV3 series known for its flux-resistant construction and integrally moulded terminals.
The switch offers SPCO (Single Pole Change Over) contact configuration and a low operating force of 0.25N, facilitating sensitive and reliable switching in compact electronic devices. It functions effectively within a wide temperature range from -25°C to 85°C and delivers an impressive mechanical endurance of up to 500,000 operations.
Designed to meet rigorous international certification standards including CSA, RoHS, SEMKO, UL, and VDE, the AV3434613-A ensures quality and compliance for industrial and commercial use.
Typical industrial applications encompass communication equipment, vending machines, security systems, data management devices, and specialized medical equipment. Its PCB terminal design simplifies integration into various circuit boards, making it ideal for automation and control applications.
This micro switch includes a long hinge lever actuator for precise control. PCB terminals facilitate easy and secure installation. SPCO contact configuration supports versatile electrical switching. Low operating force enhances user and machine interaction.
Operational temperature range ensures reliable performance under diverse conditions. Mechanical life expectancy supports long-term industrial usage. Flux-resistant construction reduces risk of contamination and failure. Compliant with major safety and quality certifications for industrial applications.
Widely used in electronics, automation, security, and medical sectors. For more products in Micro Switches and related categories, explore the Electronics & Electricals section at EnvMart for diverse and quality industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This micro switch features a Single Pole Change Over (SPCO) contact configuration.
The rated contact current for this micro switch is 100mA.
It uses a long hinge lever actuator for reliable mechanical operation.
The operating force required for actuation is 0.25N, allowing for sensitive actuation.
It has a mechanical life expectancy of up to 500,000 operations.
The minimum operating temperature for this micro switch is -25°C.
This model meets several standards and approvals, including CSA, RoHS, SEMKO, UL, and VDE.
It features PCB terminals, which ensure easy mounting and electrical connectivity on printed circuit boards.
Typical applications include communication equipment, vending machines, security systems, data management devices, and specialized medical equipment.
The voltage rating is 250V AC for alternating current and 30V DC for direct current operations.
The country of origin for this model is India.
