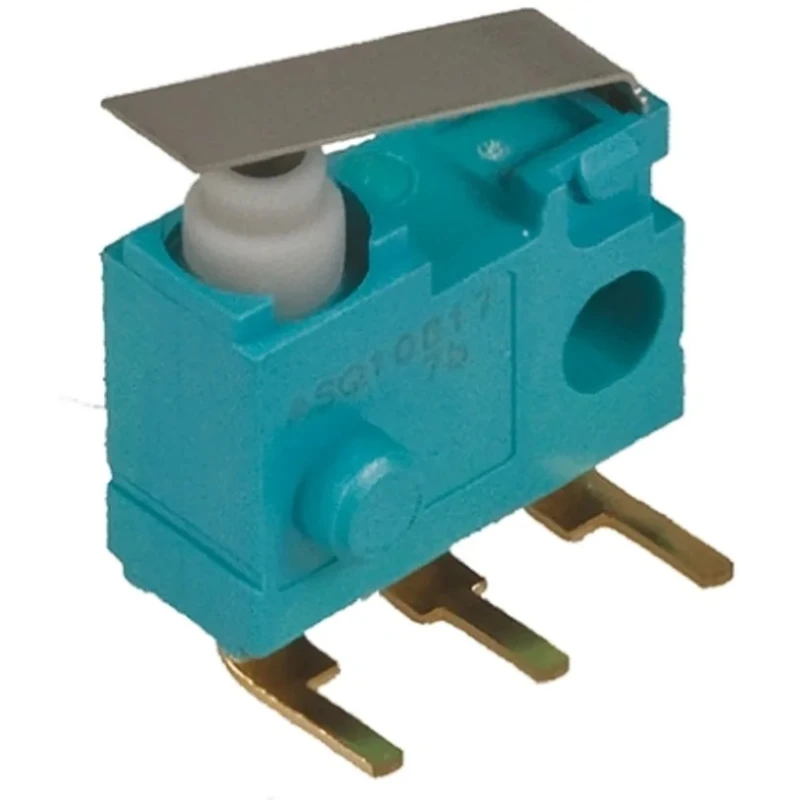

Panasonic Leaf Lever Micro Switch Right Angle PCB Terminal 100mA 30V DC SPDT IP67 ASQ10717
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Model | ASQ10717 |
| Depth | 8.3mm |
| IP Rating | IP67 |
| Series | ASQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Leaf Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Right Angle PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.7N |
| Microswitch Type | Ultra Miniature |
Key Features
- The leaf lever actuator provides precise and reliable operation.
- The micro switch supports a contact current of 100mA at 30 V DC.
- It features an ultra-miniature form factor with a depth of 8.3mm.
- Designed for harsh environments with an IP67 ingress protection rating.
- Operates reliably across a wide temperature range of -40°C to 85°C.
- Operating force is 1.7N ensuring consistent mechanical response.
- Complies with RoHS standards, ensuring environmental safety.
- Manufactured in Japan for assured quality and durability.
Product Description
Panasonic ASQ10717 Leaf Lever Micro Switch is an ultra-miniature switch designed for precise and reliable low-level switching in industrial and automotive applications. Featuring a right angle PCB terminal and leaf lever actuator, it supports a contact current of 100mA and contact DC voltage of 30 V DC in a compact 8.3mm depth body.
This micro switch exhibits excellent durability with bounce-free and hysteresis-free operation. It is protected to IP67 standards, ensuring suitability for environments that require dust-tight and immersion resistance, making it ideal for industrial automation, control systems, and automotive equipment.
The operating force of 1.7N ensures positive switching action while supporting a broad temperature range from -40°C to 85°C, which covers most electrical design requirements for robust operation.
The switch meets RoHS environmental compliance requirements, aligning with global standards for hazardous substance elimination. Its manufacture in Japan guarantees high-quality construction and performance consistency.
The leaf lever actuator provides precise and reliable operation. The micro switch supports a contact current of 100mA at 30 V DC. It features an ultra-miniature form factor with a depth of 8.3mm. Designed for harsh environments with an IP67 ingress protection rating.
Operates reliably across a wide temperature range of -40°C to 85°C. Operating force is 1.7N ensuring consistent mechanical response. Complies with RoHS standards, ensuring environmental safety. Manufactured in Japan for assured quality and durability.
This micro switch is suitable for use in industrial automation, electrical control equipment, automotive systems, and any application requiring compact, reliable, and durable low current switching.
Explore the full range of Micro Switches at EnvMart for expert solutions for your electronics projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch supports a maximum contact current of 100mA.
It has a contact DC voltage rating of 30V.
This model features a leaf lever actuator for precise and reliable operation.
It is rated IP67, making it suitable for dust-tight and immersion-resistant applications.
The switch operates reliably within a temperature range of -40°C to 85°C.
This micro switch has an ultra-miniature form factor with a depth of 8.3mm.
It is equipped with a right angle PCB terminal.
The operating force is 1.7N, ensuring positive switching action.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is manufactured in Japan, ensuring quality and performance consistency.
It is suitable for industrial automation, control systems, and automotive equipment.
This micro switch features a Single Pole Double Throw (SPDT) contact configuration.
