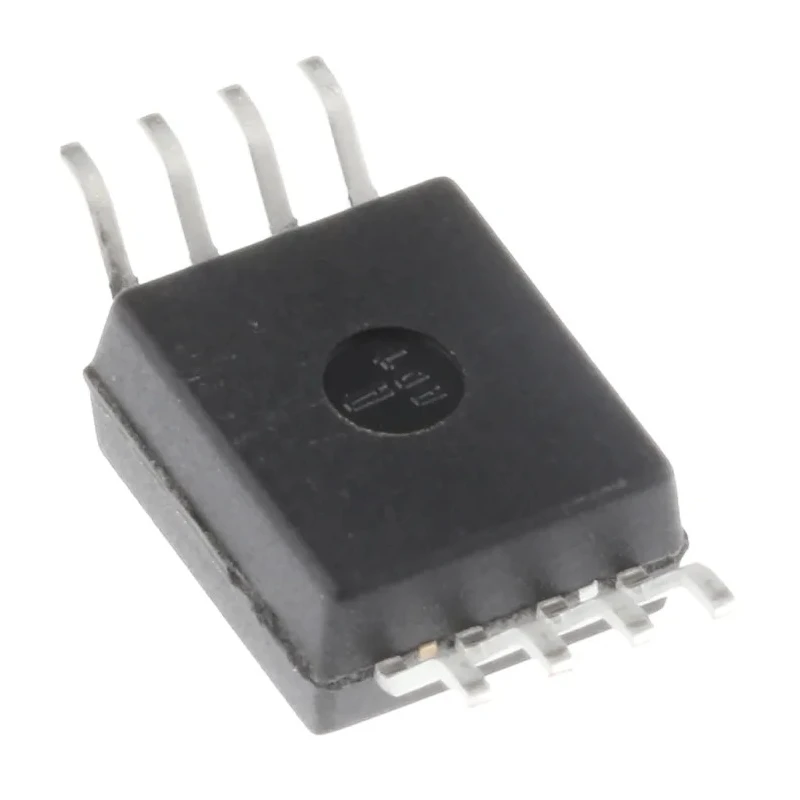

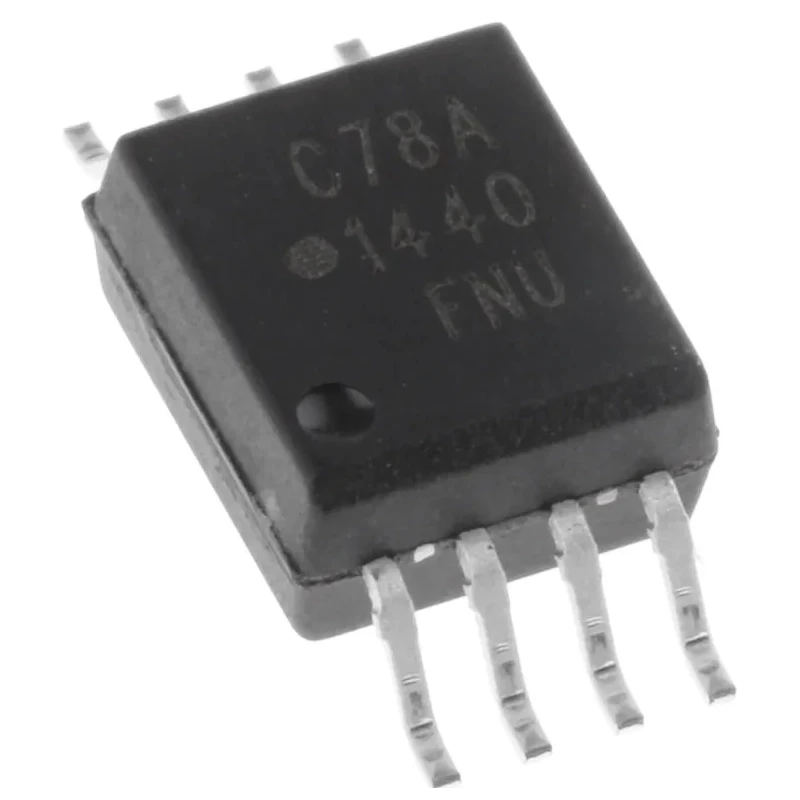

Broadcom Isolation Amplifier, 8-Pin SOIC, 5-5.5V Supply Voltage ACPL-C78A-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.18mm |
| Length | 5.85mm |
| Model | ACPL-C78A-000E |
| Mount Type | Surface |
| Series | ACPL-C78A |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 693-5974PBrand: BroadcomManufacturers Part No.: ACPL-C78A-000E |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Vos - Input Offset Voltage | 2 mV |
| Isolation Type | Miniature Isolation Amplifiers |
Key Features
- Operates with a minimum supply voltage of 5 V and maximum of 5.5 V.
- Features a single channel and miniature isolation amplifier design.
- Surface-mount type package (SOIC) with 8 pins ensures easy PCB integration.
- Input offset voltage is low at 2 mV for accurate signal processing.
- Wide operating temperature range from -40°C to 85°C supports industrial environments.
- Compact dimensions with length 5.85 mm and height 3.18 mm facilitate space saving.
- No specific automotive or additional certifications, compliant with basic standards.
- Ideal for isolating high voltages and precise measurement in motor drives and power inverters.
Product Description
Broadcom ACPL-C78A-000E isolation amplifier is a surface-mount miniature isolation amplifier designed for industrial and electronic applications requiring precise signal isolation. It operates with a supply voltage from 5 V to 5.5 V and integrates a single channel within an 8-pin SOIC package, facilitating compact and efficient PCB mounting.
This device features a low input offset voltage of 2 mV, ensuring accurate measurement of current and voltage signals in power converters and motor drives. It is engineered to operate reliably in extreme temperature ranges from -40°C to 85°C, making it suitable for harsh industrial environments.
The isolation amplifier utilizes sigma-delta modulator technology for high common mode rejection performance and built-in safety insulation, providing a dependable alternative to Hall Effect isolation amplifiers. Its compact size with dimensions of 5.85 mm length and 3.18 mm height supports space-constrained designs.
Designed by Broadcom, this isolation amplifier meets essential standards without automotive or other specialized approvals. It is perfect for applications involving voltage signal isolation, current sensing, and noise immunity in industrial automation, manufacturing equipment, HVAC systems, and power electronics.
Operates on a 5 to 5.5 V supply voltage range. Single channel configuration with miniature isolation amplifier design. Surface-mount SOIC package with 8 pins allows efficient PCB mounting. Low input offset voltage of 2 mV for enhanced signal accuracy.
Wide operating temperature range: -40°C to 85°C. Compact dimensions: 5.85 mm length, 3.18 mm height. High common mode rejection and built-in safety insulation for industrial robustness. Applicable in motor drives, power inverters, and industrial signal isolation.
Explore the range of Broadcom Isolation Amplifiers for reliable and precise electrical isolation in demanding industrial and electronic designs. Discover more components and related semiconductor products in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This isolation amplifier operates with a supply voltage range from 5 V to 5.5 V.
The input offset voltage is low at 2 mV, which enhances signal accuracy during processing.
The compact dimensions of this unit are 5.85 mm in length and 3.18 mm in height.
It can operate at a maximum temperature of 85°C, making it suitable for harsh industrial environments.
This model features a single channel configuration.
It comes in a surface-mount SOIC package with 8 pins, facilitating efficient PCB mounting.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
This isolation amplifier is ideal for applications involving voltage signal isolation, current sensing, and noise immunity in industrial automation and power electronics.
It utilizes miniature isolation amplifier technology, providing high common mode rejection performance.
This product is manufactured in India.
It belongs to the ACPL-C78A series of isolation amplifiers by Broadcom.
The low input offset voltage of 2 mV is significant for ensuring accurate measurement of current and voltage signals in various applications.
