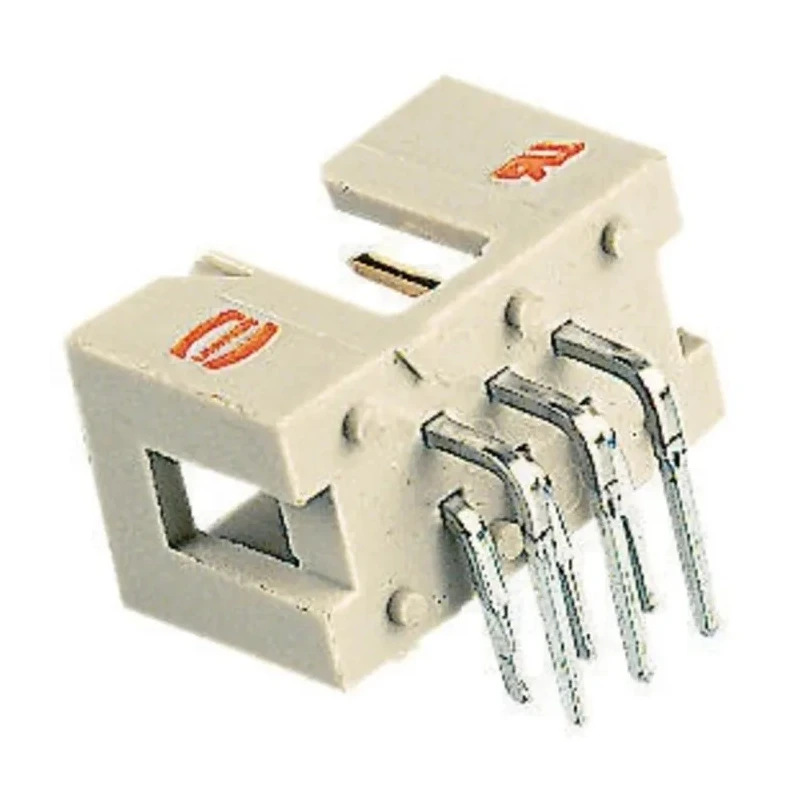

HARTING SEK 18 Series Right Angle Through Hole PCB Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 09185066323
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 693-5242PBrand: HARTINGManufacturers Part No.: 09185066323 |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The PCB header features 6 gold-plated copper alloy contacts for durable conductivity.
- It has a pitch of 2.54 mm ensuring standard spacing compatibility.
- The housing material is polybutylene terephthalate providing robust insulation.
- This shrouded header is mounted using through-hole technology with a right-angle orientation.
- It operates safely within a temperature range of -55°C to 125°C.
- The contact gender is male with solder termination type ensuring reliable connection.
- The header supports up to 1 A current and insulation voltage of 1 kV.
- Designed to meet IEC 60603-13 standards with UL recognized performance level 2.
Product Description
HARTING 09185066323 is a high-quality SEK 18 Series Right Angle Through Hole PCB Header designed for reliable wire-to-board connections in industrial and electronic applications. Featuring 6 contacts arranged in 2 rows with a 2.54 mm pitch, this shrouded header provides secure mating and protection against accidental contact.
The housing is made from durable polybutylene terephthalate, ensuring excellent electrical insulation and mechanical stability under harsh operating conditions. Contacts are crafted from copper alloy and plated with gold to provide superior conductivity and corrosion resistance. The solder termination and male contact gender facilitate robust PCB mounting and connectivity.
Operable within a temperature range from -55°C to 125°C, this header suits varied environmental conditions encountered in manufacturing, automation, and electronic device assembly. The 1 A current rating and 1 kV voltage withstand guarantee electrical safety for general power and signal transmission.
This SEK 18 series component conforms to IEC 60603-13 standards and has UL recognized performance level 2 approval, assuring industry-standard quality and reliability for high-precision electronics.
The PCB header features 6 gold-plated copper alloy contacts for durable conductivity. It has a pitch of 2.54 mm ensuring standard spacing compatibility. The housing material is polybutylene terephthalate providing robust insulation.
This shrouded header is mounted using through-hole technology with a right-angle orientation. It operates safely within a temperature range of -55°C to 125°C. The contact gender is male with solder termination type ensuring reliable connection.
The header supports up to 1 A current and insulation voltage of 1 kV. Designed to meet IEC 60603-13 standards with UL recognized performance level 2.
This component is ideal for industrial electronics, PCB assembly, electronic manufacturing, and automation systems requiring durable and secure wire-to-board connections. Explore the complete range of PCB Headers from HARTING for your application needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 1 A.
It has an insulation voltage rating of 1 kV.
The contacts are arranged with a pitch of 2.54 mm, ensuring standard spacing compatibility.
It operates safely within a temperature range of -55°C to 125°C.
This header features 6 contacts arranged in 2 rows.
The housing is made from polybutylene terephthalate, providing robust insulation.
It uses a solder termination type for reliable connection.
This unit is a shrouded header, providing protection against accidental contact.
The contact gender is male, suitable for various applications.
It is designed to meet IEC 60603-13 standards and has UL recognized performance level 2.
This model is designed with a right-angle orientation for through-hole mounting.
It is ideal for industrial electronics, PCB assembly, electronic manufacturing, and automation systems.
