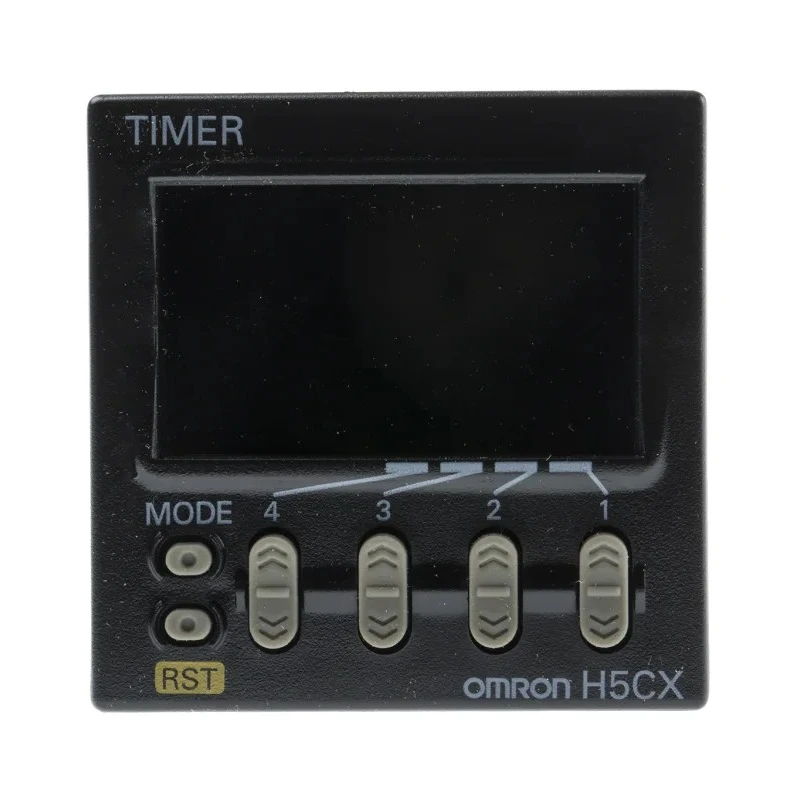

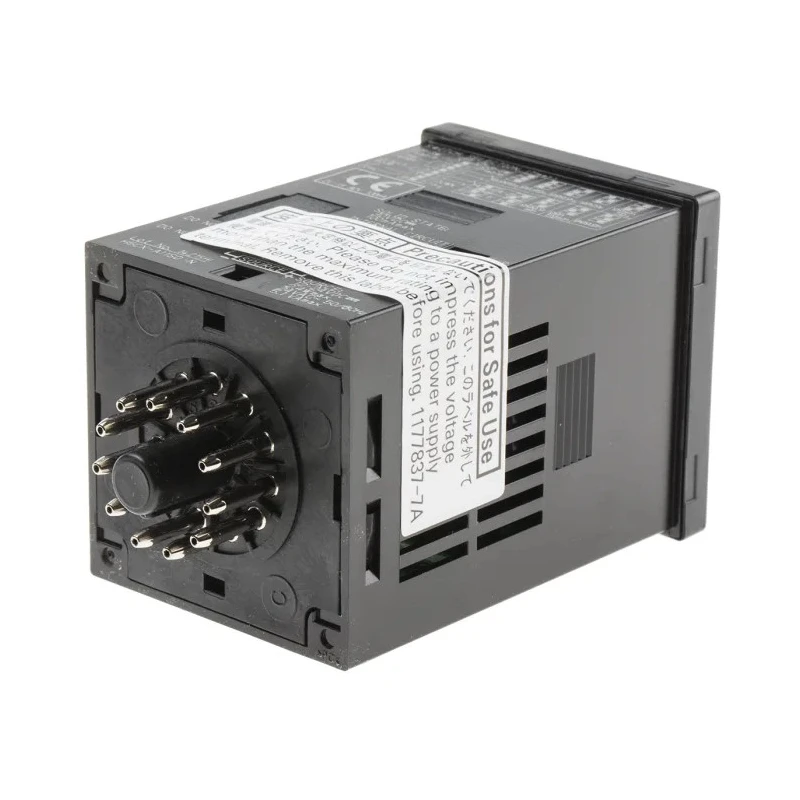

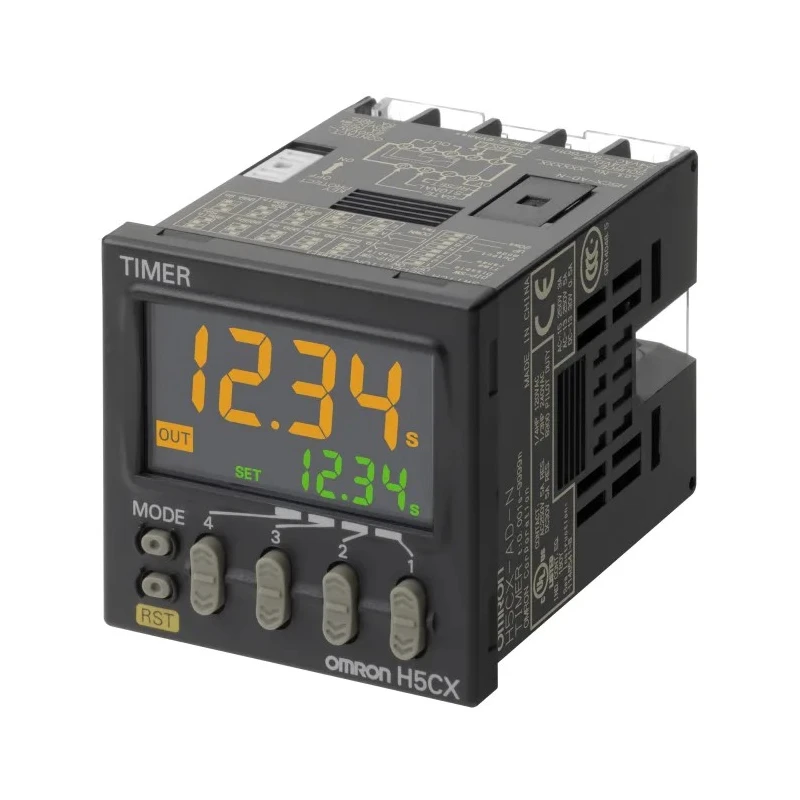

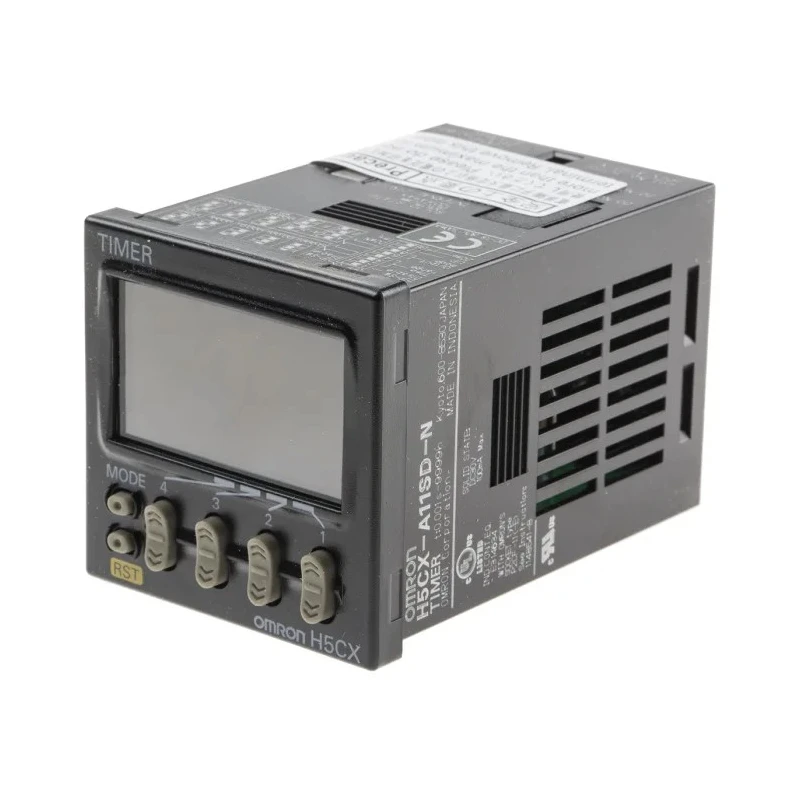

Omron H5CX Series Panel Mount Timer Relay, 1-Contact, 24 V dc/24 V ac, Multifunction, SPST, Time Range 0.001 s to 9999 h

Free Delivery in India | Lowest Global Shipping Charges

Omron H5CX Series Panel Mount Timer Relay, 1-Contact, 24 V dc/24 V ac, Multifunction, SPST, Time Range 0.001 s to 9999 h

Name: Omron H5CX Series Panel Mount Timer Relay, 1-Contact, 24 V dc/24 V ac, Multifunction, SPST, Time Range 0.001 s to 9999 h
Brand: Omron
SKU: 350431
Price: 340.15 USD
Availability: InStock



Category Timer Relay Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	48mm
Length	48mm
Model	H5CX
IP Rating	IP66
Mode	Multifunction
Width	48mm
Mount Type	Panel Mount
Series	H5CX
Maximum Operating Temperature	55°C
Contact Configuration	SPST
Minimum Operating Temperature	-10°C
Time Range	0.001 s to 9999 h
Terminal type	11-Pin
Standards/Approvals	EN, UR, CSA
Number of Contacts	1
Number of Timer Functions	Multifunction
Contact Current	5A
Supply DC Voltage	24 V dc
Timing Adjustment	Thumbwheel Switch
Supply AC Voltage	24V ac

Key Features

Compact 48mm x 48mm x 48mm panel mount design for space efficiency.
Operates on both 24 V dc and 24 V ac supply voltages.
Single-pole, single-throw (SPST) contact configuration capable of 5 A contact current.
Multifunction timer capabilities with adjustable thumbwheel switch for precise timing.
IP66 rated for dust-tight and water-resistant performance.
Operating temperature range from -10°C to 55°C ensures reliability in varied environments.
11-pin terminal type for easy installation and wiring.
Complies with EN, UL Recognized (UR), and CSA standards for safety and performance.

Product Description

Omron H5CX-A11SD-N is a high-quality panel mount timer relay featuring a single contact and multifunction timing capabilities with a wide time range from 0.001 seconds to 9999 hours. Designed to operate on a supply voltage of 24 V dc or 24 V ac, it offers precise and flexible timing control suitable for diverse industrial applications.

This timer relay incorporates a compact and robust design with dimensions of 48mm (height) x 48mm (width) x 48mm (length), allowing easy panel installation. Its SPST contact configuration supports a 5A contact current, making it reliable for controlling various electrical circuits.

Equipped with a thumbwheel switch for timing adjustments, the multifunction timer supports multiple timing functions, such as interval timing and cumulative timing. The timer is IP66 rated, providing excellent protection against dust and water ingress, suitable for demanding industrial environments.

Operating reliably over a temperature range from -10°C to 55°C, the H5CX series timer ensures consistent performance under varying conditions. The isolated power supply reduces interference, enhancing safety and protecting the device from incorrect wiring damage.

Compact size for space-saving panel mounting. Dual supply capability: 24 V dc and 24 V ac. Multifunction timer with adjustable settings. Robust IP66 protection rating. Wide operating temperature range for harsh conditions.

11-pin terminal for straightforward wiring. Compliance with EN, UR, and CSA safety standards. Reliable for industrial automation and equipment maintenance.

This timer relay excels in industrial automation processes requiring precise control of machinery operation times, interval functions, and cumulative timing. It is also effective in electrical equipment maintenance and controlling operational cycles in HVAC and manufacturing systems.

Explore more from the Omron timer relay series to meet your automation and control requirements with durability and accuracy. Choose Omron H5CX-A11SD-N for dependable Timer Relay performance in your industrial and electrical applications at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a time range from 0.001 seconds to 9999 hours, allowing for precise timing control in various applications.

The timer relay has a single-pole, single-throw (SPST) contact configuration, which supports a contact current of up to 5A.

It operates on both 24 V dc and 24 V ac supply voltages, providing flexibility for different electrical systems.

This model has an IP66 rating, ensuring it is dust-tight and resistant to water ingress, suitable for industrial environments.

The timer relay has compact dimensions of 48mm x 48mm x 48mm, making it suitable for panel mounting in limited spaces.

Timing adjustments are made using an adjustable thumbwheel switch, allowing for easy and precise setting of timing functions.

It operates reliably within a temperature range of -10°C to 55°C, ensuring consistent performance under varying environmental conditions.

This timer relay complies with EN, UL Recognized (UR), and CSA standards, ensuring it meets safety and performance requirements.

It features an 11-pin terminal type, facilitating straightforward installation and wiring for users.

This model is effective in industrial automation processes, equipment maintenance, and controlling operational cycles in HVAC and manufacturing systems.

The H5CX timer relay supports multiple timer functions, allowing for versatile timing applications such as interval and cumulative timing.

This timer relay is manufactured in India, contributing to its availability in various markets.
