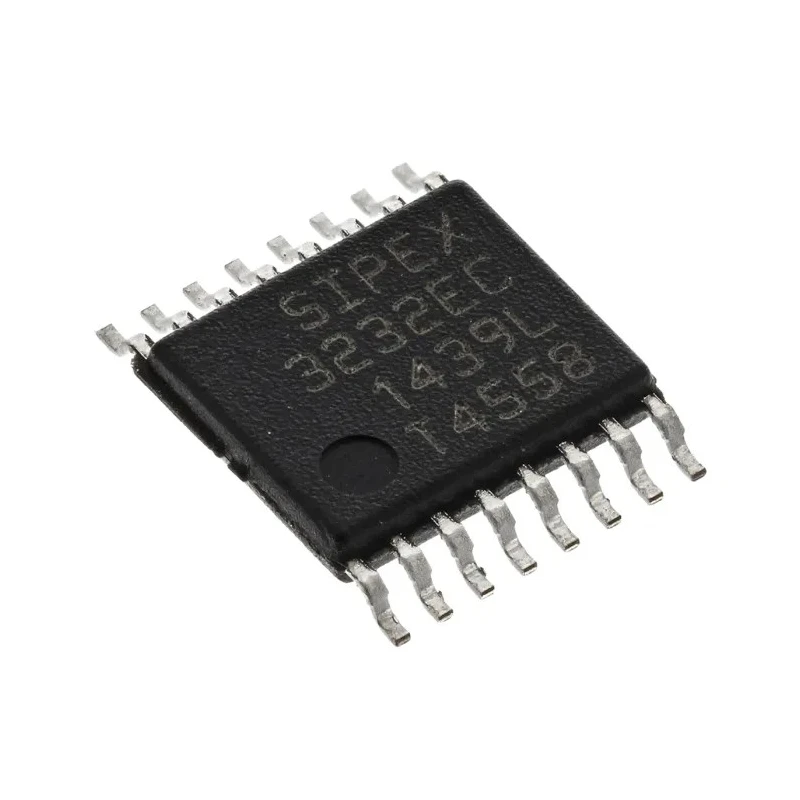

MaxLinear 2-Channel Line Transceiver TTL Inverting 16-Pin TSSOP SP3232ECY-L
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | SP3232ECY-L |
| Width | 4.5mm |
| Mount Type | Surface |
| Output type | TTL |
| Series | SP3232E |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | 0°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time @ CL | 1ms |
| Supply Current | 1mA |
Key Features
- Operates with a supply voltage range of 3V to 5.5V for versatile applications.
- Features inverting TTL output for effective signal transmission.
- Compact 16-pin TSSOP surface mount package with dimensions 5.1mm x 4.5mm x 1.2mm.
- Supports two channels for line transceiver functionality.
- Designed for operating temperatures ranging from 0°C to 70°C.
- Low supply current consumption of 1mA enhances energy efficiency.
- Maximum propagation delay time at CL is 1ms ensuring timely signal response.
- Ideal for RS-232 serial communication and line interface IC applications.
Product Description
MaxLinear SP3232ECY-L 2-Channel Line Transceiver is a compact, TTL compatible, inverting line transceiver IC in a 16-pin TSSOP package designed to meet a wide range of serial communication needs.
This device operates from a supply voltage as low as 3V up to 5.5V, making it suitable for different power environments. It supports two separate channels, both featuring inverting TTL outputs optimized for RS-232 line driver and receiver applications.
The compact 16-pin TSSOP surface mount package with dimensions 5.1mm length, 4.5mm width, and 1.2mm height allows for space-efficient PCB designs in industrial, automotive, and consumer electronics sectors.
With a maximum propagation delay time of 1ms at typical capacitive load, it ensures quick signal processing, while its supply current of only 1mA helps reduce power consumption in battery-powered equipment.
Designed to operate reliably within the temperature range of 0°C to 70°C, this line transceiver is ideal for various industrial and communication interface applications requiring stable and accurate data transmission.
Operates on 3V to 5.5V supply voltage range for flexibility. Two channel, inverting TTL outputs suit RS-232 communication standards. Compact 16-pin TSSOP package facilitates high-density mounting. Low supply current of 1mA promotes energy-efficient operation.
Supports operating temperatures from 0°C to 70°C for diverse environments. Maximum propagation delay of 1ms ensures timely data communication. Ideal for automotive, industrial, and embedded systems requiring line transceivers.
This MaxLinear SP3232ECY-L line transceiver is a reliable and efficient solution in the semiconductor category, fitting in applications ranging from industrial control systems to communication devices. Explore related semiconductor and line interface IC products on EnvMart for additional options and complementary components.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range of 3V to 5.5V, allowing for versatility in various applications.
This model supports two channels, both featuring inverting TTL outputs optimized for RS-232 communication.
The dimensions of the package are 5.1mm in length, 4.5mm in width, and 1.2mm in height.
The maximum propagation delay time is 1ms at typical capacitive load, ensuring timely signal response.
It has a low supply current consumption of 1mA, which enhances energy efficiency in applications.
The operating temperature range is from 0°C to 70°C, making it suitable for various environments.
It provides inverting TTL output, which is effective for signal transmission in communication applications.
The input type is single-ended, which is typical for line transceiver applications.
The logic family is CMOS/TTL, ensuring compatibility with a wide range of digital circuits.
This model uses a surface mount type, allowing for high-density PCB designs.
It is ideal for RS-232 serial communication and line interface IC applications in various sectors including industrial and automotive.
The country of origin for the SP3232ECY-L is India.
