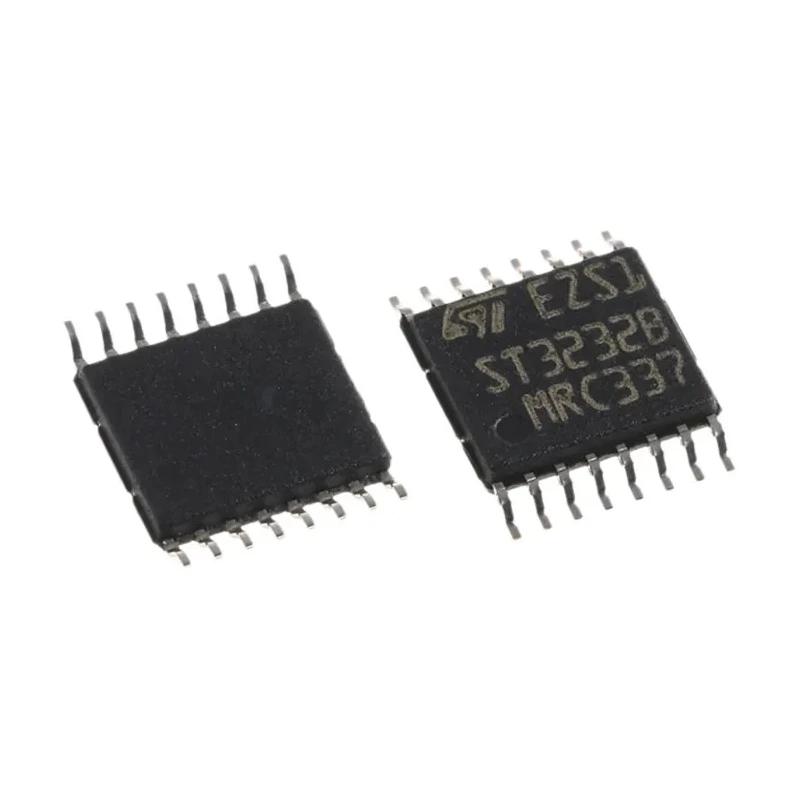

STMicroelectronics 2-Channel Line Transceiver CMOS/TTL Logic Function, Differential Output, 16-Pin TSSOP ST3232BTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | ST3232BTR |
| Width | 4.5mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | ST3232B |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 200ns |
| Supply Current | 2mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Operates with a supply voltage range from 3V to 5.5V.
- Features two communication channels supporting RS-232 voltage levels.
- Surface mount device in compact 16-pin TSSOP package for space-saving designs.
- High speed with a maximum propagation delay of 200 nanoseconds at capacitive load.
- Wide operating temperature range from -40°C to 85°C for industrial applications.
- Low supply current of 2mA ensures energy-efficient operation.
- Outputs a differential signal translating single-ended inputs to RS-232 levels.
- Compliant with standard CMOS/TTL logic family for broad compatibility.
Product Description
STMicroelectronics ST3232BTR is a 2-channel line transceiver IC designed for differential signaling applications within electronic and communication systems. It operates on CMOS/TTL logic levels and is delivered in a compact 16-pin TSSOP surface mount package, ideal for high-density circuit layouts.
The transceiver supports a supply voltage ranging from 3V minimum to 5.5V maximum, accommodating various system power requirements. Its architecture provides single-ended input signals converted to differential outputs suitable for RS-232 line levels, enhancing transmission integrity over cables.
Featuring a maximum propagation delay of 200 nanoseconds at a capacitive load, the ST3232BTR allows for high-speed data communication. The device maintains efficient power consumption with a supply current of only 2mA and operates reliably in harsh environments with an operating temperature range between -40°C and 85°C.
This line transceiver is designed to interface between logic circuits and RS-232 communication lines, often used in instrumentation, industrial automation, and embedded system applications. Its surface mount 16-pin TSSOP casing provides minimal height and board footprint, simplifying installation in compact systems.
Operates at 3V to 5.5V supply voltage for flexible application use. Two independent channels accommodate RS-232 communication. Single-ended input to differential output conversion enhances signal robustness. 16-pin TSSOP package allows for compact surface mounting on PCB.
Supports operation over a wide temperature range for industrial usage. Low power consumption optimizes energy efficiency in designs. Typical propagation delay time of 200ns ensures fast data transfer. Compatible with standard CMOS/TTL logic for easy integration.
Excellent for use in electronic components, power connectors, and semiconductor applications.
The ST3232BTR line transceiver by STMicroelectronics provides a reliable solution for electronic communication interface demands in industrial and commercial devices. It is part of the ST3232B series renowned for high performance and quality manufacturing standards.
Explore various Line Transceiver ICs from STMicroelectronics to meet your semiconductor and interface electronics requirements at EnvMart.
