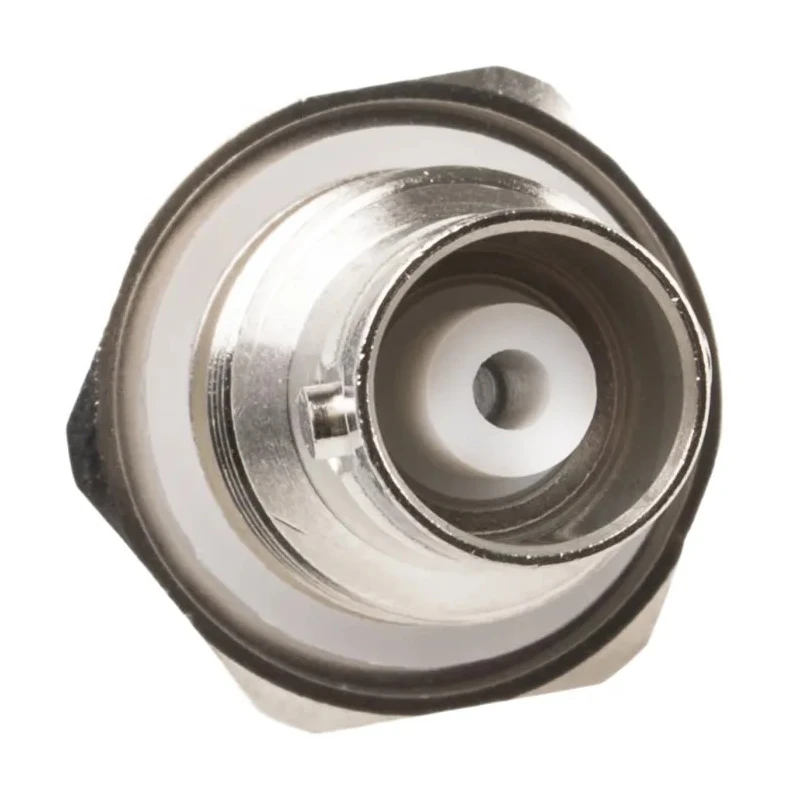

TE Connectivity BNC Series Coaxial Connector Panel Mount Female, 50 Ω, Straight Body, Crimp Termination 1-1337548-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG174A/U, RG188A/U, RG316/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Constructed with nickel plated brass body providing durability and corrosion resistance.
- Features gold plated brass contact material ensuring reliable electrical connection.
- Operates at frequencies up to 4 GHz suitable for RF applications.
- Compatible with RG174A/U, RG188A/U, and RG316/U cable types with bulkhead mounting.
- Temperature range from -65°C to 165°C supports harsh environments.
- Termination type is crimp, facilitating secure cable attachment.

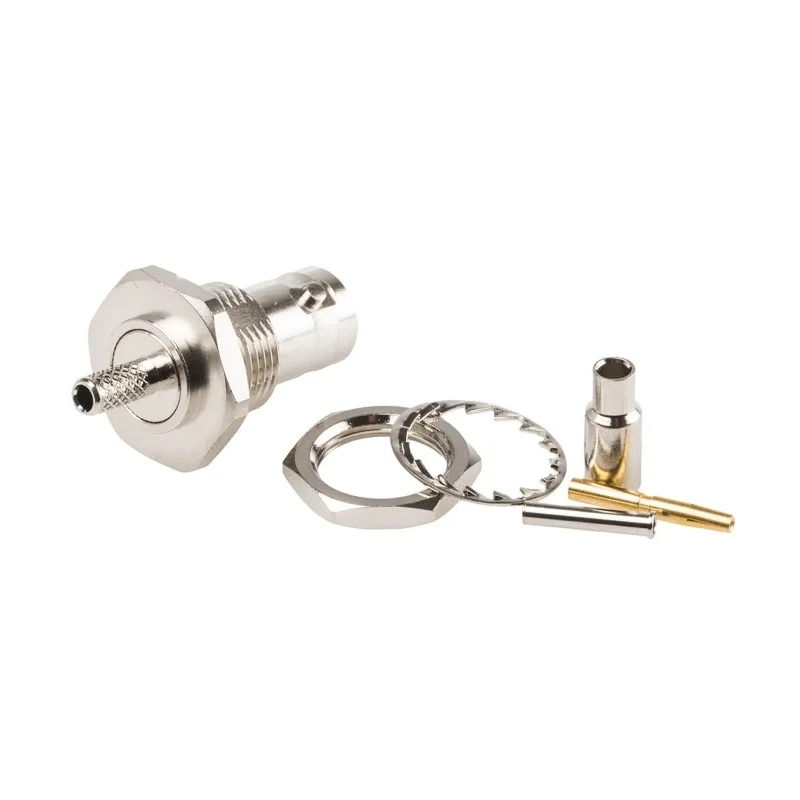

- Includes jam nut, lockwasher, and gasket for panel mounting stability.
Product Description
TE Connectivity 1-1337548-0 BNC Series Coaxial Connector is a high-quality panel mount female BNC connector designed for RF coaxial applications requiring 50 Ω impedance. The straight body style allows for efficient cable routing and a secure crimp termination.
This connector features a nickel plated brass body which offers excellent durability and resistance to environmental factors, complemented by a gold plated brass contact for superior conductivity and corrosion resistance. It is suitable for use with popular RF cable types such as RG174A/U, RG188A/U, and RG316/U, making it versatile for various industrial and laboratory applications.
The operating frequency of up to 4 GHz makes this connector ideal for high-frequency signal transmission. It supports a wide operating temperature range from -65°C to 165°C, ensuring reliable performance under extreme thermal conditions often found in telecommunications, broadcasting, and test instrumentation environments.
Mounting is facilitated via a bulkhead panel mount arrangement with included hardware such as jam nut, lockwasher, and gasket, providing a stable and secure fit within panels. The connector features dual crimp termination allowing strong cable retention and excellent electrical continuity.
Nickel plated brass body for strong mechanical stability. Gold plated brass contacts for exceptional conductivity. Panel mount design with bulkhead for easy installation. Compatible with RG174A/U, RG188A/U, and RG316/U cables.
Operating frequency range up to 4 GHz for RF applications. Operating temperature from -65°C to 165°C for harsh environments. Straight orientation for standard cable routing. Normal polarity and female connector gender.
This TE Connectivity connector serves diverse industries including telecommunications, electronic test and measurement, broadcasting, and general electronics manufacturing. Its robust construction and precise electrical characteristics ensure dependable RF signal connectivity in commercial and industrial settings.
Explore additional TE Connectivity Coaxial Connectors and accessories to find complete solutions for your RF connector needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This BNC connector operates at frequencies up to 4 GHz, making it suitable for RF applications.
It is compatible with RG174A/U, RG188A/U, and RG316/U cable types, allowing for versatile use in various applications.
The operating temperature range for this connector is from -65°C to 165°C, enabling reliable performance in harsh environments.
This model features crimp termination, which facilitates secure cable attachment and strong retention.
The connector has a nickel plated brass body for durability and corrosion resistance, and features gold plated brass contacts for superior conductivity.
It is designed for panel mount installation, providing a stable and secure fit within panels.
This model has a straight orientation, which allows for efficient cable routing.
The impedance rating of this BNC connector is 50 Ω, which is standard for RF applications.
The connector features a female contact gender, which is suitable for various applications.
Included with the connector are a jam nut, lockwasher, and gasket, which assist in providing mounting stability.
The country of origin for this BNC connector is India.
This connector serves diverse industries including telecommunications, electronic test and measurement, and broadcasting.
