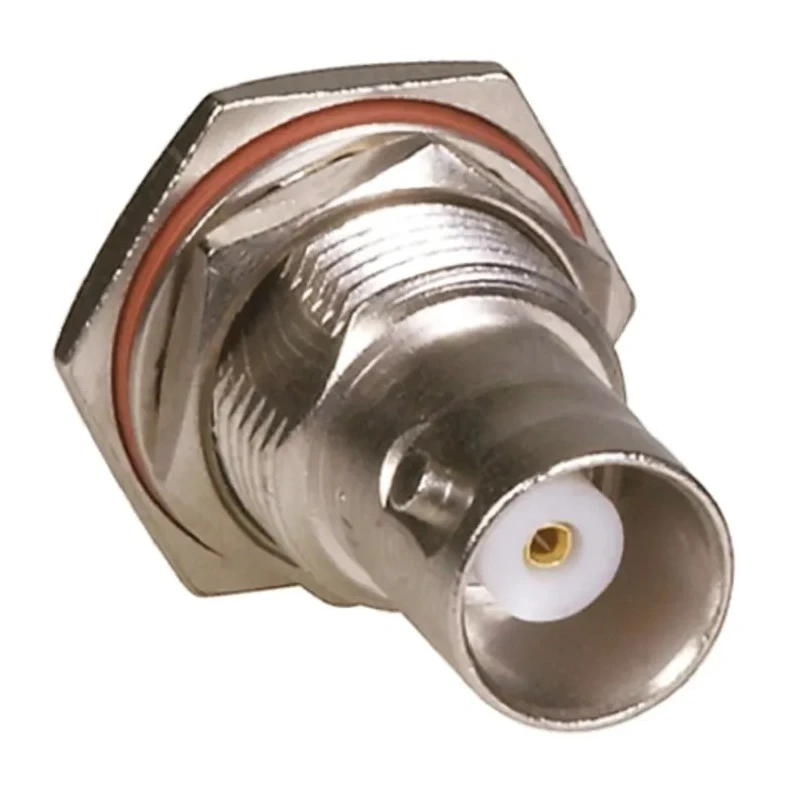

TE Connectivity BNC Series Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Crimp 5225398-7
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Cable Type | RG-174U, RG188/U |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Features panel mount design for secure and stable installation.
- Supports operating frequency up to 4 GHz for high-frequency applications.
- Nickel plated body ensures corrosion resistance and durability.
- Gold plated beryllium copper contact material enhances conductivity and longevity.
- Compatible with RG-174U and RG188/U cable types.
- Operates efficiently within temperature range -55°C to 85°C.
- Includes jam nut, lock washer, and gasket for tight fitting and sealing.
- Offers bayonet locking for secure and quick connection without soldering.
Product Description
TE Connectivity 5225398-7 BNC Series Coaxial Connector is a high-quality panel mount female BNC connector designed for RF coaxial cable applications requiring a 50 Ω impedance. Built with a straight body style and crimp termination, it is engineered to provide superior electrical performance and mechanical stability.
This connector features a nickel-plated body that offers robustness against environmental wear and corrosion. The center conductor is made from beryllium copper with gold plating, ensuring excellent electrical conductivity and long-term reliability. Suitable for use with RG-174U and RG188/U cables, it supports operating frequencies up to 4 GHz, catering to a broad range of electronic, telecommunications, and industrial HF equipment.
Designed to operate in a wide temperature range of -55°C to 85°C, this connector maintains integrity under harsh environmental conditions. The standard size panel mount includes a jam nut, lock washer, and gasket to provide a secure, sealed connection that prevents loosening and protects against dust and moisture ingress.
The crimp termination eliminates the need for soldering, simplifying installation while ensuring a strong insulation grip. The bayonet locking mechanism enhances quick mating and unmating with secure retention, ideal for maintenance and field replacements.
Panel mount female BNC connector with 50 Ω impedance for RF applications. Straight body with nickel plating for enhanced durability and corrosion resistance. Gold plated beryllium copper contacts for superior electrical conductivity.
Compatible with RG-174U, RG188/U coaxial cable types supporting up to 4 GHz frequency. Crimp termination providing secure insulation grip without soldering. Operating temperature range of -55°C to 85°C supports various environments.
Includes jam nut, lock washer, and gasket for tight panel mounting and sealing. Reliable bayonet locking mechanism for quick and secure connections.
This connector is widely used in industrial, telecommunications, laboratory, and electronic manufacturing applications requiring dependable RF signal transmission with minimal loss and robust physical connection. It supports demanding environments including outdoor and mobile equipment installations.
Browse the Electronics Components categories at EnvMart for more RF Coaxial Connectors and related connector solutions from TE Connectivity and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This BNC connector supports an operating frequency of up to 4 GHz, making it suitable for high-frequency applications.
It is compatible with RG-174U and RG188/U cable types, ensuring versatility in various applications.
The connector operates efficiently within a temperature range of -55°C to 85°C, suitable for harsh environments.
The center conductor is made from beryllium copper and is gold plated to enhance conductivity and longevity.
This model features crimp termination, which provides a secure insulation grip without the need for soldering.
It includes a jam nut, lock washer, and gasket to ensure a tight fitting and sealing during installation.
The body of this connector is nickel plated, which provides corrosion resistance and durability.
This connector features a female contact gender, suitable for connecting to male counterparts.
It is designed for panel mount installation, ensuring secure and stable placement.
The connector has an impedance rating of 50 Ω, making it suitable for RF applications.
This model has a straight orientation, facilitating easy connection in various setups.
