| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 16.74mm |
| Model | 770904-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |

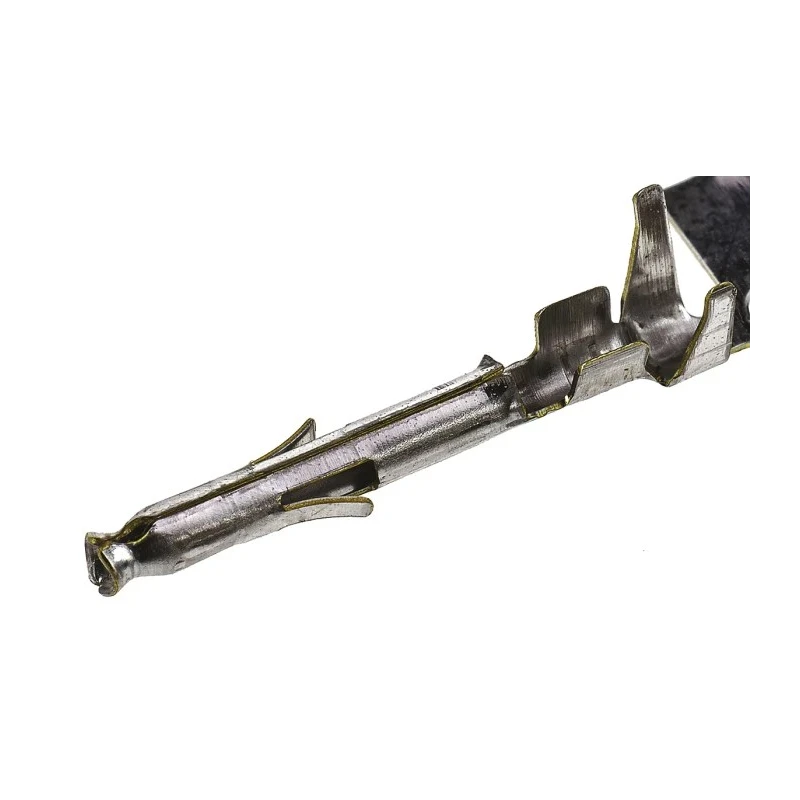

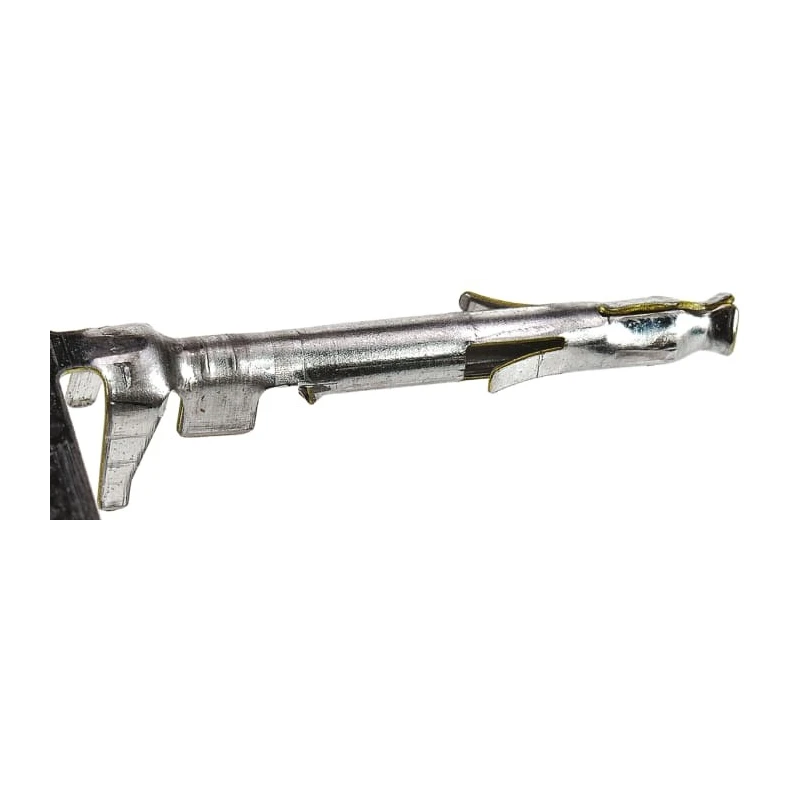

TE Connectivity 770904-1 Mini-Universal MATE-N-LOK Series female crimp terminal is specially engineered for use in electronic component and power connector applications requiring robust and reliable wire-to-wire connections. Featuring a brass contact material with tin plating, this connector terminal supports a continuous current rating of 3 Amperes while ensuring a low maximum contact resistance of 20 milliohms. The crimp termination design allows secure attachment to wire sizes ranging from 0.3 mm² (22 AWG) to 0.9 mm² (18 AWG), making it versatile for a range of wiring requirements.
This terminal has an operating temperature range from -30°C to 105°C, supporting usage in demanding industrial, manufacturing, and electrical system environments that require durability under thermal stress. With a compact contact length of 16.74 mm, it facilitates efficient PCB layouts where space constraints are critical.
The Mini-Universal MATE-N-LOK series is known for providing consistent high-quality connections in electronics assembly, automation, and control gear applications. The tin-plated surface reduces corrosion risk, enhancing long-term reliability in harsh operating conditions.
Ideal for electrical harness assembly and repair, this female crimp terminal integrates seamlessly with the corresponding Mini-Universal MATE-N-LOK connector housings, simplifying installation and maintenance workflows.
Constructed with brass contact material to ensure mechanical strength. Tin plating improves conductivity and corrosion resistance. Compatible with wire sizes from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²). Rated for currents up to 3 Amperes.
Crimp termination enables secure and reliable electrical connections. Operating temperature range from -30°C to 105°C suitable for industrial environments. Low contact resistance of 20 milliohms ensures efficient power transmission.
Compact length of 16.74 mm allows optimal PCB design use.
Use TE Connectivity Mini-Universal MATE-N-LOK series connectors in electronic manufacturing, power management systems, and control applications to ensure robust, efficient and compliant connectivity solutions. Browse EnvMart for a comprehensive selection of TE Connectivity connectors and compatible accessories for your industrial and electronics projects.
