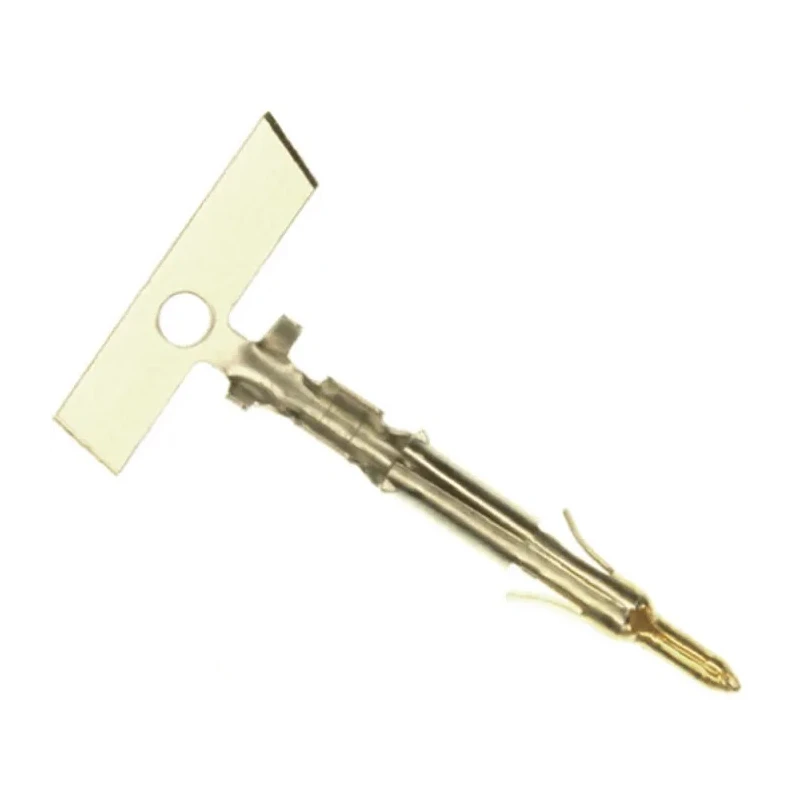

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current 22-18 AWG Wire 170360-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 170360-3 |
| Gender | Male |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- This crimp terminal is made with brass contact material and gold plating for reliable conductivity.
- It supports minimum wire size of 22 AWG (0.3 mm²) and maximum wire size of 18 AWG (0.8 mm²).
- The operating temperature range extends from -20°C to 105°C for varied environments.
- Termination is by crimp, ensuring strong and durable contact.
- Maximum contact resistance is 10 milliohms, assuring efficient signal transmission.
- Compatible with Mini-Universal MATE-N-LOK connector housings to ensure proper fit and function.
- Ideal for electronics, industrial wiring, and PCB connector applications.
Product Description
The TE Connectivity 170360-3 Male Crimp Terminal from the Mini-Universal MATE-N-LOK Series offers a high-quality solution for electrical interconnections requiring a 7 amp current rating. This crimp terminal is constructed using brass contact material with gold contact plating, which enhances corrosion resistance and conductivity.
It is designed to accommodate wires ranging from 22 AWG (0.3 mm²) to 18 AWG (0.8 mm²), providing versatility for various wiring needs. The product operates reliably within a temperature range of -20°C to 105°C, suitable for industrial, commercial, and electronic environments.
Termination is via crimp, delivering secure and lasting connections, while the maximum contact resistance is limited to 10 milliohms to maintain signal integrity. This component fits specifically with Mini-Universal MATE-N-LOK connector housings, making it a vital part of the connector system in PCB and wire housing assemblies.
These male crimp terminals are essential in electronic component manufacturing, power connectors setups, and general electrical engineering applications, ensuring efficient flow of current and robust mechanical and electrical connection.
This crimp terminal features brass contact material with gold plating. Supports wire sizes from 22 AWG to 18 AWG for diverse wiring needs. Limits maximum contact resistance to 10 milliohms to maximize conductivity. Operates reliably between -20°C and 105°C in various environmental conditions.
Designed for use with Mini-Universal MATE-N-LOK connector housings. Termination is by crimping for secure electrical connection. Suitable for industrial, electronics, and PCB connector applications. Explore our full range of high-quality connectors and crimp terminals from TE Connectivity in the Electronics & Electricals category at EnvMart.
Explore more products in our PCB Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a current rating of 7A, making it suitable for various electrical interconnections.
It supports a minimum wire size of 22 AWG (0.3 mm²) and a maximum wire size of 18 AWG (0.8 mm²).
The operating temperature range extends from -20°C to 105°C, allowing it to function in diverse environments.
Termination is achieved by crimping, which ensures a strong and durable electrical connection.
The maximum contact resistance is limited to 10 milliohms, ensuring efficient signal transmission.
Yes, it is designed for use with Mini-Universal MATE-N-LOK connector housings, ensuring proper fit and function.
The terminal is made with brass contact material and features gold plating for enhanced conductivity and corrosion resistance.
This model is ideal for electronics, industrial wiring, and PCB connector applications.
Specific dimensions and weight details are not provided in the available product data.
The crimp terminal is manufactured in India.
It belongs to the Mini-Universal MATE-N-LOK Series, which is known for its reliable electrical connections.
This terminal is male, designed for use in various electrical interconnections.
