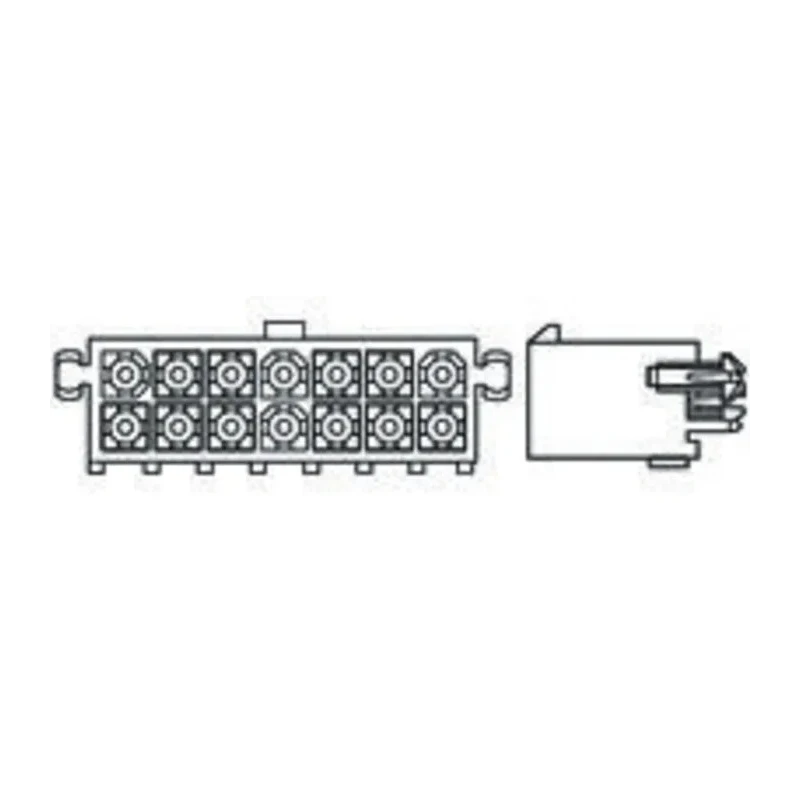

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header, 16 Contacts, 4.14 mm Pitch, 2 1-794068-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The connector features 16 male contacts arranged in 2 straight rows.
- It has a pitch of 4.14 mm and supports a voltage of up to 600V.
- Constructed with a nylon housing and brass contacts plated with tin for durability.
- Designed for through-hole PCB mounting ensuring secure solder joint connections.
- Rated for a current of 9.5A and operating temperature range from -20°C to 105°C.
- The housing includes a positive locking latch mechanism and board locks for retention.
- Shrouded design provides additional mechanical protection and reliable mating.
Product Description
TE Connectivity 1-794068-0 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header is engineered for wire-to-board electronic connectivity with precise specifications and robust construction.
This PCB header features 16 male contacts arranged in two rows with a 4.14 mm pitch, making it suitable for compact electronic device assemblies that require reliable wire connections.
The housing is made from white UL94V-0 nylon providing flame retardance and chemical resistance, while the brass contacts with tin plating ensure excellent conductivity and corrosion resistance. Designed for through-hole mounting, this connector guarantees durable soldered connections on printed circuit boards.
The connector system includes a positive locking latch mechanism and board locks for secure mating and mechanical stability during operation. Its shrouded build offers added protection, preventing accidental disconnects and ensuring connector integrity in demanding industrial and commercial electronic environments.
Rated for a maximum current of 9.5A and a voltage of 600V, this connector supports operating temperatures from -20°C to 105°C, making it versatile for various electronic, industrial, and electrical applications.
The connector features 16 male contacts arranged in 2 straight rows. It has a pitch of 4.14 mm and supports a voltage of up to 600V. Constructed with a nylon housing and brass contacts plated with tin for durability. Designed for through-hole PCB mounting ensuring secure solder joint connections.
Rated for a current of 9.5A and operating temperature range from -20°C to 105°C. The housing includes a positive locking latch mechanism and board locks for retention. Shrouded design provides additional mechanical protection and reliable mating.
This connector series is widely used in electronic components, power & connectors assemblies, and is suitable for radio, telecommunications, automotive, and industrial electronic boards.
Explore the wide range of PCB Connectors and wire housings available in the TE Connectivity product line within the EnvMart catalog for precise, durable electrical connections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 600V.
This connector features 16 male contacts arranged in two rows.
It is rated for a maximum current of 9.5A.
The pitch of the contacts is 4.14 mm.
The housing is made from nylon, specifically UL94V-0 rated for flame retardance and chemical resistance.
Yes, this model is designed for through-hole PCB mounting, ensuring secure solder joint connections.
The operating temperature range is from -20°C to 105°C.
Yes, it includes a positive locking latch mechanism and board locks for retention.
This connector uses solder termination type.
The contacts are made of brass and are plated with tin for conductivity and corrosion resistance.
It is suitable for various electronic, industrial, and electrical applications, including telecommunications and automotive boards.
The country of origin for this connector is India.
