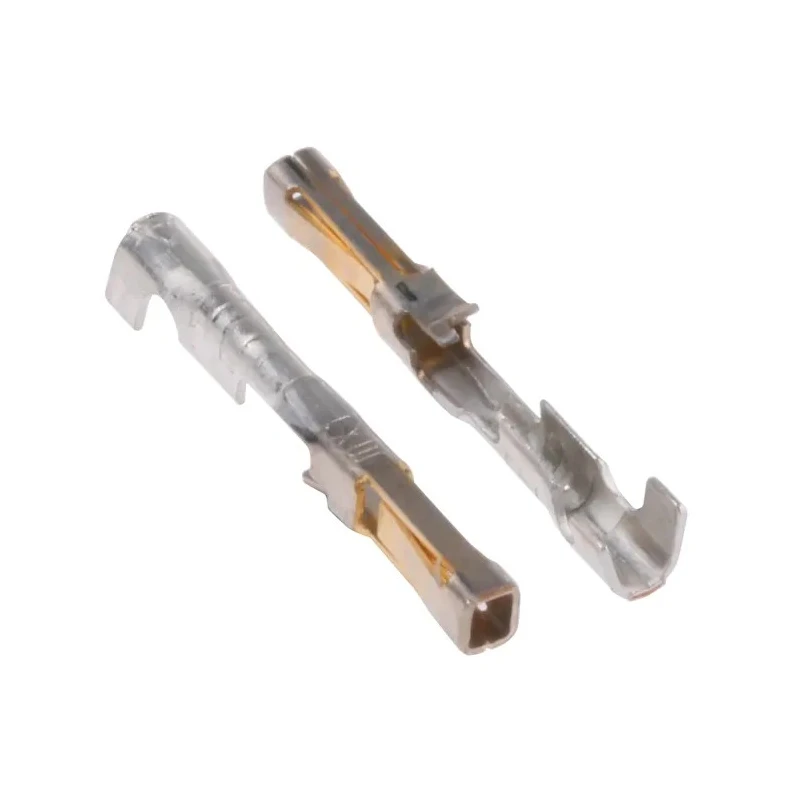

Molex 70058 Series Female Crimp Terminal 3A Current Gold Plating 30 AWG Min Crimp 24 AWG Max 16-02-0098
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 15mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Designed for use with SL connector housing for reliable electrical connections.
- Gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance.
- Supports wire sizes from 30 AWG minimum to 24 AWG maximum for versatile application.
- Rated for a current capacity of 3 amperes.
- Operational temperature range from -40°C to 105°C suitable for diverse applications.
- Crimp termination type offers secure and efficient wire connection.
- Manufactured in the United States ensuring high quality and standards compliance.
Product Description
Molex 16-02-0098 is a female crimp terminal belonging to the 70058 series, engineered to provide reliable electrical connections with a current rating of 3A. It features gold-plated contacts made from phosphor bronze to ensure excellent conductivity and resistance to corrosion.
This terminal is designed to be used with SL connector housings, offering secure crimp termination for wire sizes ranging from 30 AWG minimum to 24 AWG maximum, which corresponds to 0.05 mm² to 0.2 mm² cross-sectional area.
The operating temperature range from -40°C to 105°C makes it suitable for various environments including automotive, commercial vehicles, consumer electronics, portable devices, medical equipment, communications, and networking applications. The crimp termination type enhances connection stability and production efficiency.
As part of Molex's 70058 series, these terminals are compatible with other series such as 71851 and 70021, and can also interface with 70450 series housings, providing flexibility in connector design.
Designed for use with SL connector housing for reliable electrical connections. Gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance. Supports wire sizes from 30 AWG minimum to 24 AWG maximum for versatile application.
Rated for a current capacity of 3 amperes. Operational temperature range from -40°C to 105°C suitable for diverse applications. Crimp termination type offers secure and efficient wire connection. Manufactured in the United States ensuring high quality and standards compliance.
This Molex female crimp terminal is ideal for industrial, automotive, medical, and communication electronics where reliable wire termination and electrical performance are critical. Its compatibility with multiple series housings allows for flexible design integration.
Explore the Electronics & Electricals category at EnvMart for a comprehensive range of components, connectors, and Crimp Terminals suited for professional and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal is rated for a current capacity of 3 amperes.
It supports wire sizes from 30 AWG minimum to 24 AWG maximum, corresponding to 0.05 mm² to 0.2 mm² cross-sectional area.
The operating temperature range is from -40°C to 105°C, making it suitable for various environments.
This unit features a crimp termination type, which provides a secure and efficient wire connection.
It is designed for use with SL connector housings, ensuring reliable electrical connections.
The contacts are made from phosphor bronze and are gold-plated to enhance conductivity and corrosion resistance.
Yes, it is compatible with 70058 and 71851 series, and can also interface with 70450 series housings.
The maximum contact resistance is 15 mΩ, ensuring efficient electrical performance.
This terminal is manufactured in the United States, ensuring high quality and standards compliance.
It is suitable for various applications including automotive, commercial vehicles, consumer electronics, medical equipment, and networking.
This crimp terminal is female, designed to connect with compatible male connectors.
Gold plating on the contacts provides excellent conductivity and resistance to corrosion, enhancing the terminal's performance.
