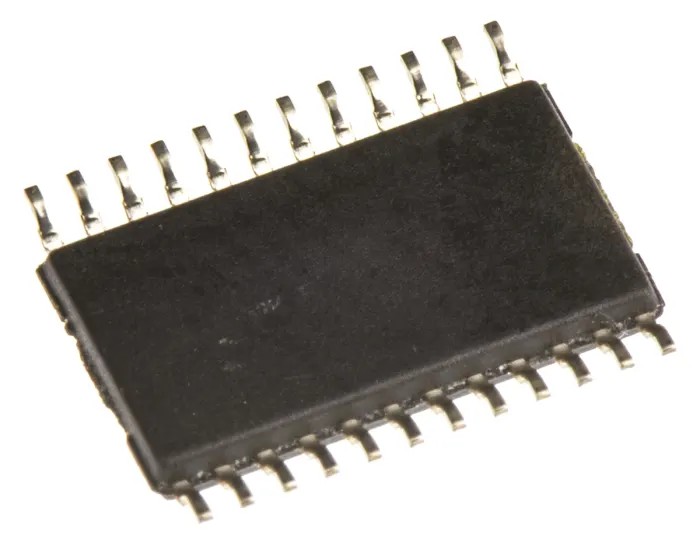

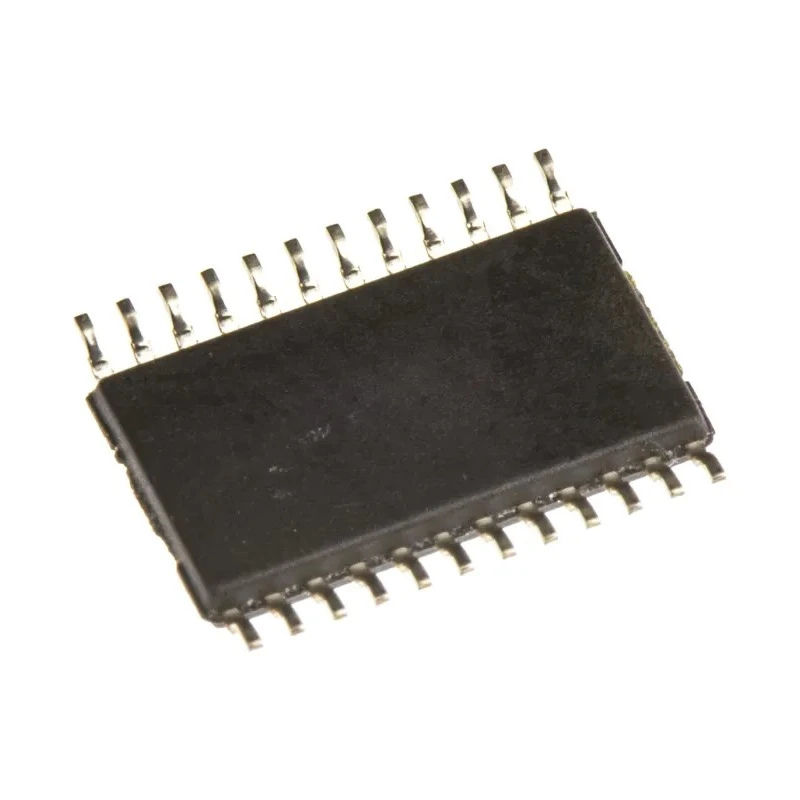

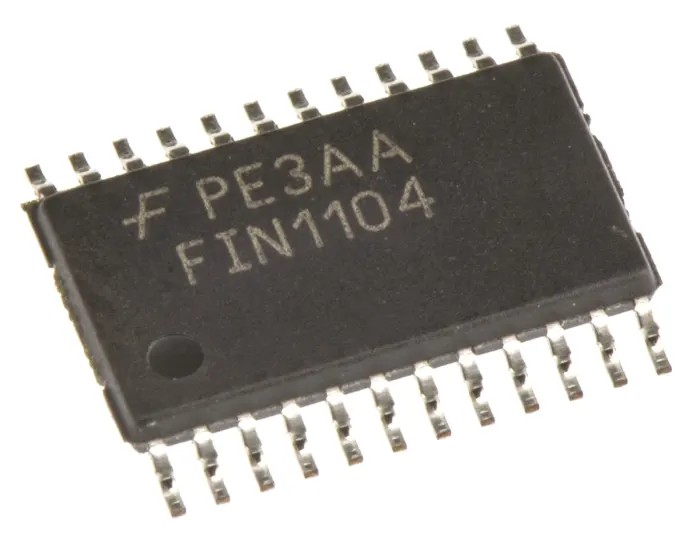

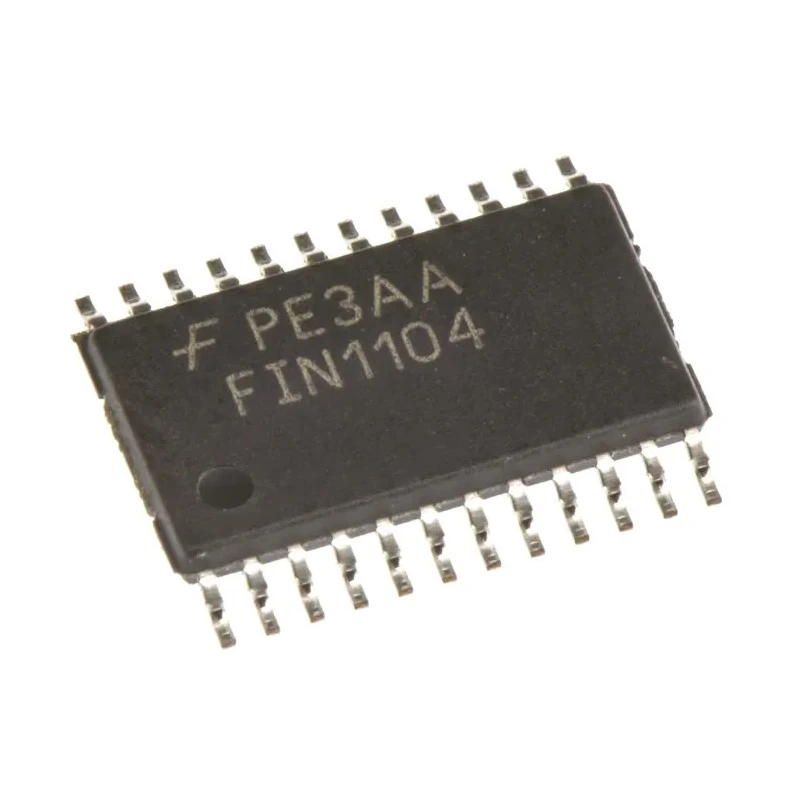

onsemi Repeater IC 4 LVDS LVDS, 24-Pin TSSOP FIN1104MTC
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 950μm |
| Length | 7.8mm |
| Model | FIN1104MTC |
| Mount Type | Surface |
| Output type | LVDS |
| Series | FIN1104 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Repeater |
| Minimum Operating Temperature | -40°C |
| Pin Count | 24 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Transmission Data Rate | 800Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- The IC features 4 drivers and 4 receivers for efficient LVDS signal repeater functionality.
- Its TSSOP package with 24 pins allows compact surface mounting on PCB designs.
- Operates within a supply voltage range of 3V to 3.6V for low power consumption.
- Supports differential input thresholds of ±100mV, ensuring precise signal integrity.
- Designed for operation in temperature ranges from -40°C to 85°C, suitable for industrial applications.
- Provides Electrostatic Discharge (ESD) protection for enhanced device reliability.
- Compact dimensions of 7.8mm length and 950μm height enable integration in dense electronics.
- Ideal for use in interface communications such as Firewire, SATA, and SCSI applications.
Product Description
onsemi FIN1104MTC Repeater IC 4 LVDS LVDS, 24-Pin TSSOP is a new, surface mount semiconductor designed to serve as a reliable LVDS (Low Voltage Differential Signaling) repeater device. This IC supports high-speed differential communication at transmission data rates up to 800Mbps, facilitating robust and efficient signal integrity in complex electronic systems.
The FIN1104MTC features 4 channels of drivers and receivers, enabling it to repeat signals without degradation, making it indispensable in applications requiring long-distance differential data transmission. The device operates on a supply voltage ranging between 3V and 3.6V, highlighting its low power consumption and suitability for compact embedded systems.
Engineered with a TSSOP 24-pin package, it ensures easy surface mounting and minimal PCB footprint, with physical dimensions including a length of 7.8mm and height of 950μm. Its differential input high and low threshold voltages of 100mV and -100mV ensure precise signal discrimination, crucial in maintaining signal fidelity in noisy environments.
Designed to operate reliably within industrial temperature ranges of -40°C to 85°C and featuring built-in Electrostatic Discharge (ESD) protection, the FIN1104MTC offers durability and robustness required for demanding environments.
Commonly applied in interfaces such as Firewire, SATA, and SCSI, this device is essential in improving communication efficiency and extending signal reach in industrial, commercial, and computing electronics systems.
The IC includes 4 drivers and 4 receivers for balanced LVDS signal amplification. Its small size and surface mount design simplifies integration into modern PCBs. Supports an 800Mbps transmission data rate suitable for high-speed interfaces.
Operates within a safe voltage range from 3V to 3.6V lowering power dissipation. Built to withstand operating temperatures from -40°C up to 85°C for industrial reliability. ESD protection safeguards against electrostatic damage, increasing longevity.
Perfect for extending LVDS signals in communications and data transfer applications. Explore more semiconductor components at EnvMart to enhance your electronic design and manufacturing projects.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum transmission data rate of this model is 800Mbps, enabling high-speed differential communication.
It operates within a supply voltage range of 3V to 3.6V, which helps in maintaining low power consumption.
This unit has a length of 7.8mm and a height of 950μm, allowing for compact integration on PCBs.
It features 4 drivers and 4 receivers, facilitating efficient LVDS signal repeater functionality.
The FIN1104MTC is designed to operate within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
This IC comes in a TSSOP package type with 24 pins, designed for surface mounting.
It supports differential input high and low threshold voltages of 100mV and -100mV, respectively, ensuring precise signal integrity.
This model includes built-in Electrostatic Discharge (ESD) protection, enhancing device reliability against electrostatic damage.
It is commonly applied in interface communications such as Firewire, SATA, and SCSI, improving communication efficiency.
The input and output type of this repeater IC is LVDS (Low Voltage Differential Signaling).
This model has 4 elements per chip, consisting of both drivers and receivers for balanced signal amplification.
The FIN1104MTC is part of the FIN1104 series, specifically designed for LVDS applications.
