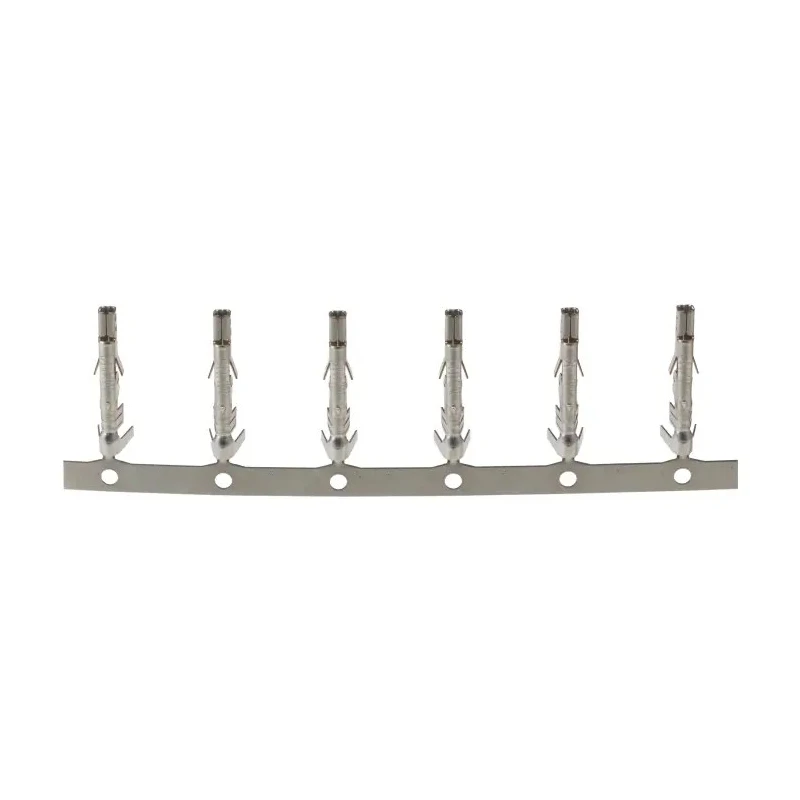

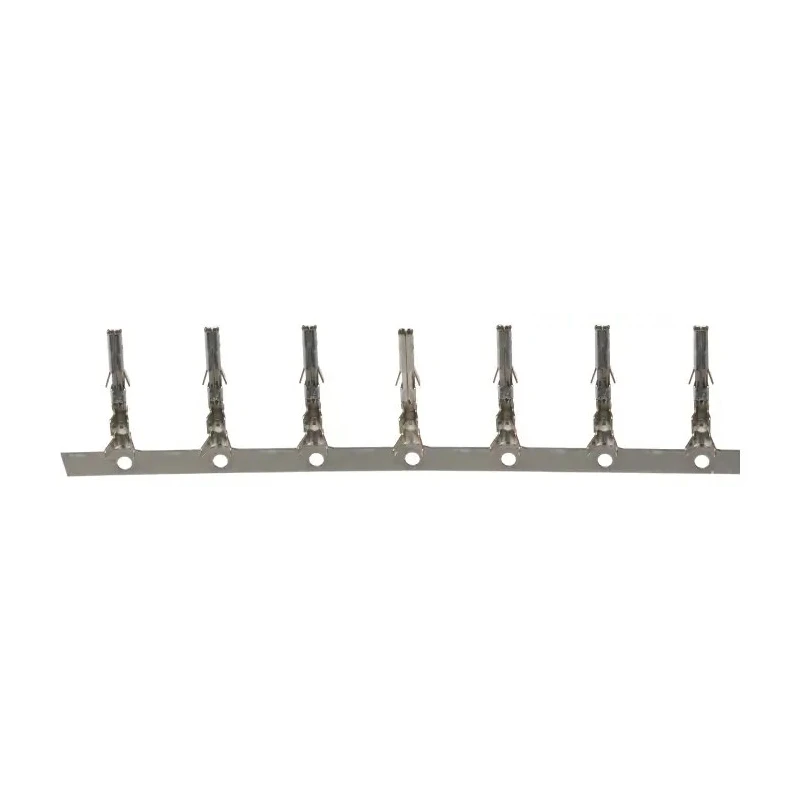

Molex 5556 Series Female Crimp Terminal, 22 AWG Min Crimp, 16 AWG Max, Tin Plated Phosphor Bronze 9A Current 39-00-0079
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
| Molex 5556 Series Female Crimp Terminal, 16 AWG Min Crimp, 16 AWG MaxBrand | Molex |
Key Features
- Constructed with tin-plated phosphor bronze for excellent corrosion resistance.
- Rated for a maximum current of 9 amperes to handle power distribution needs.
- Designed for Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
- Supports crimp termination for secure and durable wire connections.
- Operates in temperature ranges from -40°C to 105°C for versatile applications.
- Offers low contact resistance of 10 milliohms ensuring efficient electrical conductivity.
- Durable design allows up to 30 mating cycles without performance degradation.
Product Description
The Molex 39-00-0079 5556 Series Female Crimp Terminal is a high-quality electrical connector component designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. This crimp terminal accommodates wire sizes from 22 AWG minimum to 16 AWG maximum, supporting a maximum wire cross-section of 1.3mm². Its construction utilizes phosphor bronze with tin plating, providing enhanced corrosion resistance and reliable electrical performance.
Rated for a maximum current of 9 amperes, this terminal is suitable for power distribution and wire-to-board or wire-to-wire connections in demanding industrial and manufacturing environments. The crimp termination method ensures a strong mechanical and electrical connection, complying with industry standards for reliability.
The terminal maintains a low maximum contact resistance of 10 milliohms for efficient current flow and supports operating temperatures ranging from -40°C to 105°C, enabling use in a variety of thermal conditions.
Designed for durability, this female Crimp Terminal allows up to 30 mating cycles, making it a practical choice for repeated assembly and maintenance operations. Tin plating enhances corrosion resistance. Low contact resistance ensures efficient current flow.
Wide operating temperature range from -40°C to 105°C. Suitable for multiple Mini-Fit connector housings. Supports wire sizes from 22 AWG minimum to 16 AWG maximum. Durable construction allowing up to 30 mating cycles. Crimp termination method provides secure connections.
This product is ideal for industrial, manufacturing, electrical distribution, and commercial applications where reliable crimp contacts are essential. The Molex brand and 5556 series assure quality and compatibility with related connector systems.
Explore more industrial electrical components and connectors in the Electronics & Electricals category on EnvMart to find complementary products and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 9 amperes, making it suitable for power distribution applications.
This female crimp terminal accommodates wire sizes from 22 AWG minimum to 16 AWG maximum, supporting a maximum wire cross-section of 1.3mm².
It is constructed from phosphor bronze with a tin plating, providing enhanced corrosion resistance and reliable electrical performance.
This model is designed to allow up to 30 mating cycles without performance degradation, making it suitable for repeated assembly and maintenance.
It is designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, ensuring compatibility with these systems.
The maximum contact resistance is 10 milliohms, which ensures efficient electrical conductivity.
This terminal uses a crimp termination method, providing secure and durable wire connections.
The country of origin for this crimp terminal is the United States.
This crimp terminal belongs to the Molex 5556 series, which is known for its compatibility with various connector systems.
This crimp terminal is female, designed to connect with male counterparts in the connector system.
This terminal is suitable for industrial, manufacturing, electrical distribution, and commercial applications where reliable crimp contacts are essential.
