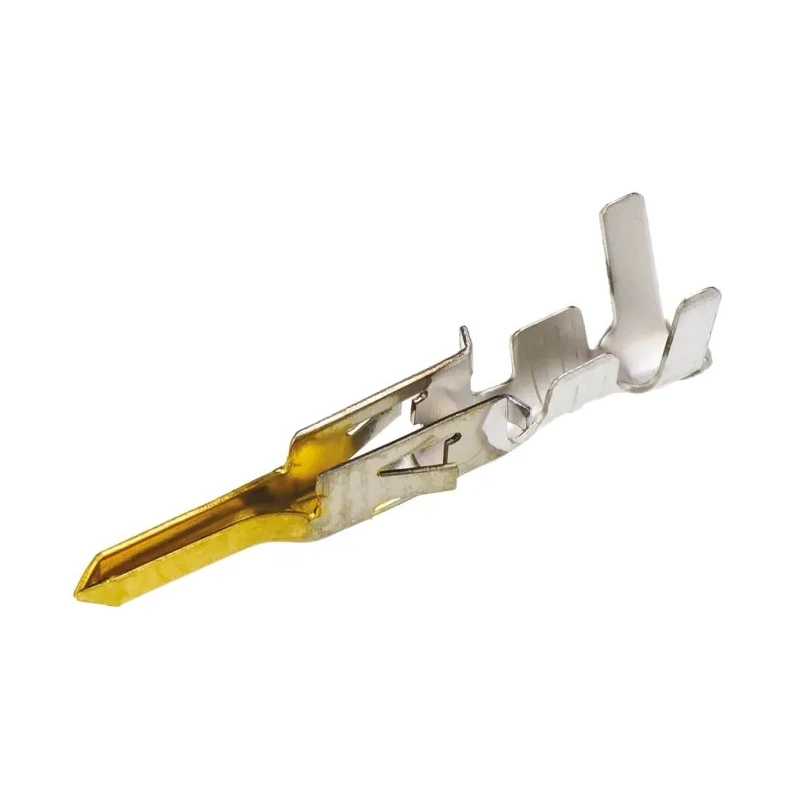

Molex 5558 Series Male Crimp Terminal 9A Current Gold Plated Brass Contact 24 AWG Min, 18 AWG Max 39-00-0430
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Gold plating on brass contact provides excellent conductivity and corrosion resistance.
- Supports wire sizes from 24 AWG minimum to 18 AWG maximum for flexible application.
- Rated for a continuous current of up to 9 amperes for reliable power delivery.
- Crimp termination type ensures secure electrical and mechanical connections.
- Operates effectively within a temperature range of -40°C to 105°C for versatility.
- Maximum contact resistance is 10 milliohms to maintain efficient signal transfer.
- Designed specifically for use with Mini-Fit Jr connector housings to ensure compatibility.
- Manufactured in the United States with durable brass material and gold plating.
Product Description
Molex 39-00-0430 5558 Series Male Crimp Terminal is engineered for reliable electrical connections in power and electronic assemblies. Featuring a robust brass contact with gold plating, it offers excellent conductivity and resistance to oxidation, making it ideal for harsh environments.
This crimp terminal supports wire sizes from 24 AWG (0.2 mm²) minimum to 18 AWG (0.8 mm²) maximum and is rated for a maximum continuous current of 9 amperes, suitable for a variety of electrical power applications. The crimp termination method ensures a secure and mechanically stable connection when used with Mini-Fit Jr connector housings.
Operating temperature ranges from -40 to 105 degrees Celsius, allowing for use in industrial, automotive, communication, and automation environments where temperature fluctuations are common. The terminal maintains a low maximum contact resistance of 10 milliohms, which supports efficient signal and power transmission.
Ideal for use in cable assemblies, electronic equipment, and automation machinery, this male crimp terminal meets the demands of industrial and commercial electrical systems. Its manufacture in the United States ensures strict quality standards and consistency.
Gold plating on brass contact provides excellent conductivity and corrosion resistance. Supports wire sizes from 24 AWG minimum to 18 AWG maximum for flexible application. Rated for a continuous current of up to 9 amperes for reliable power delivery.
Crimp termination type ensures secure electrical and mechanical connections. Operates effectively within a temperature range of -40°C to 105°C for versatility. Maximum contact resistance is 10 milliohms to maintain efficient signal transfer.
Designed for Mini-Fit Jr connector housing compatibility. Manufactured in the United States with durable brass material and gold plating.
This Molex terminal is essential for electrical and electronic manufacturing, providing secure and lasting connectivity solutions in industrial, automotive, communications, and consumer electronics sectors. Explore more high-quality connectors and Crimp Terminals in EnvMart’s electronics components catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum continuous current of up to 9 amperes, ensuring reliable power delivery for various applications.
It supports wire sizes from 24 AWG (0.2 mm²) minimum to 18 AWG (0.8 mm²) maximum, providing flexibility for different wiring needs.
The terminal operates effectively within a temperature range of -40°C to 105°C, making it suitable for a variety of environments.
It utilizes a crimp termination type, which ensures secure electrical and mechanical connections when installed properly.
This model is specifically designed for use with Mini-Fit Jr connector housings, ensuring compatibility and proper fit.
The maximum contact resistance is 10 milliohms, which helps maintain efficient signal transfer during operation.
The terminal features a brass contact with gold plating, providing excellent conductivity and corrosion resistance.
It is manufactured in the United States, adhering to strict quality standards for consistency and reliability.
It is ideal for use in cable assemblies, electronic equipment, and automation machinery, serving various industrial and commercial electrical systems.
This terminal is male gendered, designed to connect with corresponding female connectors in electrical assemblies.
This terminal belongs to the Molex 5558 series, which is known for its reliability in electrical connections.
The gold plating on the brass contact enhances conductivity and provides resistance to corrosion, making it suitable for harsh environments.
