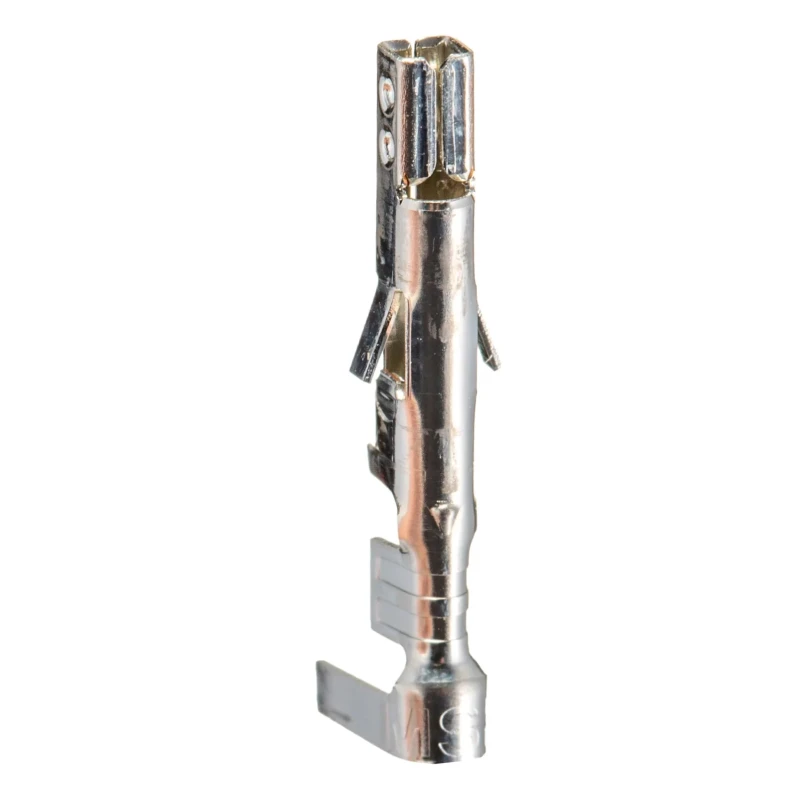

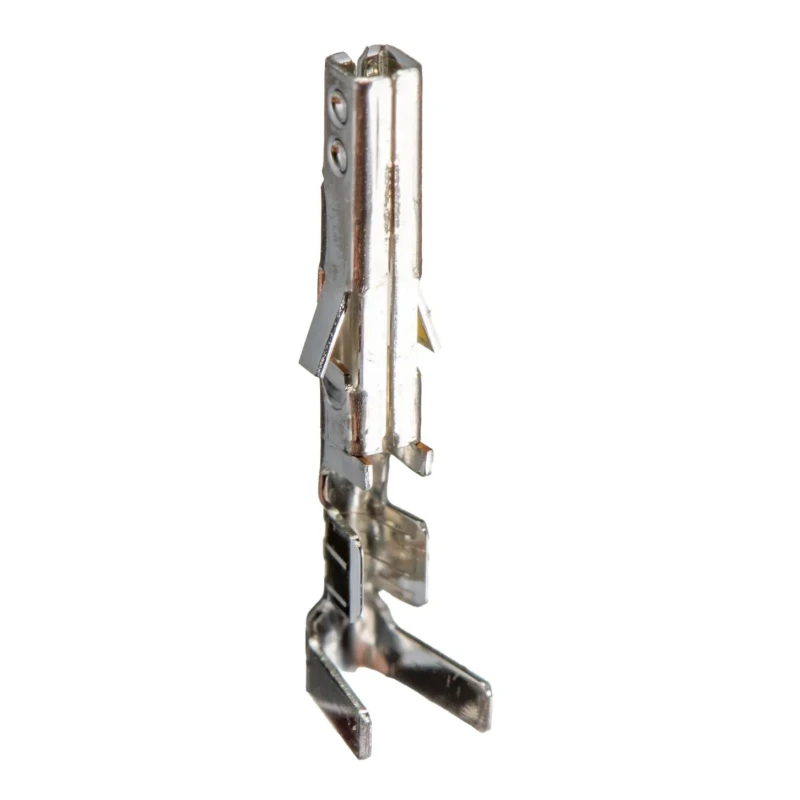

Molex 5556 Series Female Crimp Terminal 24 AWG Min, 18 AWG Max, 9A Current Rating 39-00-0213
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Supports minimum wire size of 24 AWG and maximum wire size of 18 AWG.
- Constructed with phosphor bronze contact material plated with tin for excellent conductivity.
- Rated for maximum operating temperature of 105°C and minimum of -40°C.
- Features a reliable crimp termination method ensuring secure electrical connections.
- Designed to mate with Mini-Fit Jr. male terminals for versatile compatibility.
- Ideal for automotive, industrial automation, and electronic equipment applications.
Product Description
The Molex 5556 Series Female Crimp Terminal model 39-00-0213 is a high-quality connector designed to provide secure and reliable connections in power and electronic applications. It is compatible with Mini-Fit Jr., TPA, and BMI connector housings and supports wire sizes ranging from 24 AWG (0.2 mm²) minimum to 18 AWG (0.8 mm²) maximum. The terminal is rated for a maximum current of 9 amps, making it well-suited for moderate current load applications.
Constructed from phosphor bronze with tin plating, this terminal offers excellent conductivity and resistance to oxidation, ensuring durability and consistent performance over time. It operates effectively in harsh environments with an operating temperature range from -40°C to +105°C.
The crimp termination method employed provides a secure mechanical and electrical connection, reducing the risk of electrical failure. This terminal mates securely with Mini-Fit Jr. male terminals, providing versatility in electronic and automotive applications.
This connector is ideal for use in automotive systems, industrial automation, consumer electronics, medical equipment, and communications networking, where reliable power distribution and connectivity are critical.
Reliable crimp termination for consistent electrical performance. Tin plating on phosphor bronze material for enhanced durability and conductivity. Rated for 9A current with suitable wire gauge accommodation from 24 AWG to 18 AWG.
Wide operating temperature range ensures suitability for diverse environments. Designed for Mini-Fit Jr., TPA, and BMI connector housings for compatibility.
Explore the range of Molex Crimp Terminals and connectors in the Electronics & Electricals category at EnvMart for dependable components designed for demanding industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 9 amps, making it suitable for moderate current load applications.
It supports wire sizes ranging from 24 AWG (0.2 mm²) minimum to 18 AWG (0.8 mm²) maximum.
The terminal operates effectively in an environment with temperatures ranging from -40°C to +105°C.
It is constructed from phosphor bronze with tin plating, which enhances its conductivity and resistance to oxidation.
It is designed to mate with Mini-Fit Jr., TPA, and BMI connector housings, providing versatile compatibility.
This terminal employs a crimp termination method, ensuring a secure mechanical and electrical connection.
The maximum contact resistance is rated at 10 mΩ, ensuring efficient electrical performance.
It is ideal for use in automotive systems, industrial automation, consumer electronics, medical equipment, and communications networking.
This model is a female crimp terminal, designed for secure connections with compatible male terminals.
The Molex 5556 Series Female Crimp Terminal is manufactured in India.
The tin plating on the phosphor bronze material enhances durability and conductivity, ensuring reliable performance over time.
It features a reliable crimp termination method that reduces the risk of electrical failure by providing a secure connection.
