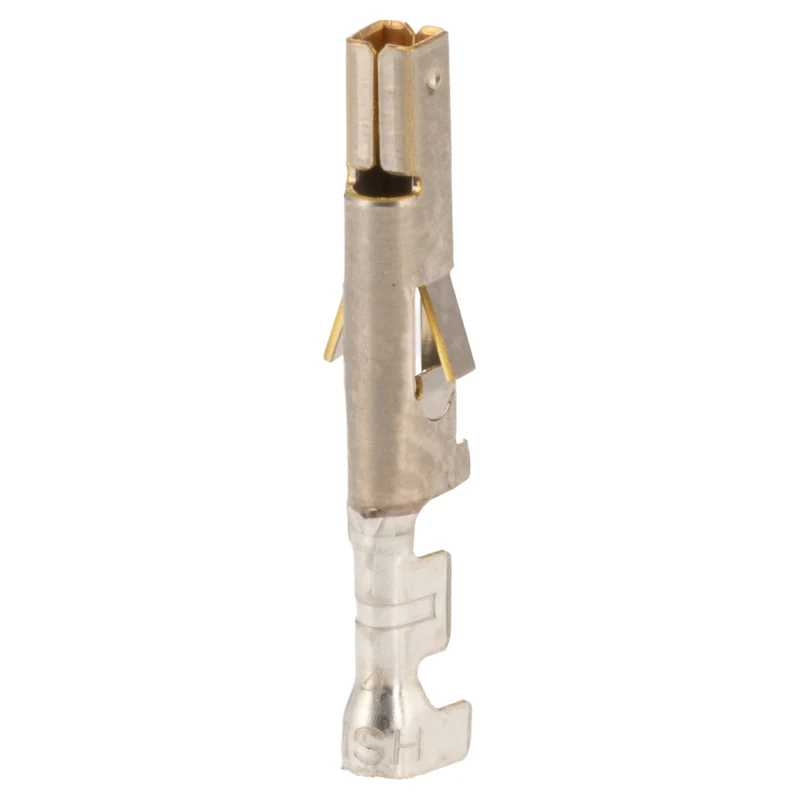

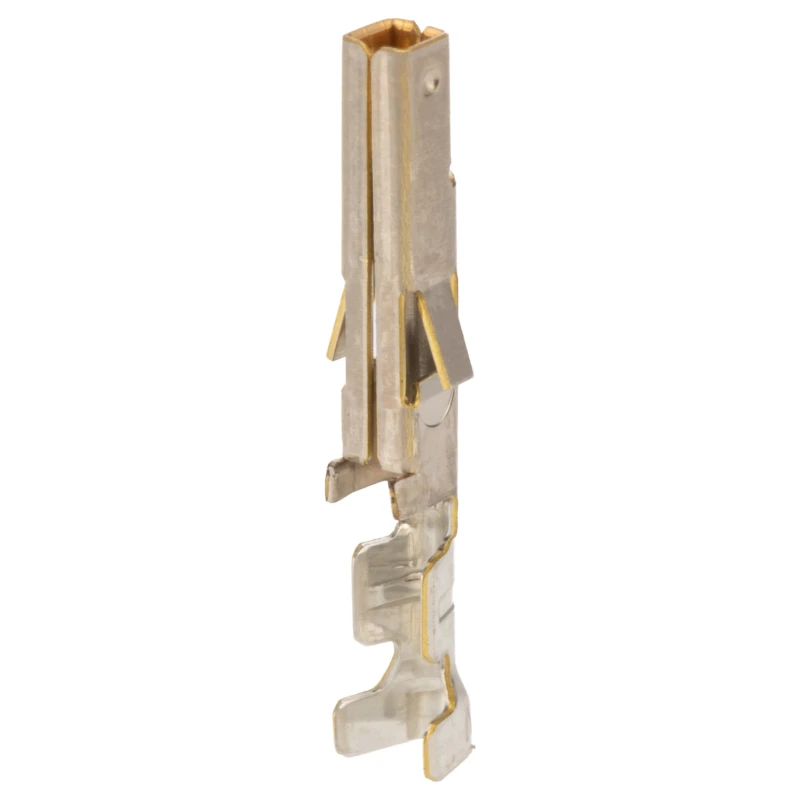

Molex 5556 Series Female Crimp Terminal 28 AWG Min Crimp 22 AWG Max, Brass with Gold Plating, 9A Current Capacity 39-00-0434
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from brass with gold plating for enhanced conductivity and durability.
- Rated for a maximum current of 9 amperes suitable for power applications.
- Crimp termination type ensures secure and reliable wire connections.
- Compatible with a wide temperature range from -40°C to +105°C for diverse environments.
- Supports multiple mating cycles with durable construction for long-term use.
- Optimized for low contact resistance improving electrical performance.
- Designed specifically for use with Mini-Fit Jr connector housing series 5556.
- Gold plating minimizes oxidation and ensures reliable signal transmission.
Product Description
Molex 39-00-0434 Female Crimp Terminal is a precision-engineered component from the 5556 series intended for use with Mini-Fit Jr connector housing systems. Constructed from high-quality brass and gold-plated for superior conductivity, this terminal supports wire gauges ranging from 28 AWG to 22 AWG. It carries a maximum current rating of 9 amperes, ensuring reliable power distribution in electronic and electrical assemblies.
The crimp termination design enables strong and stable wire connections, critical for high current applications in industrial automation, power electronics, and manufacturing equipment. This terminal is rated for operation between -40°C and 105°C, providing durability in demanding environments and extended reliability across diverse use cases.
Key features include gold plating that reduces contact resistance and prevents corrosion, withstanding up to 30 mating cycles without degradation. Its compatibility with various wire insulation diameters makes it versatile for different wiring configurations, enabling efficient assembly and maintenance.
This female crimp terminal is widely employed in industrial and commercial electronic systems requiring consistent and high-quality electrical connectivity. It is particularly effective in power connectors where robustness and minimal signal loss are paramount.
Brass material with gold plating enhances conductivity and corrosion resistance. Supports wire sizes from 28 AWG minimum to 22 AWG maximum for flexible applications. Rated for maximum current of 9A, suitable for power distribution tasks.
Crimp termination type ensures strong mechanical and electrical connection. Operates reliably within -40°C to 105°C temperature range. Durable design suitable for multiple mating cycles up to 30 times. Low contact resistance improves overall electrical performance.
Specifically designed for Mini-Fit Jr connector housing compatibility.
Choose this Molex 5556 series female Crimp Terminal for highly dependable and efficient electrical connections in your automation, electronics, and power distribution projects. Browse EnvMart's extensive selection for more precision connectors and terminals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal has a maximum current capacity of 9 amperes, making it suitable for power applications.
It supports wire sizes ranging from 28 AWG (0.08 mm²) minimum to 22 AWG (0.35 mm²) maximum.
The terminal is constructed from brass and features gold plating, which enhances conductivity and corrosion resistance.
This terminal operates reliably within a temperature range of -40°C to 105°C.
It is designed to support up to 30 mating cycles without degradation in performance.
This model utilizes a crimp termination type, ensuring strong mechanical and electrical connections.
Yes, it is specifically designed for use with the Mini-Fit Jr connector housing series 5556.
The maximum contact resistance is rated at 10 milliohms (10 mΩ), which helps improve electrical performance.
The country of origin for this terminal is India.
This terminal is widely employed in industrial and commercial electronic systems that require reliable electrical connectivity, particularly in power connectors.
This terminal is female, designed to connect with male counterparts in various applications.
Gold plating minimizes oxidation and ensures reliable signal transmission, enhancing overall electrical performance.
