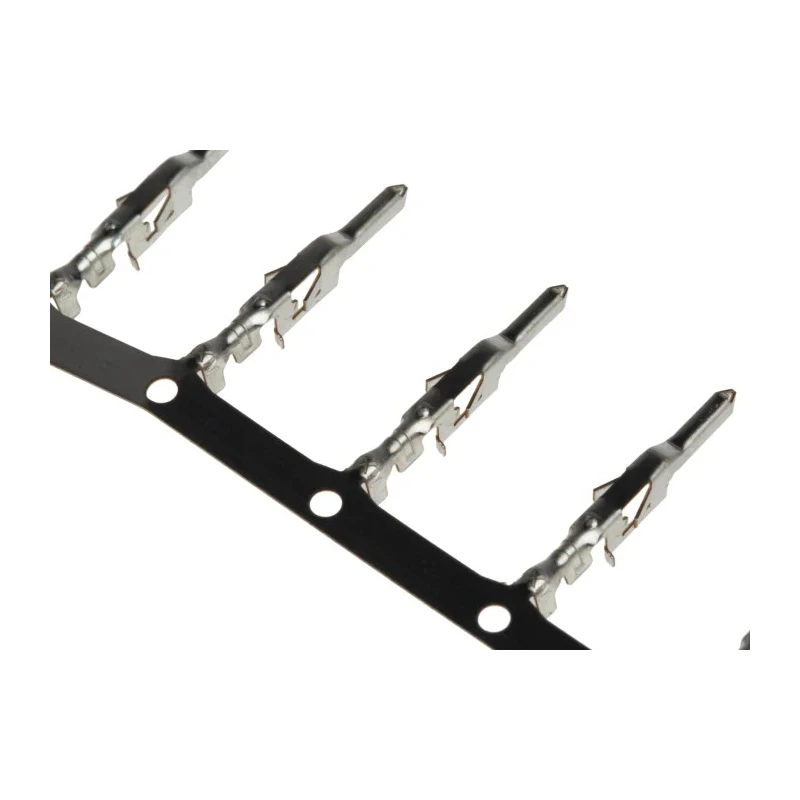

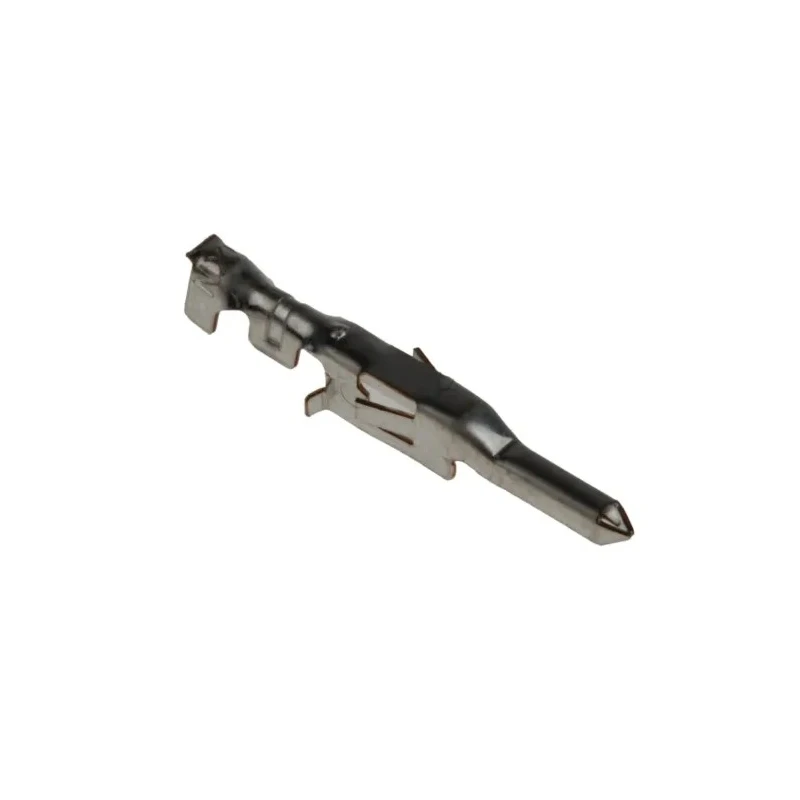

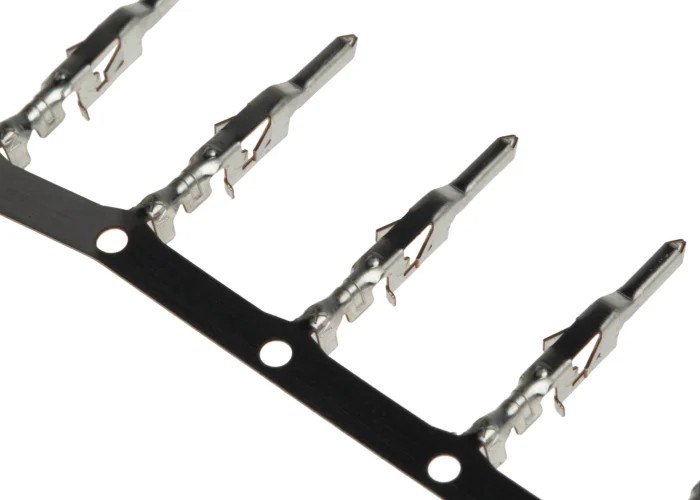

Molex 5558 Series Male Crimp Terminal, 28 AWG Min Crimp, 22 AWG Max, Tin Plated Phosphor Bronze 9A Current 39-00-0067

Free Delivery in India | Lowest Global Shipping Charges

Molex 5558 Series Male Crimp Terminal, 28 AWG Min Crimp, 22 AWG Max, Tin Plated Phosphor Bronze 9A Current 39-00-0067

Name: Molex 5558 Series Male Crimp Terminal, 28 AWG Min Crimp, 22 AWG Max, Tin Plated Phosphor Bronze 9A Current 39-00-0067
Brand: Molex
SKU: 347376
Price: 0.07 USD
Availability: InStock



Category Crimp Terminal Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Current	9A
Gender	Male
Contact Material	Phosphor Bronze
Series	5558
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ
Molex 5558 Series Male Crimp Terminal, 28 AWG Min Crimp, 22 AWG MaxBrand	Molex

Key Features

Constructed from phosphor bronze for high tensile strength and durability.
Tin contact plating ensures excellent corrosion resistance.
Operates reliably within temperature range -40°C to 105°C.
Compatible with Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI connector housings.
Supports wire sizes from 28 AWG (0.08 mm²) up to 22 AWG (0.35 mm²).
Maximum contact resistance is 10 mΩ for stable electrical connections.
Maximum voltage rating of 600 V and current rating of 9A for demanding applications.
Integrated locking tang secures terminal in housing preventing misalignment.

Product Description

Molex 39-00-0067 is a male crimp terminal from the 5558 Series designed for wire sizes ranging between 28 AWG (minimum) and 22 AWG (maximum). It features a robust construction from phosphor bronze which provides excellent tensile strength suitable for harsh industrial and automotive environments. The tin plating on the contact surfaces ensures superior corrosion resistance, extending the terminal’s lifespan.

With a current rating of 9 amperes and a maximum operating temperature of 105°C, this crimp terminal supports reliable electrical connections in high-demand settings. It operates efficiently within a temperature range of -40°C to 105°C and withstands a maximum contact resistance of 10 milliohms, ensuring minimal power loss.

The male crimp terminal is compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. Its integrated locking tang secures the terminal firmly in the connector housing, preventing misalignment and ensuring a stable connection during operation.

Constructed using low halogen materials, this terminal reduces environmental impact and is suitable for applications in the automotive industry, industrial automation systems, communications and networking equipment, and medical devices.

Phosphor bronze construction for durability and strength. Tin plating for enhanced corrosion resistance. Supports wires from 28 AWG to 22 AWG (0.08 to 0.35 mm²). Maximum current rating of 9A and operating voltage up to 600 V.

Designed for Mini-Fit connector series housings. Integrated locking tang prevents terminal misalignment. Suitable for automotive, industrial, communication, and medical applications. Low halogen materials for environmentally safer use.

Maximum contact resistance of 10 milliohms ensures reliable conductivity. Temperature range: -40°C to 105°C.

This Molex 5558 Series male Crimp Terminal is an ideal choice for professionals requiring a robust, reliable, and environmentally considerate connection solution. Explore more high-quality connectors and terminals in the Electronics & Electricals category on EnvMart.
