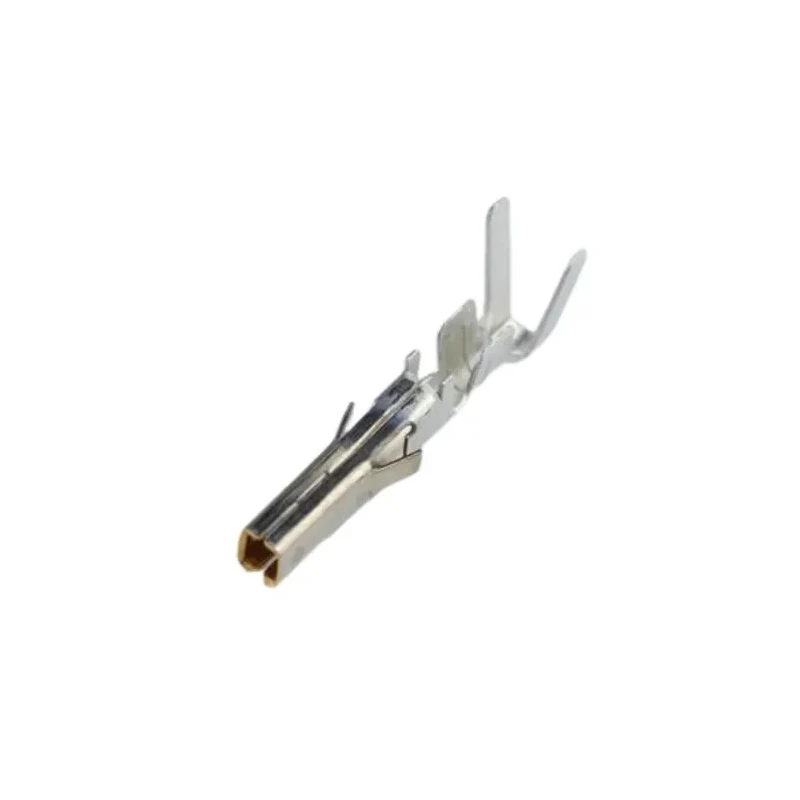

Molex 5556 Series Female Crimp Terminal for Mini-Fit Connectors 9A Current 28-22 AWG 39-00-0183
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Operates reliably in temperatures from -40°C to 105°C.
- Gold plating ensures excellent conductivity and corrosion resistance.
- Crimp termination provides secure and reliable electrical connections.
- Low contact resistance of 10 mΩ for efficient power transfer.
- Constructed from durable phosphor bronze material.
- Compatible with high current automotive and industrial applications.
- Designed to withstand up to 30 mating cycles without performance loss.
- Ideal for power supply interconnections and wire-to-board or wire-to-wire uses.
Product Description
Molex 39-00-0183 female crimp terminal is engineered for use with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings to ensure secure, reliable electrical connections in power and wire harness assemblies. Rated for a maximum current of 9 amperes, this terminal accommodates wire sizes ranging from 28 AWG (0.08 mm²) to 22 AWG (0.35 mm²), making it suitable for a variety of wiring needs.
Constructed from phosphor bronze for durability and excellent conductivity, the contacts feature a gold plating that enhances electrical performance while reducing oxidation and corrosion. The crimp termination type guarantees a mechanically secure connection that maintains low contact resistance, specified at 10 milliohms, ensuring efficient power transfer in demanding environments.
Operating reliably within a temperature range of -40°C to 105°C, this terminal is ideal for automotive, industrial automation, and consumer electronics applications. The locking tangs on the contact secure it firmly within the connector housing, providing resistance to vibration and mechanical stresses. It supports up to 30 mating cycles, preserving connection integrity over repeated use.
Applications include automotive crimp connectors for engine wiring, power supply interconnections in industrial machinery, communication device wiring, and low-voltage wire harness constructions. This terminal's versatility and robust build make it an essential component in high-performance electrical assemblies.
Manufactured to meet stringent quality standards for industrial and automotive use. Gold-plated phosphor bronze contact material ensures durability and low resistance. Supports a broad range of wire gauges from 28 AWG to 22 AWG.
Designed for secure crimp termination with locking tangs for reliable connector housing retention. Temperature rated for operation from -40°C up to 105°C. Ideal for use in power, signal, and ground circuit applications. Enables high current carrying capacity up to 9A.
EnvMart offers this high-quality Molex 5556 Series female Crimp Terminal for professionals in electronics manufacturing, automotive wiring harness production, and industrial equipment assembly. Explore related power connector components and accessories in our comprehensive industrial catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this female crimp terminal is 9 amperes.
This terminal accommodates wire sizes ranging from 28 AWG (0.08 mm²) to 22 AWG (0.35 mm²).
The terminal is constructed from phosphor bronze and features gold plating for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 105°C.
The crimp termination type guarantees a mechanically secure connection, maintaining low contact resistance of 10 milliohms for efficient power transfer.
This terminal is designed to withstand up to 30 mating cycles without performance loss.
It is designed for use with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
This terminal is suitable for automotive crimp connectors, power supply interconnections, and low-voltage wire harness constructions.
The maximum contact resistance is specified at 10 milliohms, ensuring efficient power transfer.
The gold plating and phosphor bronze construction enhance durability and reduce oxidation and corrosion.
Yes, it is compatible with high current automotive and industrial applications, making it versatile for various wiring needs.
The terminal is manufactured in the United States.
