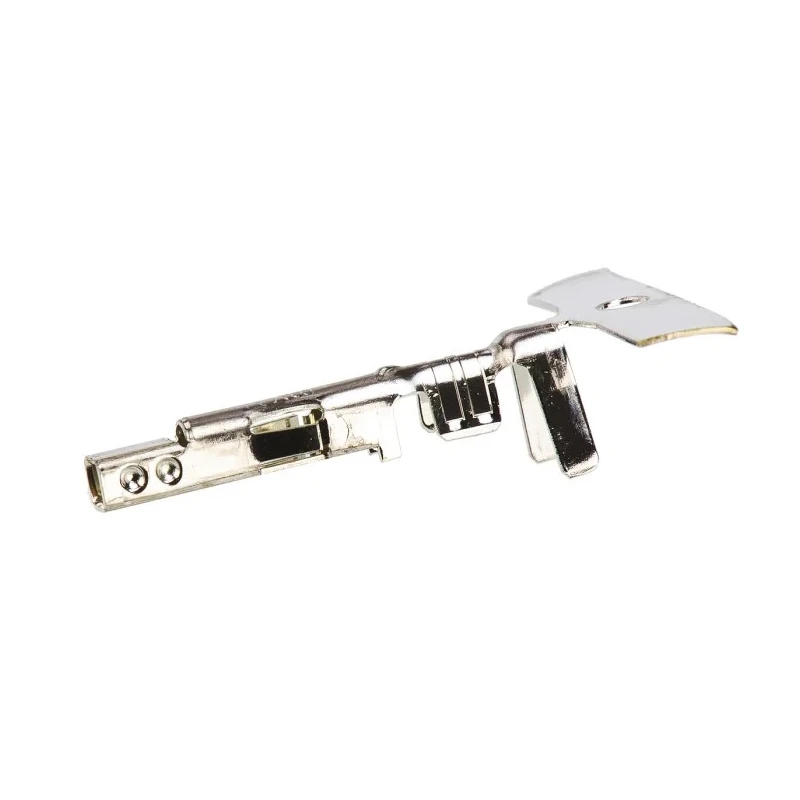

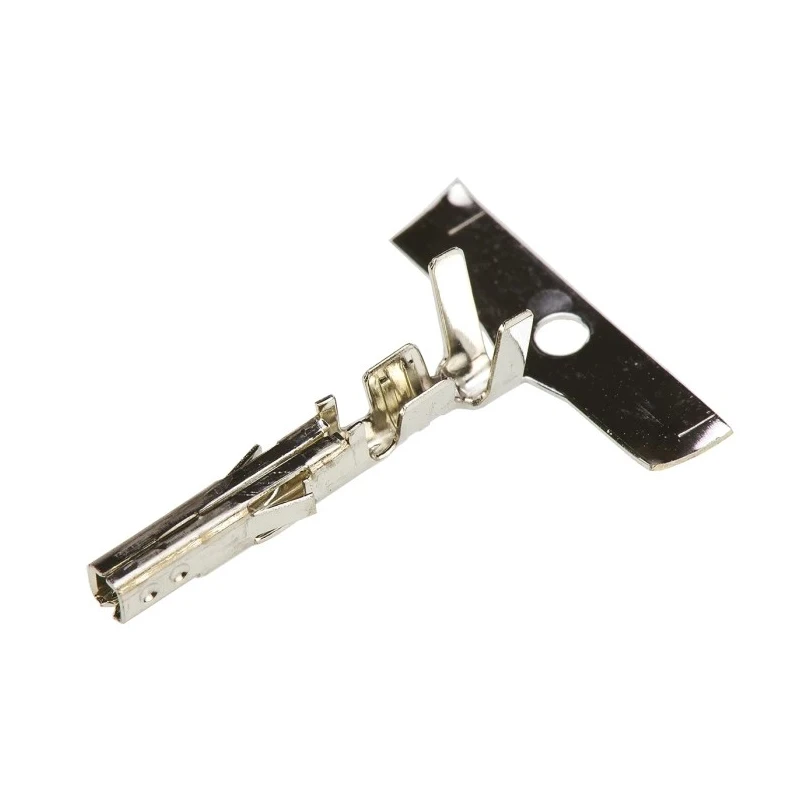

Molex 5556 Series Female Crimp Terminal 24 AWG Min, 18 AWG Max, Brass with Tin Plating, 9A Current, Crimp 39-00-0207
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from brass material with tin plating for enhanced conductivity and corrosion resistance.
- Compatible with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
- Supports operating temperatures from -40°C up to 105°C for versatile environment use.
- Provides secure crimp termination ensuring reliable electrical connections.
- Maximum contact resistance is 10 milliohms for dependable performance.
- Suitable for wire-to-board and wire-to-wire applications in power distribution systems and automation controls.
- Can sustain a maximum voltage rating of 600 volts for safe power transmission.
- Designed for up to 30 mating cycles, ensuring longevity in repeated use.
Product Description
The Molex 39-00-0207 is a high-quality 5556 Series Female Crimp Terminal designed for electrical and electronic applications requiring reliable, durable power connections. This crimp terminal supports wire sizes from 24 AWG (0.2mm²) minimum to 18 AWG (0.8mm²) maximum, with a maximum current rating of 9 amperes, suitable for compact and efficient power distribution.
Constructed from robust brass material and finished with tin plating, this crimp terminal offers excellent conductivity and corrosion resistance, ensuring a long service life in demanding environments. It is compatible with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings, enabling easy integration into standard connector systems.
Operating temperature range from -40°C to 105°C allows this terminal to perform reliably in various industrial, commercial, and automation control systems. The termination type is crimp, guaranteeing secure and stable wire connections with minimal contact resistance capped at 10 milliohms, enhancing electrical efficiency and safety.
This product is suitable for wire-to-board and wire-to-wire configurations and is commonly employed in power distribution and control systems where dependable electrical contact is critical. It supports a maximum voltage rating of 600 volts, ensuring safe transmission of electrical power.
Compatible with Mini-Fit connector housings for standardization and ease of use. High mechanical and electrical reliability due to brass material and tin plating. Wide operating temperature range suitable for diverse environments.
Designed for secure crimp termination and low contact resistance. Suitable for over 30 mating cycles for repeated connection durability. Flexible compatibility with wire insulation diameters ranging from 1.30mm to 3.10mm.
This Molex 5556 Series Female Crimp Terminal is the ideal solution for electrical engineers and technicians requiring dependable, high-performance terminals for power connectors. Its robust specifications and compatibility make it suitable for industrial, electrical manufacturing, and automated control systems.
Explore comprehensive electronics and power connector solutions on EnvMart for professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 9 amperes.
It supports wire sizes from 24 AWG (0.2mm²) minimum to 18 AWG (0.8mm²) maximum.
The maximum voltage rating for this terminal is 600 volts, ensuring safe power transmission.
This terminal is compatible with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
The operating temperature range is from -40°C to 105°C, allowing it to perform reliably in various environments.
The termination type is crimp, providing secure and stable wire connections.
The maximum contact resistance is 10 milliohms, enhancing electrical efficiency and safety.
It is designed for up to 30 mating cycles, ensuring durability in repeated use.
It is constructed from brass material with tin plating for enhanced conductivity and corrosion resistance.
This terminal is suitable for wire-to-board and wire-to-wire applications in power distribution systems and automation controls.
The gender of this crimp terminal is female.
The country of origin for this product is India.
