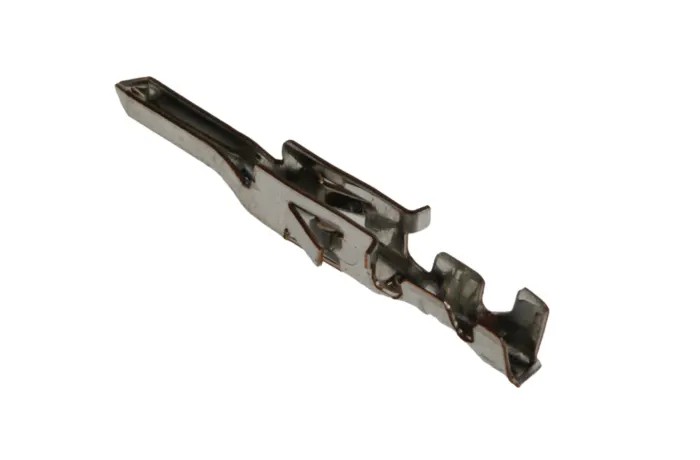

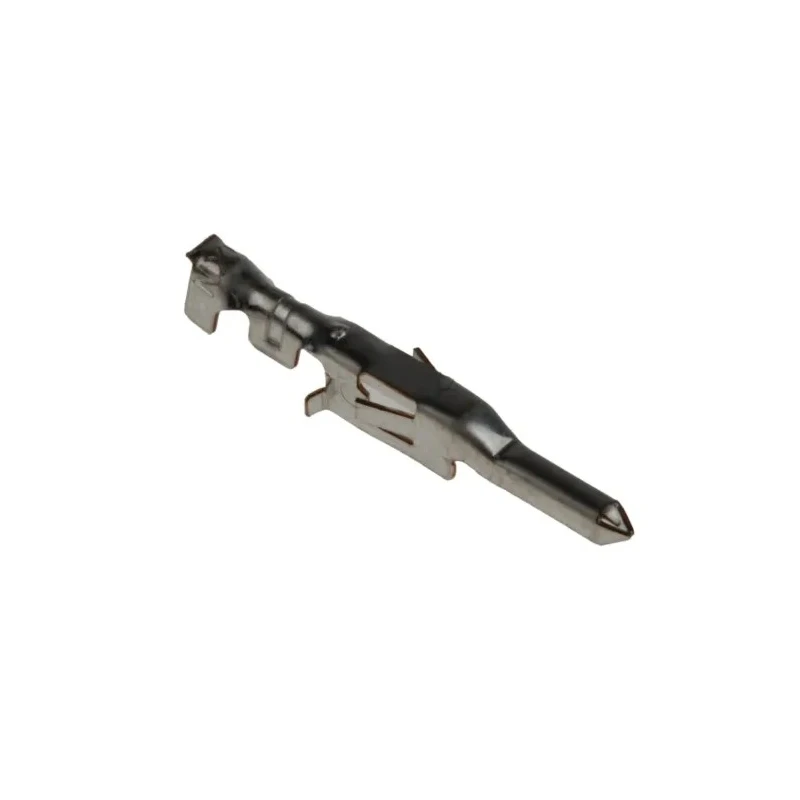

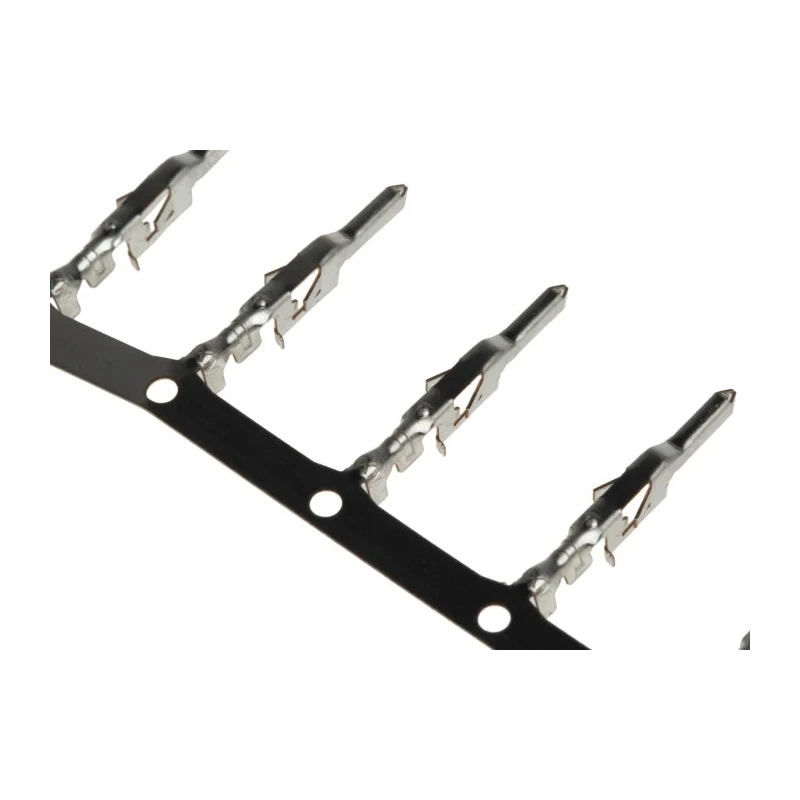

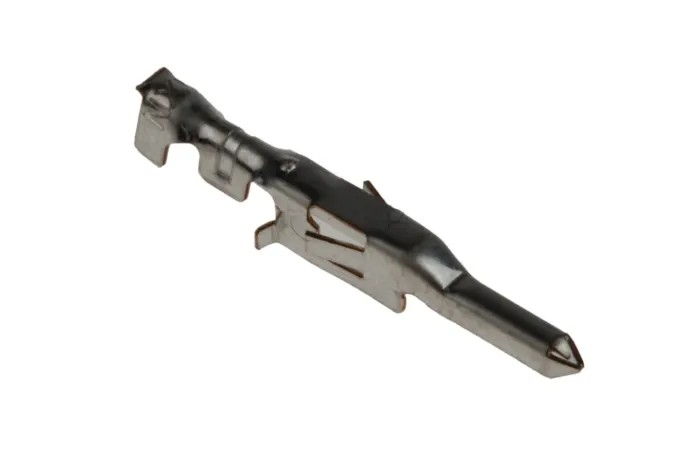

Molex 5558 Series Male Crimp Terminal 28 to 22 AWG Wire Size 9A Current Rating 39-00-0067

Molex 39-00-0067 Male Crimp Terminal from the 5558 series is designed for reliable electrical connections in demanding industrial and automotive applications. It supports wire sizes ranging from 28 AWG minimum to 22 AWG maximum, and handles a current rating of 9A with a voltage rating up to 600V. Constructed from durable phosphor bronze material with tin contact plating, it offers excellent resistance to corrosion and mechanical stresses.

The terminal features multiple contact points for enhanced electrical stability and an integrated locking tang which securely holds the terminal within Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, ensuring proper alignment during assembly. Its robust design and materials enable operation in temperatures ranging from -40°C to 105°C.

This crimp terminal is ideal for use in automotive wiring harnesses, industrial automation systems, communications and networking equipment, and medical devices requiring dependable connections in harsh environments. The use of low halogen materials helps reduce environmental contamination risks. These terminals are compatible with both crimp and compression termination methods, providing flexible assembly options for manufacturers.

Constructed from phosphor bronze for durability and high tensile strength. Tin-plated contacts for excellent corrosion resistance. Locking tang for secure mating in connector housings to prevent misalignment. Designed for wire size range 28 to 22 AWG with insulation diameter 0.90 to 1.80 mm.

Supports maximum current rating of 9A and maximum operating temperature of 105°C. Ideal for automotive, industrial automation, communications, and medical applications. Low halogen materials used to minimize environmental contamination.
