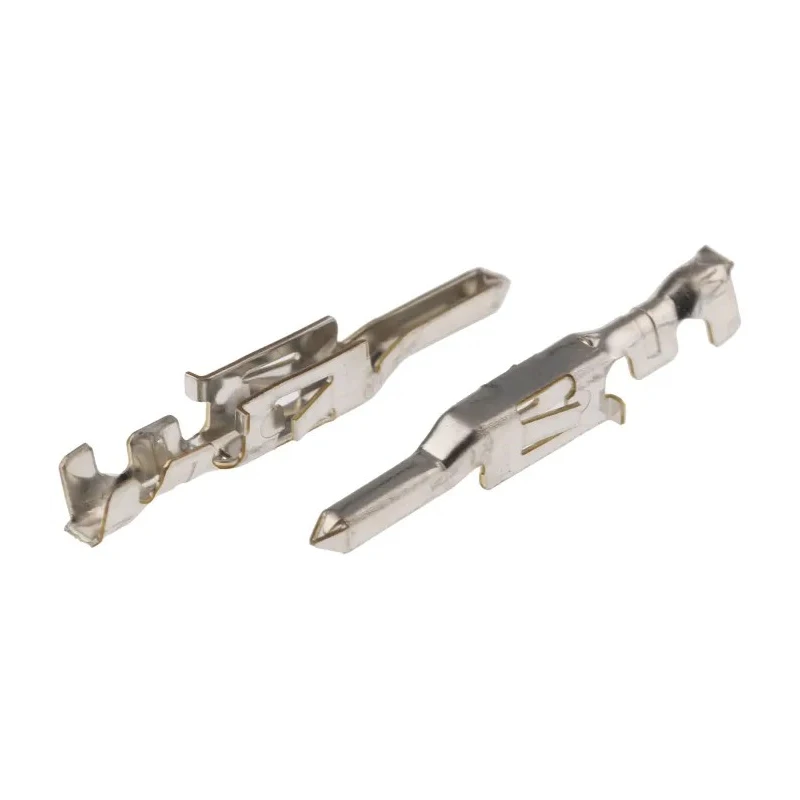

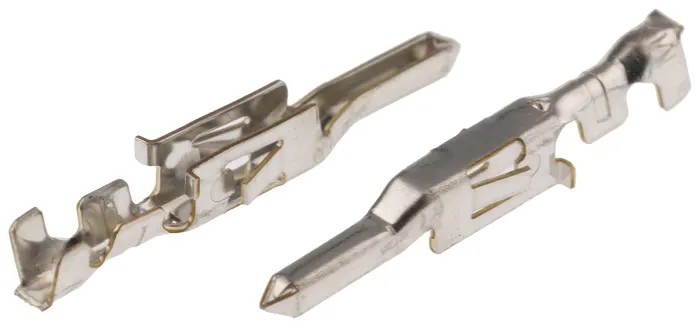

Molex 5558 Series Male Crimp Terminal, 28 AWG Min to 22 AWG Max, 9A Current, Tin Plated Brass Contact 39-00-0048

Molex 39-00-0048 male crimp terminal is designed for reliable wire termination ranging from 28 AWG to 22 AWG, rated at 9A current capacity, making it suitable for various electrical and electronic systems. This crimp terminal is equipped with a tin-plated brass contact material that provides excellent resistance to wear and impact, ensuring durability in demanding industrial and commercial environments.

The terminal features locking tangs that secure it firmly within compatible connector housings such as Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI, preventing accidental disconnections while maintaining a stable electrical connection. It supports a maximum operating temperature of 105°C and a minimum of -40°C, making it adaptable to a wide range of ambient conditions.

With a maximum contact resistance of 10mΩ and capability to withstand up to 30 mating cycles, this terminal assures efficient performance and long-term reliability. The tin plating on the contact enhances endurance under intensive operational cycles, making it suitable for demanding use cases.

This crimp terminal is widely applied in sectors including medical equipment manufacturing, communications and networking devices, automated systems, and industrial automation, where safe and secure wire connections are critical. Its compatibility with multiple connector housing types and broad wire size range adds to its versatility.

The compact design and robust contact construction support electrical engineers and technicians in assembling dependable power and signal connections in industrial, laboratory, manufacturing, and commercial applications.

Compatible with Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI connector housings. Supports a maximum current rating of 9A ensuring reliable power transmission. Constructed with brass contact material offering resistance to wear and impact.

Features tin contact plating to withstand demanding operational conditions. Operating temperature range from -40°C to 105°C suitable for various environments. Designed with locking tangs to secure terminal firmly in the connector housing.

Low contact resistance of 10mΩ for efficient electrical performance. Supports a maximum of 30 mating cycles guaranteeing long-term durability. Ideal for applications in medical equipment, communications, networking, automation, and industrial machinery.
