| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 15mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |

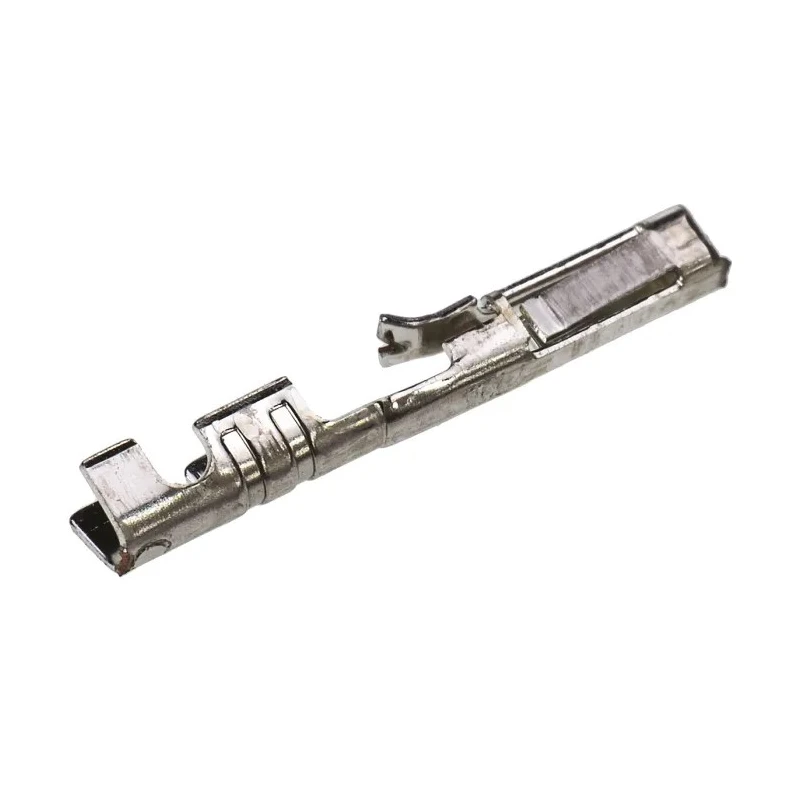

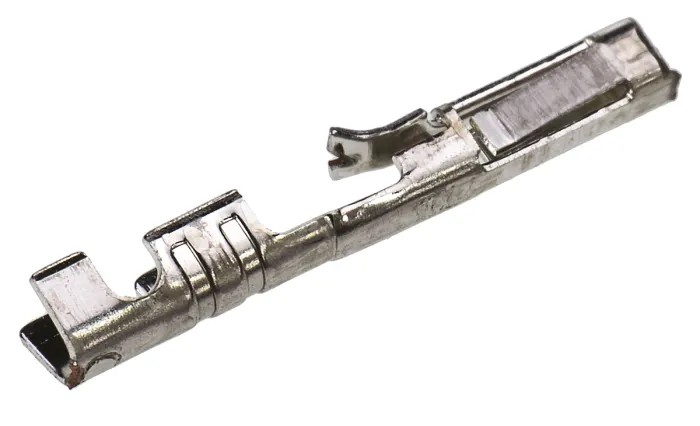

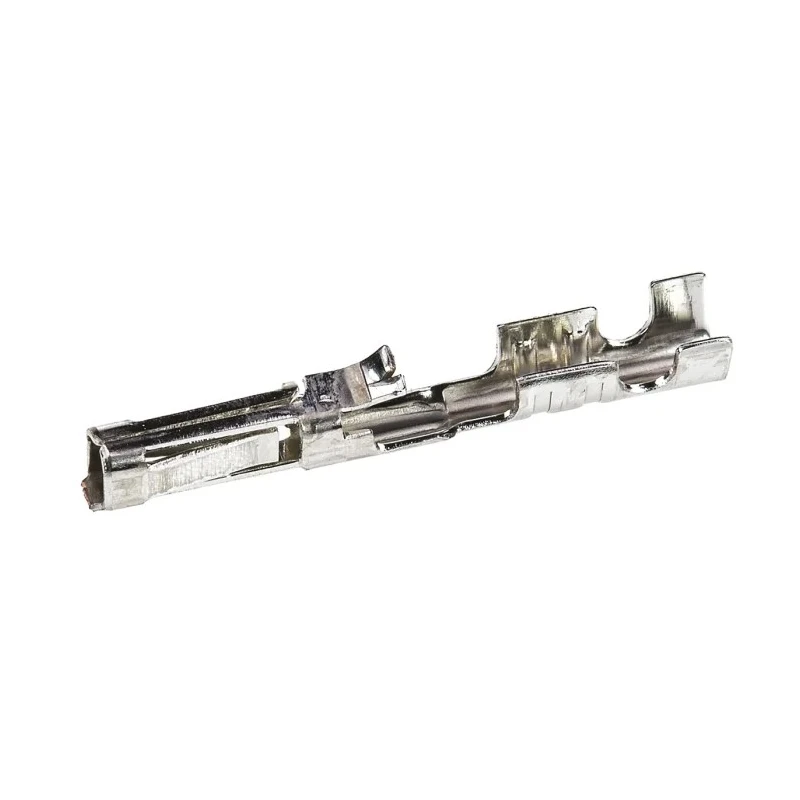

Molex 16-02-0086 Female Crimp Terminal from the 70058 Series is specially designed for SL connector housings, supporting wire sizes from 24 AWG (minimum) to 22 AWG (maximum). Rated for currents up to 3 amperes, this crimp terminal facilitates dependable signal connections with a robust phosphor bronze body and tin-plated contacts to resist corrosion.
The crimp termination ensures a stable and secure mechanical and electrical connection with stranded wires, making it ideal for harsh industrial and commercial environments. Its temperature tolerance ranges from -40°C to 105°C, ensuring performance in extreme ambient conditions.
This crimp terminal weighs approximately 0.071 grams, offering a lightweight solution that does not impose significant mechanical load on connected cables and assemblies.
Applications include consumer electronic devices, medical instrumentation, and communication networking equipment. Its compatibility with other Molex SL series connectors such as 71851 and 70021 further adds versatility.
Installation is conveniently done with standard hand crimping tools, enabling easy and secure termination of wires. Durable construction with phosphor bronze material. Tin contact plating for corrosion resistance. Supports 24 AWG to 22 AWG stranded wires.
Rated for 3A current capacity. Operates within a temperature range of -40°C to 105°C. Compatible with multiple SL Series connector housings. Lightweight design reduces cable strain. Easy installation with hand crimping tool.
Choose Molex 16-02-0086 Female Crimp Terminal for reliable and efficient electrical connections in industrial, laboratory, and commercial electronics projects.
