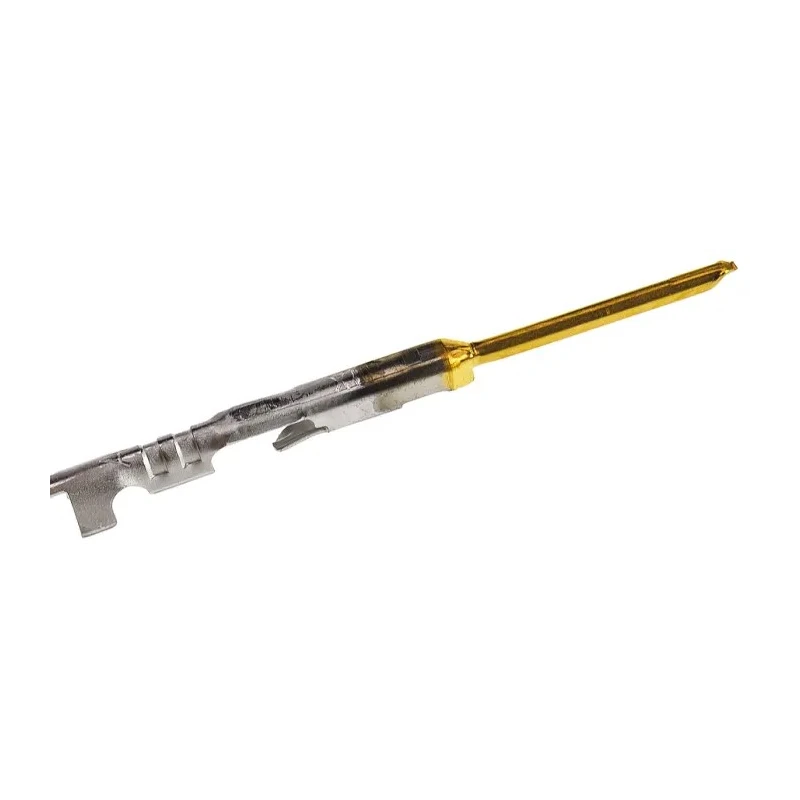

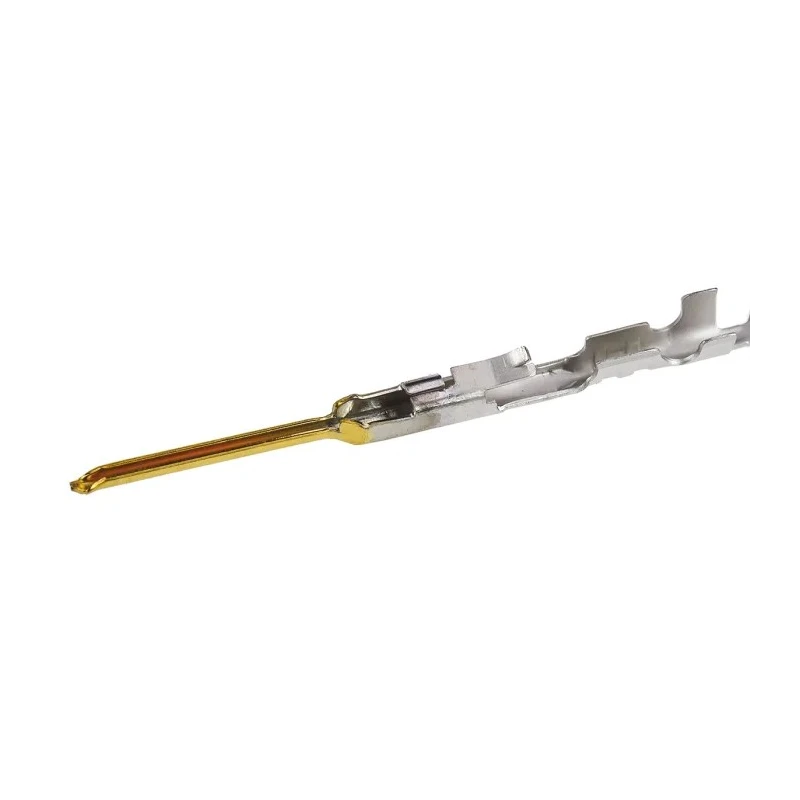

Molex 70021 Series Male Crimp Terminal, 30 AWG Min Crimp, 24 AWG Max, Gold Plated Phosphor Bronze Contact, 3A 16-02-0078
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 70021 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 30mΩ |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Constructed with phosphor bronze contact material ensuring durability and conductivity.
- Gold plating provides effective corrosion resistance for long-term reliability.
- Rated for a maximum current of 3A with minimal contact resistance up to 30mΩ.
- Designed for use with SL Connector Housings with a simple crimp termination type.
- Operates effectively between -40°C and 105°C for diverse environmental conditions.
- Mechanical service life supports up to 1000 mating cycles for industrial durability.
- Commonly used in automotive, telecommunication, consumer electronics, and medical equipment.
- Lightweight at approximately 0.1g for ease of handling and minimal strain on connectors.
Product Description
Molex 16-02-0078 Male Crimp Terminal is a high-quality electronic component designed for reliable PCB connections. With a minimum wire size of 30 AWG and maximum of 24 AWG, this crimp terminal offers versatile application across multiple sectors.
The contact is made from phosphor bronze known for excellent electrical properties and durability, protected by gold plating to resist corrosion and maintain signal integrity. With a maximum current rating of 3A and low contact resistance of 30mΩ, it ensures efficient electrical performance with minimal heat dissipation.
This terminal features a crimp termination method allowing for quick, secure assembly with low insertion force, saving time during installation. It is compatible specifically with SL Connector Housings, making it ideal for integration in electronic assemblies requiring stable and durable connections.
Operable in temperatures ranging from -40°C to 105°C, this component withstands harsh environmental conditions. It is lightweight at around 0.1g, reducing stress on the connector housing interfaces.
The Molex 70021 series Crimp Terminals are widely used in automotive electronics, telecommunication equipment, consumer devices, and medical instruments such as patient monitors. Their durability is reinforced by a mechanical service life rated for up to 1000 mating cycles, supporting frequent connection and disconnection in industrial applications.
Phosphor bronze contact material for reliable conductivity and strength. Gold plating for corrosion resistance and extended service life. Rated for 3A current ensuring low heat generation. Simple and efficient crimp termination type.
Wide operating temperature range: -40°C to 105°C. Supported wire sizes from 30 AWG to 24 AWG for flexibility. Lightweight design at approximately 0.1g for ease of use. High mechanical endurance up to 1000 mating cycles.
This product is manufactured under Molex's 70021 series and offers dependable performance for industrial, automotive, telecommunications, consumer electronics, and medical device applications.
Explore similar Molex components and connector solutions in EnvMart’s Electronics & Electrical category for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating is 3A, ensuring efficient electrical performance with minimal heat generation.
It supports a minimum wire size of 30 AWG and a maximum wire size of 24 AWG.
The contact material is phosphor bronze, and it features gold plating for corrosion resistance.
The maximum contact resistance is 30mΩ, which contributes to its efficient electrical performance.
It operates effectively between -40°C and 105°C, making it suitable for diverse environmental conditions.
The mechanical service life supports up to 1000 mating cycles, reinforcing its durability in industrial applications.
It uses a crimp termination type, allowing for quick and secure assembly with low insertion force.
It is specifically designed for use with SL Connector Housings.
It weighs approximately 0.1g, making it lightweight for ease of handling.
It is commonly used in automotive electronics, telecommunication equipment, consumer devices, and medical instruments.
The country of origin is India.
For reference, the 70058 and 71851 Series are also used with 70450 Series Housings.
