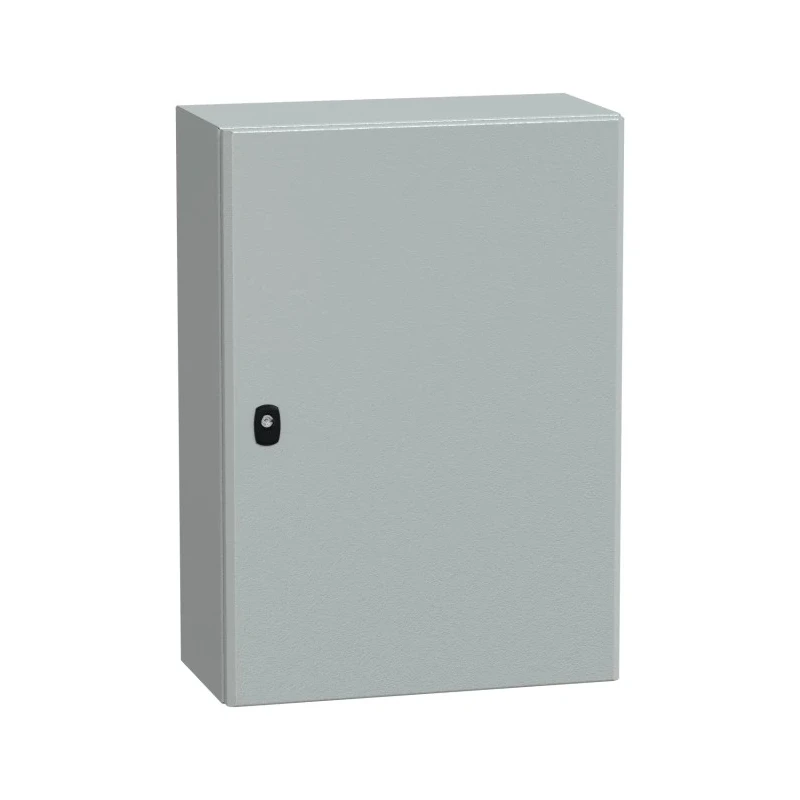

Schneider Electric PanelSeT S3DEX Series Steel Wall Box IP66 IK10 ATEX Certified 700mm x 500mm x 250mm
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | S3DEX |
| IP Rating | IP66 |
| Series | PanelSeT S3DEX |
| External Width | 500mm |
| External Depth | 250mm |
| External Height | 700mm |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | RoHS, UL, BV, REACH, IEC 62208, LR, DNV, cUL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 701-8382Brand: Schneider ElectricManufacturers Part No.: NSYS3DEX7525 |
| Door Lock Type | Double Bar |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
Key Features
- The enclosure measures 700 mm height, 500 mm width, and 250 mm depth.
- Constructed from durable steel with a grey (RAL 7035) epoxy-polyester powder finish.
- Features a 120° reversible single door with a 3-point double-bar lock for secure access.
- Certified to ATEX II2 GD standards suitable for explosive atmospheres with gas and dust risks.
- Includes door lock, door, clamped blind nut, and fixing kit for wall mounting.
- Designed without mounting or gland plate but includes a gland plate option.
- Complies with RoHS, UL, BV, REACH, IEC 62208 and other international standards.
- Protection offers dust tightness and powerful water jet resistance (IP66) and mechanical impact resistance (IK10).
Product Description
Schneider Electric NSYS3DEX7525 PanelSeT S3DEX Series Steel Wall Box is a robust IP66-rated steel enclosure designed for electrical and control panel installations in harsh environments. It features ATEX hazardous area certification, making it suitable for locations where explosive atmospheres involving gas, vapours, and dust may occur according to ATEX directive 94/9/EC.
The enclosure dimensions are 700 mm height, 500 mm width, and 250 mm depth, with a one-piece folded and welded steel body finished with a grey epoxy-polyester powder coating (RAL 7035) for corrosion resistance and durability. The front profile has a gutter shaped double sheet thickness for enhanced mechanical strength.
A single reversible door opens 120° and secures with a 3-point double-bar lock system. The enclosure does not include mounting or gland plates but comes supplied with a gland plate and fixing kit for wall mounting applications. Its design accommodates panel internal mounting and is suitable for use alongside other ATEX certified electrical, pneumatic, and hydraulic components.
The product meets various standards including RoHS, UL, BV, REACH, IEC 62208, LR, DNV and cUL. It features an IK10 mechanical impact rating, providing resistance to impacts equivalent to a 5 kg object dropped from 20 cm. The IP66 rating ensures dust-tight protection and strong resistance to water jets, making it ideal for indoor and outdoor industrial applications.
The enclosure provides secure protection in potentially explosive atmospheres complying with ATEX II 2 GD Ex e IIC Gb Ex tb IIIC Db classifications. Suitable for industrial, electrical automation, HVAC, water treatment, manufacturing, and other commercial sectors requiring reliable hazardous area enclosures.
Designed for disassembly supporting sustainability and ease of maintenance. The package includes the steel box body, door with lock, a clamped blind nut, gland plate, and wall mounting fixing kit. The enclosure's durable construction and certification enable safe installation in zones with gas and dust explosion risks.
Explore more Schneider Electric electrical enclosures and Wall Boxes on EnvMart for certified, high-quality industrial protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure measures 700 mm in height, 500 mm in width, and 250 mm in depth.
It has an IP66 rating, providing dust-tight protection and strong resistance to water jets.
It is ATEX certified, suitable for explosive atmospheres involving gas and dust according to ATEX directive 94/9/EC.
The enclosure is constructed from steel with a grey epoxy-polyester powder finish.
It has an IK10 mechanical impact rating, indicating resistance to impacts equivalent to a 5 kg object dropped from 20 cm.
It features a 3-point double-bar lock system for secure access.
Yes, it includes a fixing kit for wall mounting and a gland plate option.
It complies with RoHS, UL, BV, REACH, IEC 62208, LR, DNV, and cUL standards.
It is designed for internal panel mounting.
Yes, it is designed for disassembly, supporting sustainability and ease of maintenance.
It is suitable for industrial, electrical automation, HVAC, water treatment, manufacturing, and other commercial sectors requiring hazardous area enclosures.
The enclosure is finished in grey (RAL 7035).
