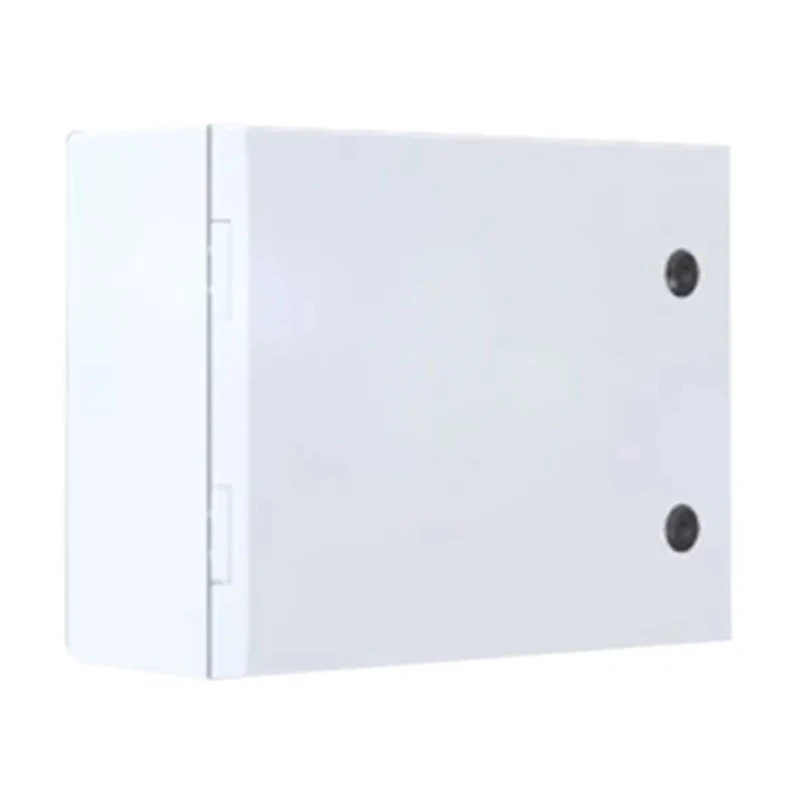

Fibox ARCA Series Polycarbonate Wall Box, IP66, 600 mm x 800 mm x 300 mm, IK10, Key Lock, Finland Origin IP66

Fibox IP66 ARCA Series Polycarbonate Wall Box (Model IP66) is a high-quality electrical enclosure designed for industrial, commercial, and harsh environmental applications. Measuring 600 mm in height, 800 mm in width, and 300 mm in depth, this wall box offers robust protection and functionality for electrical and automation equipment.

Constructed from UV-resistant and non-corrosive polycarbonate, the enclosure withstands severe weather conditions and mechanical impacts, demonstrated by its IK10 rating. The enclosure door features a 120° opening angle for user-friendly access and is equipped with a secure double-bit key lock featuring interchangeable lock inserts for enhanced security.

This product includes an unperforated mounting plate suitable for panel mounting and mounting pods positioned on the base, cover, and four sides for flexible and guaranteed IP66-rated installation. The gasket made from PUR material ensures a tight and durable seal preventing ingress of dust and water.

Additional design features comprise a declined base for improved weatherproofing, a patented hinge system easing installation, and structurally reinforced double corners and ribbing improving mechanical strength and stability during use.

The enclosure is compliant with international standards including IEC, EN, and UL, ensuring suitability for use in electrical, automation, and telecommunications installations requiring stringent safety and performance criteria. It is fire resistant to UL 94-5VA and electrically isolates circuits up to 1500 Vdc.

Finished in light grey RAL 7035, the wall box is halogen free with excellent chemical resistance, making it suitable for industrial and outdoor applications as well as laboratories and manufacturing environments.

The main body is made of rugged polycarbonate offering UV resistance and high impact strength. It features an IP66 ingress protection rating along with IK10 impact resistance. The door opens 120° for easy internal access and includes a double-bit key lock with changeable inserts.

The enclosure includes an unperforated mounting plate and mounting pods for external wall fixing outside the gasket area. It is fire resistant to UL 94-5VA standards and electrically isolated to 1500 Vdc. The gasket is made from high-quality PUR material for superior sealing.

Finished in light grey RAL 7035 color, it is halogen free and chemically resistant. The box complies with IEC, EN, and UL standards, and carries Finnish origin certification. The design includes patent pending hinges and a special ribbed and double corner construction for extra stability.

Ideal applications include industrial automation systems, electrical panel protection, telecommunications equipment housing, and outdoor electrical enclosures demanding high ingress and impact resistance. This product supports reliable installation with supplied screws and lock keys included in the package.
