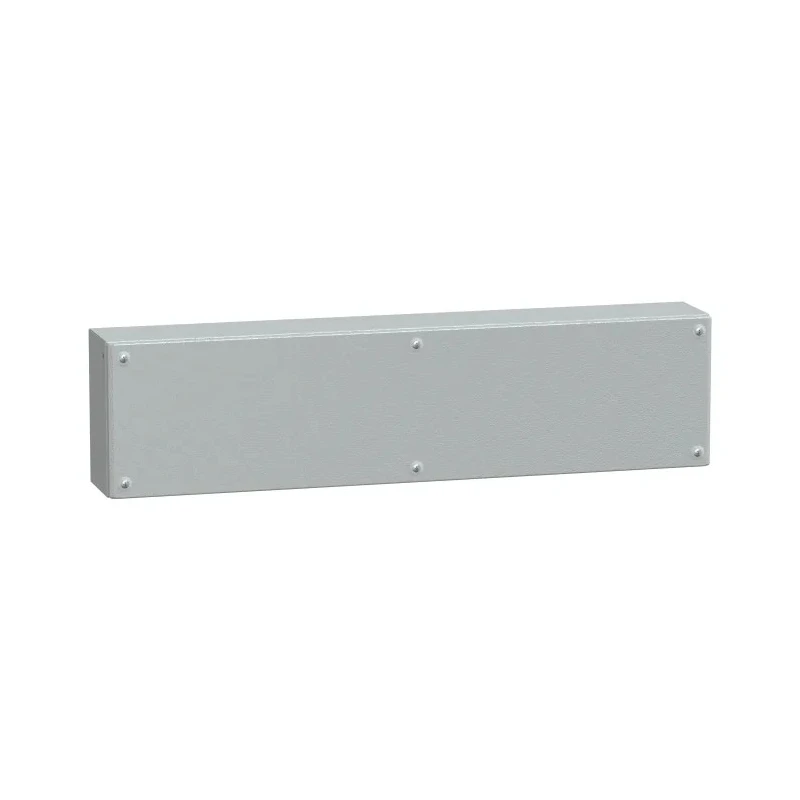

Schneider Electric PanelSeT SBM Series Steel Wall Box IP66, 200 mm x 800 mm x 120 mm NSYSBM208012

Schneider Electric NSYSBM208012 PanelSeT SBM Series Steel Wall Box is an industrial-grade enclosure designed for protection in demanding environments. With an IP66 rating, it offers excellent resistance to dust and powerful water jets, making it suitable for harsh indoor and outdoor applications.

The enclosure measures 200 mm in height, 800 mm in width, and 120 mm in depth, built from high-quality sheet steel finished in grey polyester powder coating (RAL 7035). The flat face, single-piece folded and welded body ensures sturdy construction and reliable protection against mechanical stresses.

The plain door includes captive screws with PZ2 screwdriver half-turn locks enabling secure closure and easy maintenance. A polyurethane sealing gasket provides tight environmental sealing. An M6 x 16 earth stud welded on the cover ensures dependable equipotential bonding, critical for electrical safety.

Internal mounting provisions consist of 2 or 3 drilled profiles compatible with mounting plates and DIN rails, facilitating modular equipment installation. The enclosure satisfies IK10 impact protection standards, capable of withstanding a 5 kg object dropped from 40 cm, making it robust against accidental impacts commonly encountered in industrial settings.

This Wall Box series complies with multiple stringent international standards such as LR, RoHS, REACH, DNV, BV, UL, and IEC 62208, reaffirming its quality and reliability. It is designed for industrial machines and building applications, especially suitable for environments like underground parking, tunnels, and other infrastructure projects.

Included with the enclosure are the door, six cover screws, and the enclosure body, enabling straightforward installation. This product is part of the Schneider Electric’s Better World initiative, designed for disassembly facilitating sustainability and recycling.

For robust, compliant, and versatile industrial electrical enclosures, this Schneider Electric PanelSeT SBM Steel Wall Box provides an optimal solution combining durability, safety, and ease of use.

Explore more enclosures and related industrial products at EnvMart to find the perfect fit for your electrical protection needs. Constructed with durable sheet steel and finished with a grey polyester powder coating for enhanced corrosion resistance.

Features a flat face box design that is wall mounted with a single-piece folded and welded body for structural integrity. The enclosure includes a plain removable door secured with PZ2 screwdriver captive screw locks, providing easy access and reliable sealing.

IP66 certification ensures dust-tight and protection against powerful water jets, suitable for harsh industrial environments. Meets IK10 impact resistance standard, protecting against mechanical shocks equivalent to a 5 kg object dropped from 40 cm height.

Equipped with a polyurethane sealing gasket and multiple half-turn threaded screws for secure closure and effective environmental sealing. Includes a welded M6 x 16 earth stud to provide equipotential bonding with the enclosure body.

Designed with multiple drilled profiles for mounting plates and DIN rails internally to facilitate equipment installation. Complies with international standards including LR, RoHS, REACH, DNV, BV, UL, and IEC 62208, ensuring safety and performance.

Ideal for industrial machine and building applications, including underground parking, road and railway tunnels, offering versatile use.
