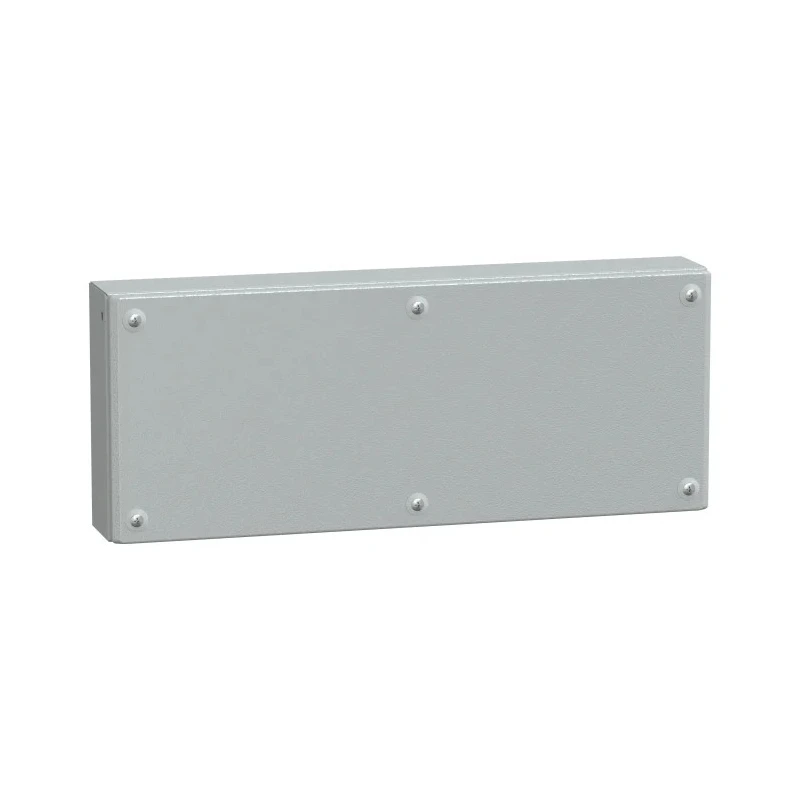

Schneider Electric PanelSeT SBM Series Steel Wall Box IP66 Grey 200 mm x 500 mm x 80 mm NSYSBM20508

Schneider Electric NSYSBM20508 PanelSeT SBM Series Steel Wall Box is an industrial-grade enclosure designed to protect sensitive electrical and electronic components in demanding environments. Constructed from robust sheet steel and coated with a durable polyester powder finish in grey (RAL 7035), this enclosure resists corrosion and mechanical damage, ensuring long-term reliability.

The enclosure measures 200 mm in height, 500 mm in width, and 80 mm in depth, providing ample space for diverse electrical installations. Its single-piece folded and welded body design enhances structural integrity and simplifies mounting on walls in industrial or commercial settings.

Featuring an IP66 rating per IEC 60529, this wall box offers complete protection against dust ingress as well as powerful water jets, ideal for outdoor or harsh indoor locations. Its IK10 rating confirms superior resistance to mechanical impacts equivalent to a 5 kg object dropped from 40 cm, safeguarding internal components from accidental knocks.

The cover is secured with 6 captive half-turn threaded screws and incorporates a polyurethane sealing gasket to maintain the enclosure's ingress protection. The locking mechanism uses PZ2 screwdriver captive screws for secure yet convenient access. An M6 x 16 earth stud welded into the cover provides reliable equipotential bonding between the door and body.

The rear of the enclosure includes 2 or 3 drilled profiles depending on model width, allowing installation of mounting plates and DIN rails for versatile internal mounting configurations. The enclosure does not include a chassis plate or gland plate but allows direct fixing through the rear or optional external mounting lugs.

Certified to multiple international standards including IEC 62208, REACH, LR, DNV, UL, BV, and RoHS, this product embodies Schneider Electric's commitment to safety, reliability, and sustainable design. It is part of the Better World product initiative featuring design for disassembly, supporting circular economy and easier end-of-life recycling.

Typical applications for the Spacial SBM-Series steel Wall Boxes include industrial machinery, building automation, underground parking facilities, road and railway tunnels, and other challenging environments requiring robust enclosure solutions.

Constructed from steel with polyester powder coating for durability. Provides IP66 ingress protection against dust and water jets. Rated IK10 for mechanical impact resistance. Single-piece body with folded, welded construction ensures strength.

Polyurethane sealing gasket and captive screws for secure sealing. Includes earth stud for equipotential bonding. Compatible with mounting plates and DIN rails via drilled rear profiles. Certifications include IEC 62208, REACH, UL, DNV, BV, and RoHS compliance.

Designed for industrial and building automation applications. Explore Schneider Electric enclosures within the Electrical Enclosures category on EnvMart for reliable, industrial-quality products.
