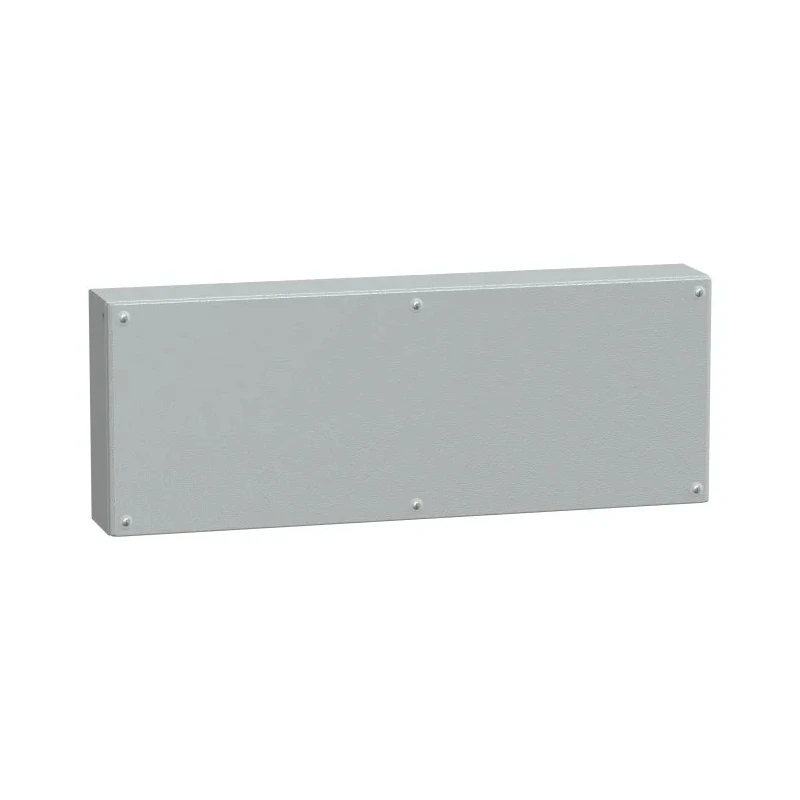

Schneider Electric PanelSeT SBM Series Steel Wall Box IP66 300 mm x 800 mm x 120 mm NSYSBM308012

Schneider Electric NSYSBM308012 PanelSeT SBM Series Steel Wall Box is a high-quality industrial enclosure designed for protection of sensitive electronics and electrical equipment in demanding environments.

This panel box features a robust steel construction coated with a grey polyester powder finish (RAL 7035) to provide superior corrosion resistance and long service life. The enclosure dimensions of 300 mm height, 800 mm width, and 120 mm depth offer ample space for panel mounting and internal components.

The enclosure is wall mounted with a flat-face design and single-piece body folded and welded for enhanced mechanical strength. It provides a dust-tight and water-resistant environment with an IP66 rating compliant with IEC 60529, suitable for outdoor and industrial use.

Protection against physical impacts is ensured by an IK10 rating conforming to IEC 62262, capable of withstanding impacts up to 20 joules (a 5 kg object dropped from 40 cm height). The cover locks securely using captive screws with a PZ2 screwdriver captive screw lock mechanism. A welded M6 x 16 earth stud provides equipotential bonding between cover and body for electrical safety.

The enclosure includes 1 enclosure door/cover, 6 cover screws, and 1 enclosure body supplied as a complete unit. It supports installation with 2 or 3 drilled profiles at the rear for mounting plates and DIN rails with fixing centres of 12.5 mm, facilitating flexible equipment installation.

Designed to meet various global standards such as REACH, LR, UL, DNV, RoHS, BV, and IEC 62208, this wall box is ideal for indoor and outdoor industrial machine applications, building automation, road tunnels, underground parking, and railway tunnel environments. Its tough design and protective characteristics ensure reliable equipment performance under harsh conditions.

Schneider Electric's PanelSeT SBM enclosures help businesses maintain efficient, secure electrical installations in industrial and infrastructure settings. Explore additional Schneider Electric electrical enclosures and related products on EnvMart for comprehensive solutions.

Constructed from durable steel with a grey polyester powder coating for enhanced corrosion resistance. Dimensions of 300 mm height, 800 mm width, and 120 mm depth suitable for diverse installation requirements. IP66 rated enclosure delivering dust-tight sealing and protection against powerful water jets.

Complies with IK10 impact rating, ensuring resistance to mechanical impact of up to 20 joules. Features screw-type door locks with captive screws for secure closure and easy access. Designed with a flat-face, one-piece body folded and welded for structural strength.

Equipped with a polyurethane sealing gasket on the cover to maintain enclosure integrity. Includes 1 enclosure door/cover, 6 cover screws, and 1 enclosure body in the supply package. Meets industry standards including REACH, LR, UL, DNV, RoHS, BV, and IEC 62208 certifications.

Suitable for industrial machine, building applications, underground parking lots, road and railway tunnels. Discover more high-quality Wall Boxes and industrial enclosures at EnvMart, your trusted platform for electrical and automation components.
