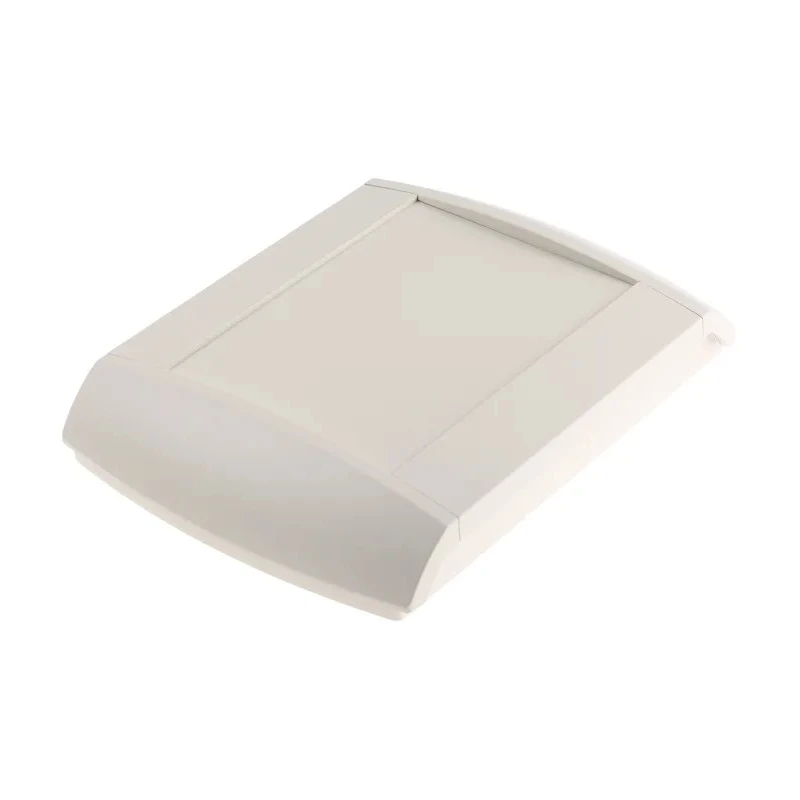

OKW DIATEC Series ABS Wall Box IP40 White 48mm x 270mm x 200mm

OKW 49094107R is an ABS plastic wall box enclosure from the DIATEC series, providing IP40 protection, measuring 48 mm in height, 270 mm in width, and 200 mm in depth. This contoured enclosure is engineered for housing wall-mounted and desktop electronic components with enhanced mechanical protection and aesthetic appeal.

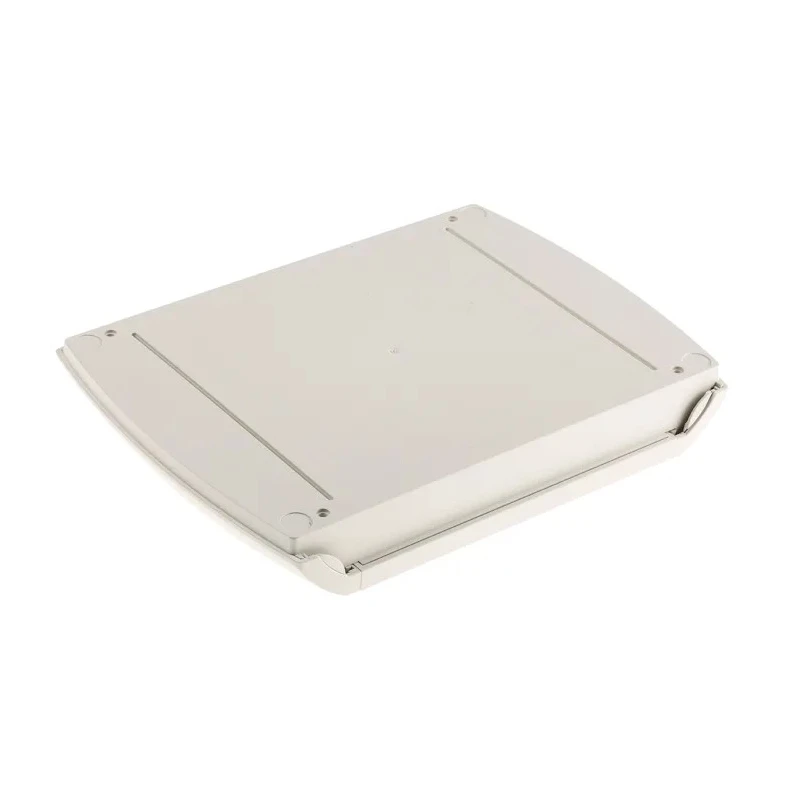

The enclosure features a four-part assembly comprising a base, top, and two snap-on side panels. This design facilitates easy assembly and maintenance. The base includes pre-cut knockouts allowing straightforward and secure wall mounting without needing to remove the top panel, optimizing installation efficiency.

The side panels are lockable, enabling anti-tampering measures for secured electronic housings. The enclosure's central recessed area accommodates membrane keypads, touchscreens, or display units, making it suitable for user interfaces or control panels.

Constructed from durable ABS material in white color, the enclosure combines robustness with lightweight characteristics, suitable for indoor electrical, automation, and electronics applications. It includes a fixing kit for enhanced mounting and adheres to UL standards, indicative of quality and safety. The design allows fitting of two 1.5V AA or a single 9V battery inside the enclosure for low-power device operation.

This IP40 rated enclosure is primarily suited for industrial, commercial, and laboratory electronics, offering reliable housing that protects against solid objects larger than 1 mm and provides moderate dust ingress protection.

Durable ABS plastic ensures robust protection with low weight. IP40 rating suitable for indoor environments requiring basic protection. Four-part assembly enables easy maintenance and assembly. Knockouts on base simplify wall mounting installation processes.

Lockable side panels enhance security against tampering. Compatible with membrane keypads and display units in the recessed area. Includes fixing kit for secure mounting. Battery accommodation for two AA or one 9V cells inside the enclosure.

Manufactured in Germany and compliant with UL standards.

This product is ideal for housing and protecting sensitive electronic devices in industrial, laboratory, HVAC, and commercial environments. Explore EnvMart's Electrical Enclosures category for similar packaging solutions and advanced Wall Box designs.
