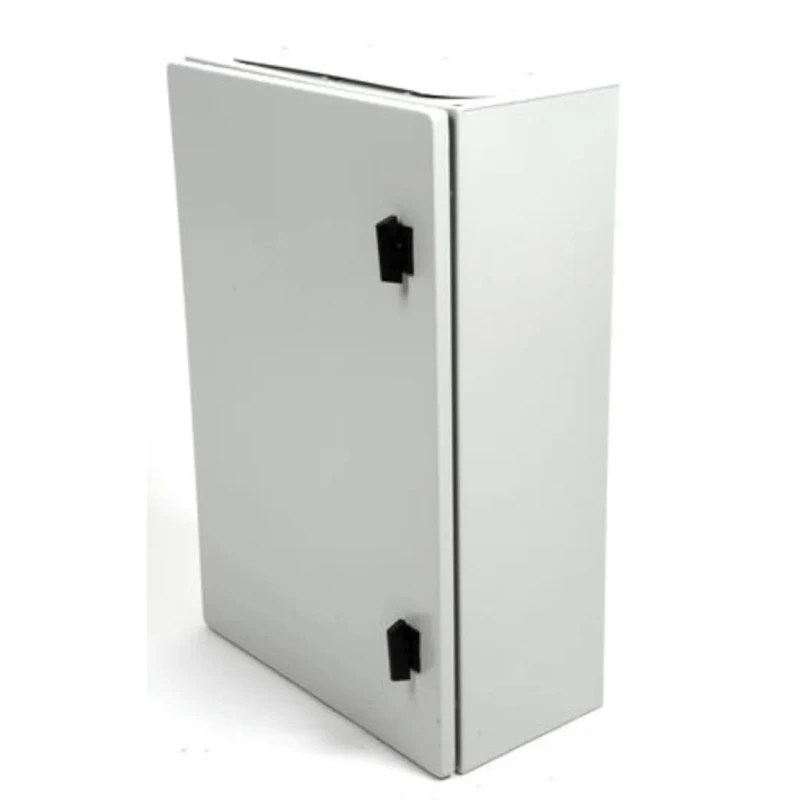

RS PRO Spacial CRN Series Steel Wall Box IP66 600 mm x 400 mm x 200 mm NSYCRN64200P

Schneider Electric NSYCRN64200P Spacial CRN Series Steel Wall Box is a high-quality enclosure designed to protect electrical and automation equipment in rigorous industrial settings. This steel wall box measures 600 mm in height, 400 mm in width, and 200 mm in depth, providing a compact yet versatile solution for housing sensitive devices and components.

Constructed from durable steel with an epoxy-polyester powder coated grey finish, the enclosure offers excellent corrosion resistance and robust mechanical protection. The enclosure is certified with an IP66 rating, ensuring it is dust-tight and protected against powerful water jets, making it suitable for harsh environments. It also holds an IK10 impact rating, assuring high resistance against physical impacts.

The box includes a double bar door lock system for secure access control and is fitted with a cable gland plate to facilitate professional cable entry and sealing. The polyurethane gasket seal provides a long-lasting water tightness feature critical for outdoor or damp conditions. Doors are removable with a convenient 120° hinge opening, reversible to suit installation preferences, supported by smart hinges that ease door removal and replacement.

Designed for wall mounting, the enclosure includes welded earth studs and back studs to support up to 50 kg/m² load, making it reliable for numerous applications including industrial automation, electrical distribution, and control panels. It complies with standards such as IEC 62208, UL, cULus, RoHS, and REACH, ensuring safety and regulatory conformance.

Typical applications for this Wall Box encompass industrial automation systems, electrical control cabinets, and electronics or industrial network housings. Its sturdy construction and protective features make it a preferred choice in manufacturing, water treatment plants, and commercial electrical installations.

Constructed with robust steel body for mechanical durability. Equipped with secure double bar locking mechanism. IP66 and IK10 rated for environmental and impact protection. Includes cable gland plate for efficient cable sealing.

Polyurethane seal for guaranteed water tightness. Doors removable and reversible with smart hinges. Supports wall mounting with welded earth studs. Corrosion-resistant epoxy-polyester powder finish. Compliant with IEC 62208, UL, cULus, RoHS, and REACH standards.

Suitable for industrial automation and electrical distribution applications.

Schneider Electric enclosures are designed for reliability and durability to meet demanding industrial needs. Explore the Spacial CRN series on EnvMart for further electrical enclosure options.
