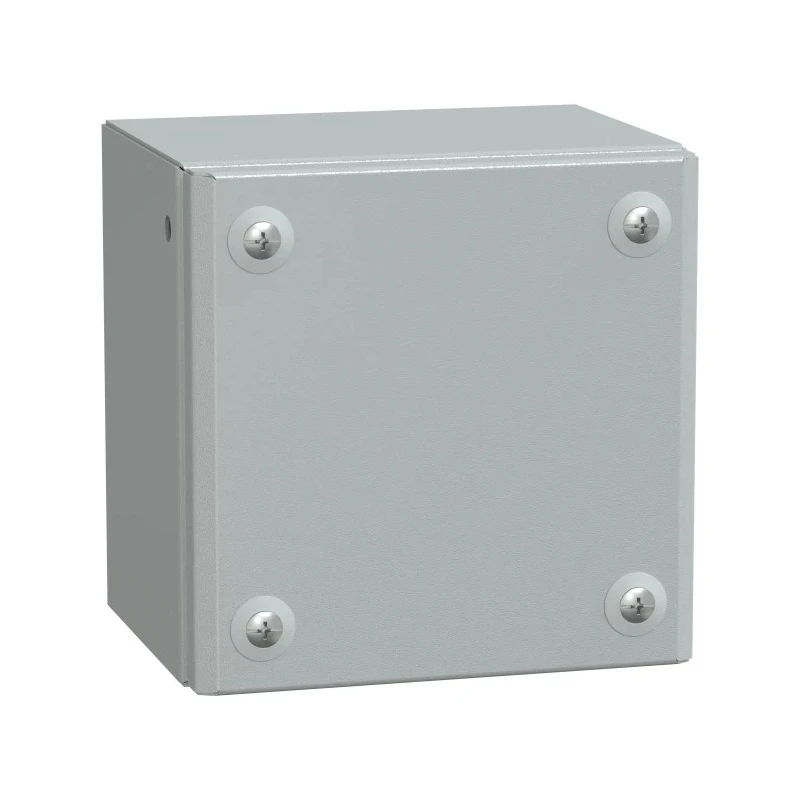

Schneider Electric PanelSeT SBM Series Steel Wall Box IP66, 150mm x 150mm x 120mm NSYSBM151512

Schneider Electric NSYSBM151512 PanelSeT SBM Series Steel Wall Box is designed for industrial and commercial electrical enclosure applications with demanding environmental protection requirements. This wall box, measuring 150 mm (H) x 150 mm (W) x 120 mm (D), features a sturdy steel construction with a grey polyester powder coating that provides long-lasting corrosion resistance, making it well suited to harsh environments such as factory floors, railway industry sites, and underground parking facilities.

Its IP66 ingress protection rating guarantees that internal electrical components remain safe from dust and powerful water jets, enabling deployment in exposed or dusty conditions. The unit is impact-resistant with an IK10 rating, offering protection against mechanical shocks up to 20 joules, thus enhancing durability under intense industrial use. The screw type door lock ensures secure closure with captive screws that prevent loss during installation.

The wall box is designed for internal panel mounting and supports a maximum load capacity of 50 kg/m² on the body, allowing flexible installation of various electrical components. Operating temperature range from -35°C to +80°C ensures performance stability in both cold and hot ambient conditions.

The single-piece construction effectively seals against environmental contaminants including moisture, dust, and airborne particles, ensuring reliable protection of sensitive equipment. Its compact external dimensions facilitate installation in areas with limited space, optimizing workspace utilization.

This wall box complies with UL standards and is classified under the Better World initiative, designed for disassembly to support sustainability. Manufactured in India, it meets industrial quality benchmarks while providing a robust enclosure solution for electrical and automation systems.

The wall box has external dimensions of 150 mm height, 150 mm width, and 120 mm depth. Constructed from robust steel with a corrosion-resistant polyester powder coating. Equipped with a screw type door lock for secure closure.

Features IP66 rating ensuring protection from dust and high-pressure water jets. Designed for panel internal mounting with a grey finish. Impact resistant with an IK10 rating and suitable for harsh industrial environments.

Capable of withstanding temperatures from -35°C to +80°C for versatile use. Compact size ideal for installation in cramped spaces on factory floors and railway industry facilities. Supports a loading capacity of 50 kg/m² for flexible component mounting.

Manufactured in India ensuring high quality and reliability.

Explore the selection of steel Wall Boxes and enclosures in the Electrical Enclosures category at EnvMart to find compatible products for your industrial and commercial electrical projects.
