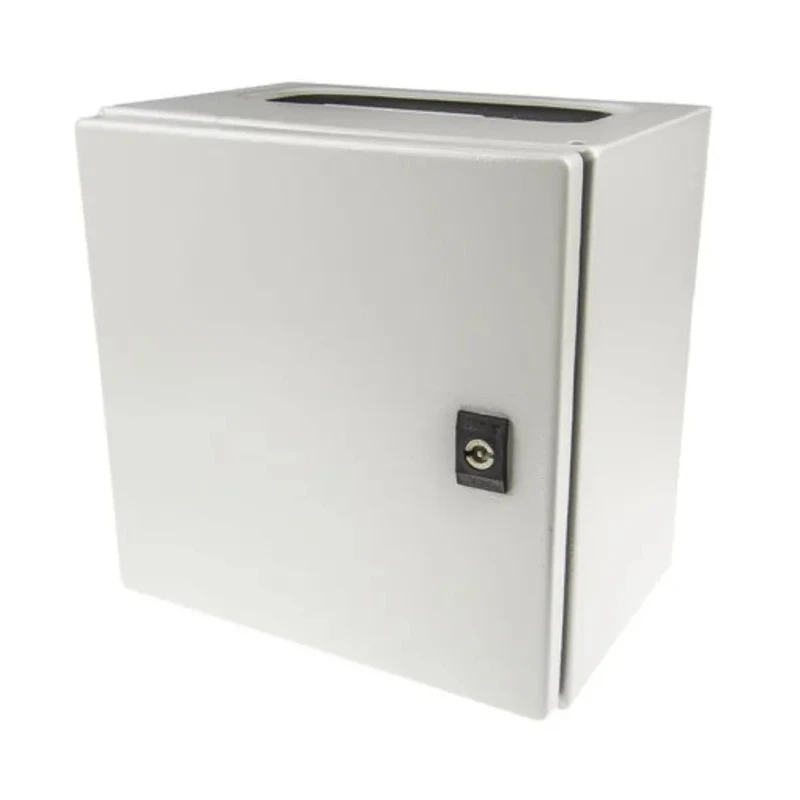

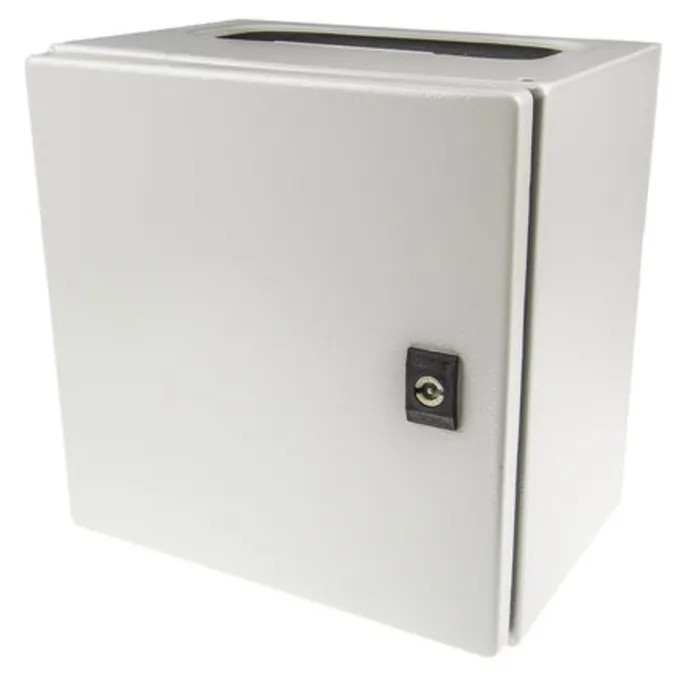

Schneider Electric Spacial CRN Series Steel Wall Box Enclosure IP66, IK10, 300 mm x 300 mm x 200 mm NSYCRN33200P

Schneider Electric NSYCRN33200P Spacial CRN Series steel wall box enclosure delivers reliable protection for industrial, automation, electrical distribution, and outdoor installations. With dimensions 300 mm height, 300 mm width, and 200 mm depth, this enclosure provides ample space for housing electrical components securely.

This robust enclosure is crafted from high-quality steel and finished with an epoxy-polyester powder coat in light grey (RAL 7035), ensuring excellent corrosion resistance and durability under harsh environments. The polyurethane seal around the door guarantees exceptional water and dust tightness compliant with the IP66 rating, making it suitable for outdoor and industrial settings.

The enclosure features a double bar 3 mm lock to safeguard inputs and internal equipment, along with a cable gland plate and mounting plate included for flexible mounting options. The door is removable, reversible with a 120° opening angle, facilitating convenient access and maintenance. The welded studs inside ensure proper earthing and secure component installation.

With an IK10 impact rating, the steel wall box offers strong mechanical resistance to external impacts. Certified by major standards such as cULus, IEC 62208, REACH, UL, and RoHS, it is engineered for compliance and safety.

Typical applications include industrial automation, industrial control systems, electrical distribution boards, and electronics housing in commercial and industrial environments. The Schneider Electric Spacial CRN series supports modular chassis options and various inserts to customize your setup per requirements.

Constructed from durable steel for long-lasting performance. Equipped with a double bar 3 mm lock for secure closure. Includes a cable gland plate and mounting plate for versatile installation. Designed for industrial and outdoor electrical applications due to IP66 water and dust protection.

Light grey epoxy-polyester powder finish ensures corrosion resistance. Removable door with 120° reversible opening for ease of use. Supports a maximum load of 50 kg/m2 on the door and enclosure body. Compliant with cULus, IEC 62208, REACH, UL, and RoHS standards.

Features polyurethane seals for guaranteed water tightness over time. Explore a broad range of electrical enclosures and Wall Boxes on EnvMart to find compatible products for your industrial and commercial needs.
