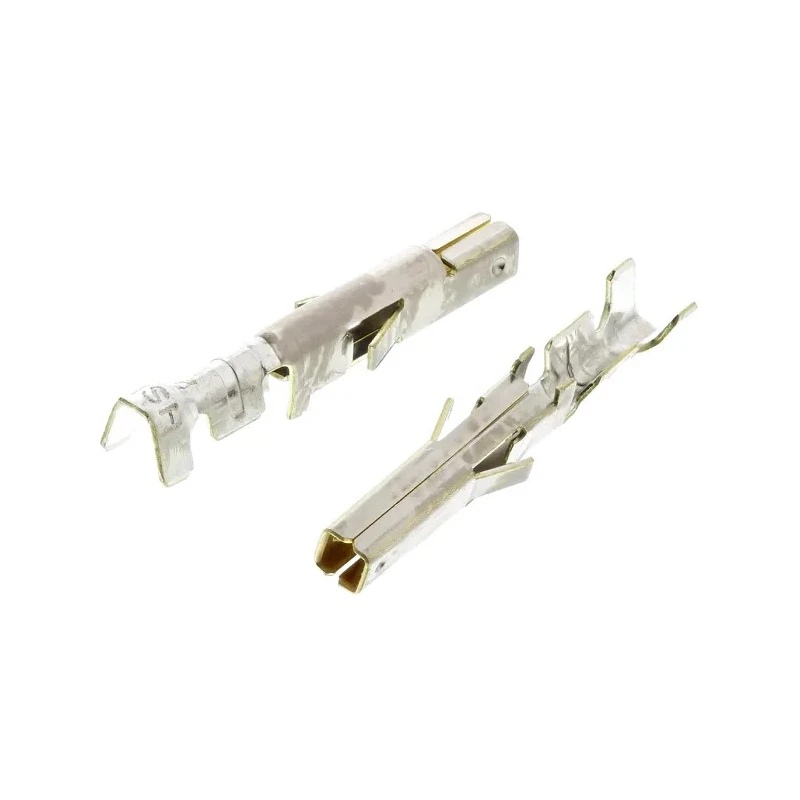

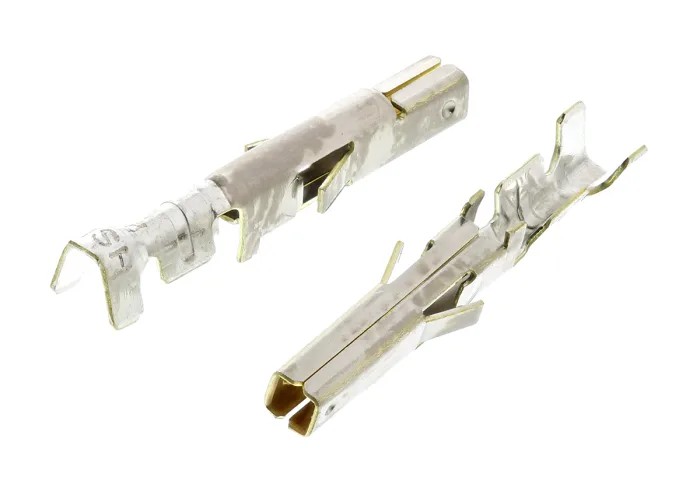

Molex 5556 Series Female Crimp Terminal, Brass with Gold Plating, 9A Current, 22-28 AWG Wire Size, Crimp 39-00-0435
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Constructed from brass with gold plating for enhanced conductivity and durability.
- Supports wire sizes ranging between 22 AWG and 28 AWG for versatile electrical applications.
- Rated for continuous current up to 9 amperes ensuring reliable power transmission.
- Capable of operating within a temperature range of -40°C to 105°C.
- Features crimp termination type for secure and stable electrical connections.
- Designed to withstand up to 30 mating cycles maintaining long-term performance.
- Gold plating minimizes contact resistance to improve electrical efficiency.
- Compatible with various wire insulation diameters and crimping tools for convenient installation.
Product Description
Molex 39-00-0435 Female Crimp Terminal is a high-quality connector component from the 5556 Series, designed for use with Mini-Fit Jr Connector Housings. Constructed from durable brass and finished with gold plating, this crimp terminal ensures excellent electrical conductivity and corrosion resistance. It accommodates wire sizes ranging from 22 AWG to 28 AWG (0.35mm² to 0.08mm²), making it suitable for diverse applications in electronics, industrial automation, and power distribution systems.
Rated to carry continuous currents up to 9 amperes, this crimp terminal supports reliable power transmission and is suitable for demanding environments with operating temperatures from -40°C up to 105°C. The crimp termination provides a secure and reliable mechanical and electrical connection with low contact resistance, optimized for use with compatible wire crimping tools. The terminal’s robust design can withstand up to 30 mating cycles without performance degradation, ensuring durability in repeated assembly and disassembly scenarios.
This terminal is commonly utilized in high-current connectors for robust electronic and power applications, including automation systems, control panels, and PCB connectors. Its gold plating enhances the terminal’s lifespan and operational reliability, making it a trusted choice for high-performance electrical connections.
Brass construction with gold plating for conductivity and corrosion resistance. Electrical current rating of 9A suitable for power applications. Supports wire sizes from 22 AWG to 28 AWG for installation flexibility. Crimp termination type ensures secure wire retention and low resistance.
Operating temperature range from -40°C to 105°C for versatility. Durable design rated for 30 mating cycles. Compatible with Mini-Fit Jr Connector Housings. Widely used in industrial, laboratory, electronics, and power distribution systems.
Set your projects on a foundation of reliable electrical connections with Molex Crimp Terminals. Explore our Electronics & Electricals category for more connectors and components tailored to industrial and commercial specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum continuous current of 9 amperes, ensuring reliable power transmission in various applications.
It supports wire sizes ranging from 22 AWG to 28 AWG, accommodating a variety of installation needs.
The terminal is constructed from brass and features gold plating, which enhances electrical conductivity and corrosion resistance.
It can operate within a temperature range of -40°C to 105°C, making it suitable for diverse environments.
This model is designed to withstand up to 30 mating cycles without performance degradation, ensuring durability during repeated use.
It features a crimp termination type, providing a secure and stable electrical connection.
Yes, it is designed for use with Mini-Fit Jr Connector Housings, ensuring proper fit and function.
The maximum contact resistance is 20 mΩ, which helps to minimize power loss and improve efficiency.
It is commonly utilized in high-current connectors for applications in industrial automation, control panels, and PCB connectors.
The minimum wire size this terminal can accommodate is 0.08 mm², allowing for versatile wiring options.
It can accommodate a maximum wire size of 0.35 mm², providing flexibility in wire selection.
The country of origin for this crimp terminal is India, indicating its manufacturing location.
