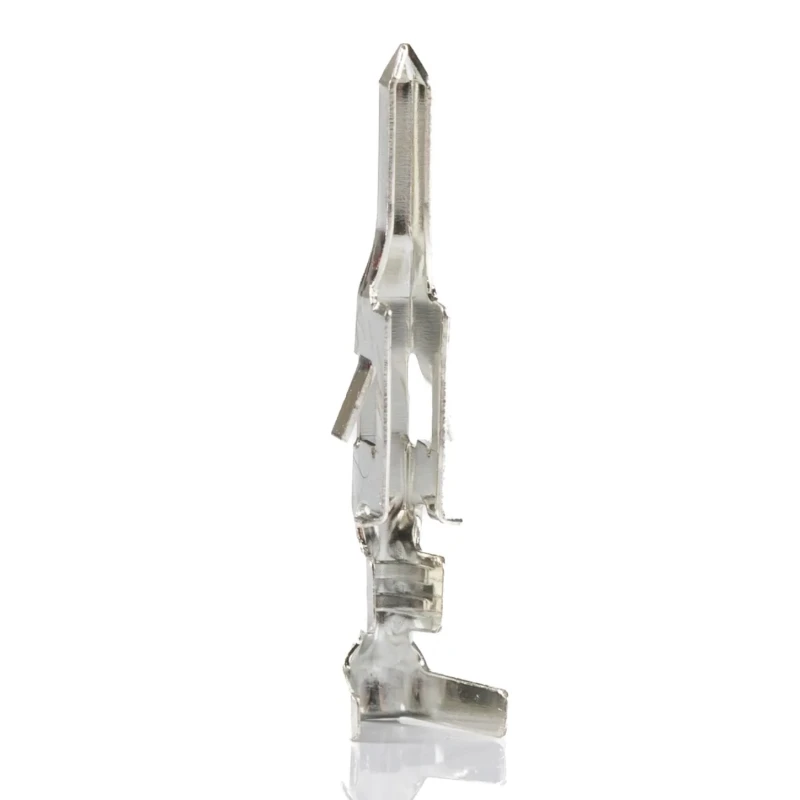

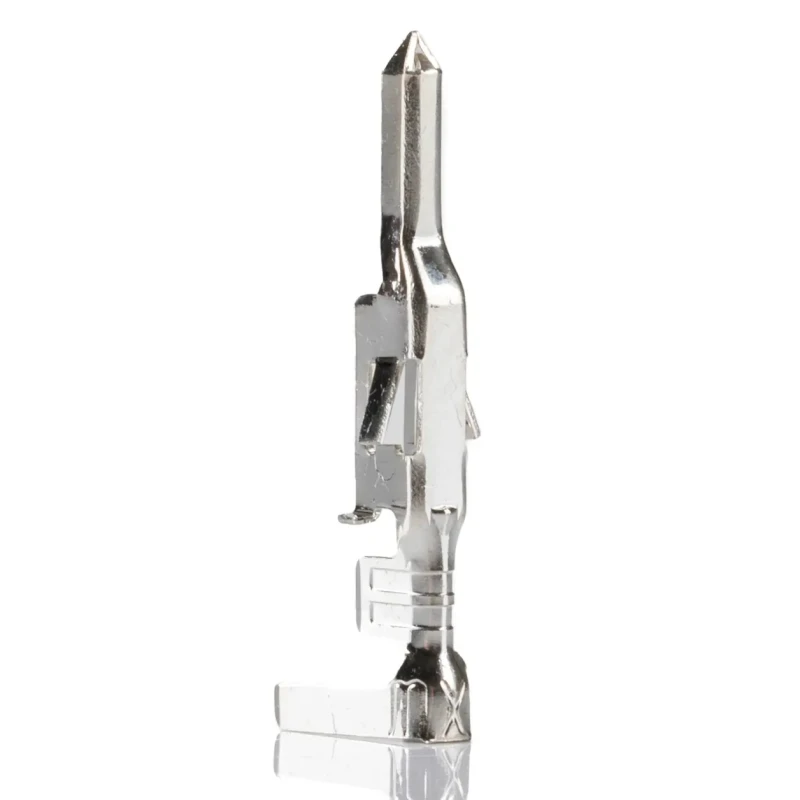

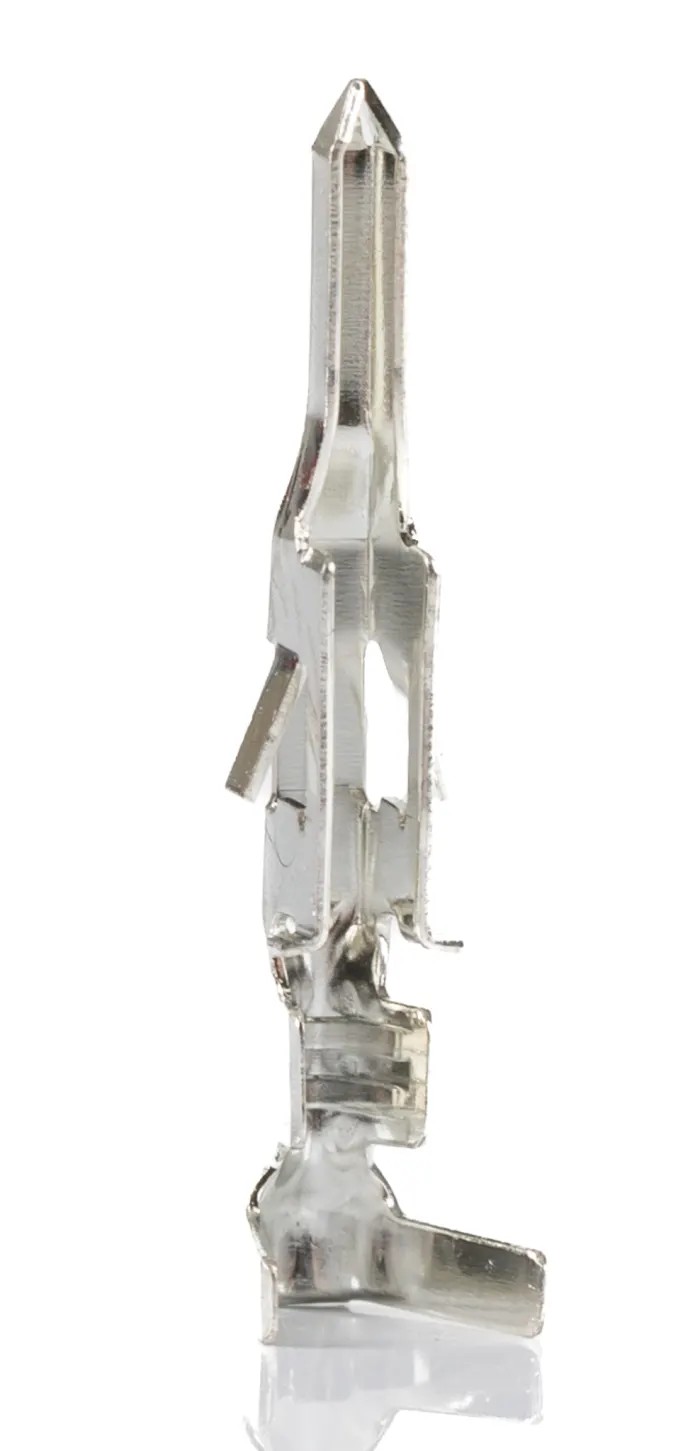

Molex 5558 Series Male Crimp Terminal 24 AWG Min Crimp 18 AWG Max Tin Plating Brass Contact 9A 105°C 39-00-0121
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- The terminal operates at up to 9 amperes current capacity.
- Suitable for Mini-Fit TPA and Mini-Fit BMI connector housings.
- Features tin plating for improved conductivity and corrosion resistance.
- Supports operating temperature range from -40°C to 105°C.
- Designed with a latch for secure fit in vibrating equipment.
- Maximum contact resistance is 10 milliohms ensuring reliable connections.
- Ideal for applications in automotive, industrial automation, medical equipment, and communications.
- Constructed from durable brass contact material.
Product Description
Molex 39-00-0121 5558 Series Male Crimp Terminal is a precision-engineered component designed to provide reliable electrical connections for Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings. The terminal features a brass contact with tin plating, which enhances conductivity and offers excellent corrosion resistance, extending service life even under harsh industrial and automotive conditions.
This male crimp terminal accommodates wire sizes ranging from 24 AWG (0.2 mm²) up to 18 AWG (0.8 mm²), supporting current ratings of up to 9 amperes. The terminal operates safely within a temperature range of -40°C to 105°C, making it suitable for demanding environments including industrial automation, medical equipment, robotics, communications, and consumer electronics.
Its crimp termination type ensures a secure and durable connection to wires, while the integrated latch mechanism guarantees a stable fit in connector housings, even in applications subjected to vibration such as washing machines and heavy machinery.
The maximum contact resistance is low at 10 milliohms, contributing to minimized power loss and enhanced electrical performance. As a product manufactured in the United States, this crimp terminal assures rigorous quality standards and manufacturing precision.
The terminal’s brass construction with tin plating offers durability and enhanced electrical conductivity. Rated for a current carrying capacity of 9 amperes at voltages up to 600V AC. Operating temperature range extends from -40°C to 105°C for versatile application environments.
Designed for use with Mini-Fit connector systems providing a secure latch locking mechanism. Low contact resistance ensures reliable signal and power transmission. Suitable for diverse sectors including automotive, industrial automation, medical, and communication devices.
Supports multiple wire sizes from 24 to 18 AWG for flexibility in wiring applications.
This Molex 5558 Series Male Crimp Terminal is an essential component for engineers and technicians requiring reliable and durable electrical contacts in industrial, laboratory, automotive, and commercial applications. Explore other high-quality connectors and crimp contacts in the Electronics Components category on EnvMart for complete wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a current capacity of up to 9 amperes.
It accommodates wire sizes ranging from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²).
The terminal operates safely within a temperature range of -40°C to 105°C.
It is constructed with a brass contact material and features tin plating for improved conductivity and corrosion resistance.
This terminal is designed for use with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
The maximum contact resistance is 10 milliohms, ensuring reliable connections.
Yes, it features an integrated latch mechanism that ensures a secure fit in connector housings, even in vibrating applications.
It is suitable for applications in automotive, industrial automation, medical equipment, and communications.
This model uses a crimp termination type for connecting wires securely.
This crimp terminal is manufactured in the United States.
It is rated for voltages up to 600V AC.
The tin plating enhances conductivity and offers excellent corrosion resistance, extending the service life of the terminal.
