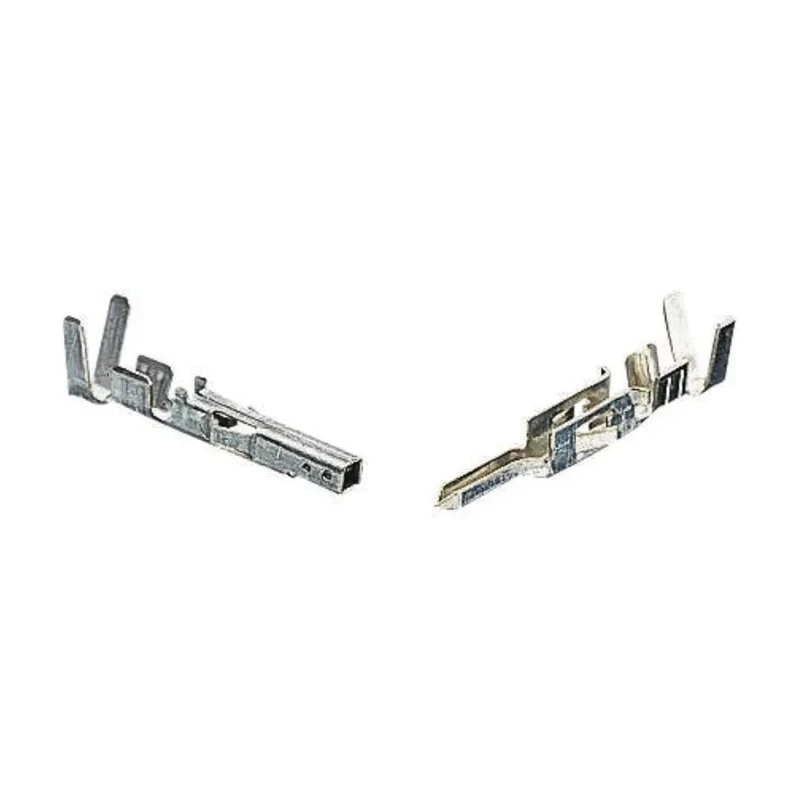

Molex 5556 Series Female Crimp Terminal for Mini-Fit Jr, Mini-Fit TPA and BMI Connector Housings, 9A Current 39-00-0184
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Gold plated contact enhances conductivity and corrosion resistance.
- Constructed from phosphor bronze for durability and performance.
- Suitable for high current applications up to 9A.
- Crimp termination ensures secure wire connections.
- Operates reliably from -40°C to 105°C temperature range.
- Low contact resistance of 10 milliohms for efficient power transfer.
- Compatible with Mini-Fit series connectors for flexible use.
- Designed for industrial, automotive, and consumer electronics applications.
Product Description
Molex 39-00-0184 Female Crimp Terminal from the 5556 series offers reliable and durable electrical connections designed for Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. This crimp terminal supports wire sizes ranging from 0.08 mm² (28 AWG) to 0.35 mm² (22 AWG) and is rated for a maximum current of 9 amps.
The terminal features a gold-plated phosphor bronze contact material that provides excellent conductivity while resisting corrosion and oxidation. The crimp termination method ensures a secure and robust electrical connection suitable for power applications.
Designed to operate within a temperature range of -40°C to 105°C, it is ideal for use in industrial machinery, automotive electrical systems, consumer electronics, and power supply interconnections. The terminal maintains a low maximum contact resistance of 10 milliohms, improving efficiency in power transfer and connection reliability.
The Molex 5556 series crimp contacts include multiple points of contact and locking tangs to secure them firmly in housing connectors, allowing up to 30 mating cycles while retaining performance and connection integrity.
Gold plating improves conductivity and prevents oxidation. Phosphor bronze construction provides mechanical strength and electrical stability. Crimp termination method offers secure and reliable wire connection. Compatible with Mini-Fit series connector housings for versatile applications.
Effective operating temperature range from -40°C to 105°C. Maximum current rating of 9A supports demanding power applications. Applications include automotive, industrial automation, communications, consumer electronics, and medical devices.
Designed to withstand multiple mating cycles for long-term use.
This product is essential for reliable wire-to-board and wire-to-wire connections in various electrical and electronic assemblies. The Molex 5556 Female Crimp Terminal is backed by the quality of the Molex brand and is a trusted choice for engineers and technicians involved in power connector solutions.
Explore our Electronics & Electricals category for more connector components and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 9 amps.
This terminal supports wire sizes ranging from 0.08 mm² (28 AWG) to 0.35 mm² (22 AWG).
It operates reliably within a temperature range of -40°C to 105°C.
The contact material is phosphor bronze, which enhances durability and performance.
The crimp termination method ensures a secure and robust electrical connection by mechanically joining the wire to the terminal.
The maximum contact resistance is 10 milliohms, which aids in efficient power transfer.
This terminal is compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
It is designed to withstand up to 30 mating cycles while retaining performance and connection integrity.
This crimp terminal is suitable for use in automotive, industrial automation, communications, consumer electronics, and medical devices.
The contact features gold plating, which enhances conductivity and prevents oxidation.
The country of origin for this product is India.
This crimp terminal is female gendered, designed for secure connections in various applications.
