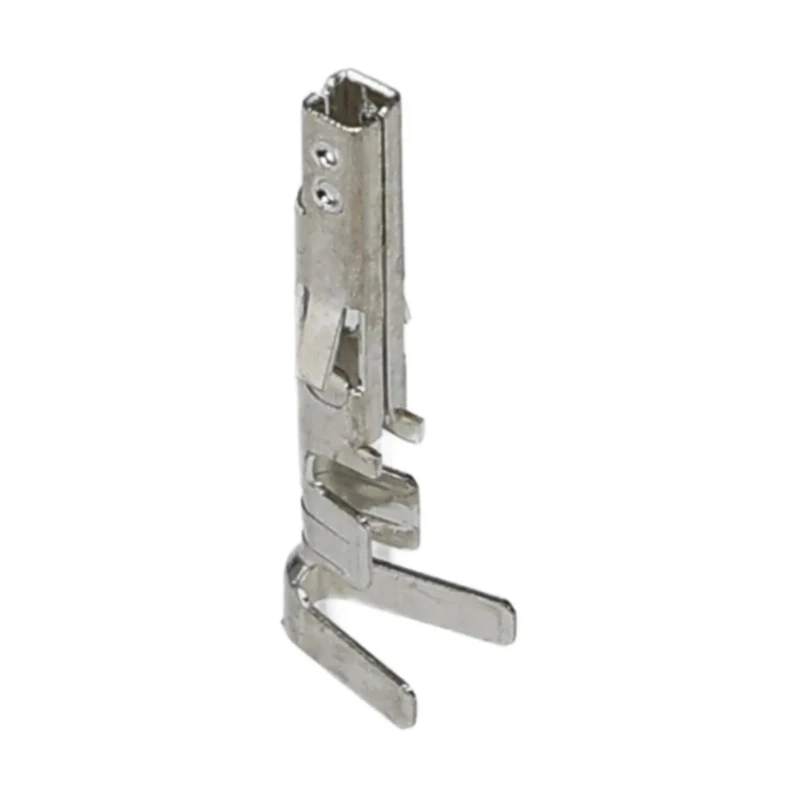

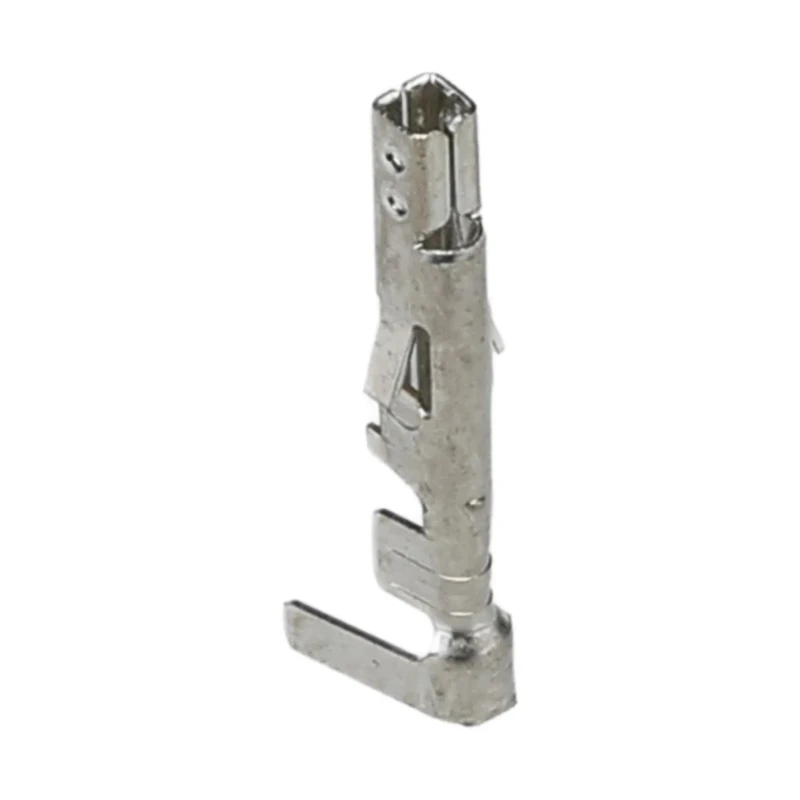

Molex 5556 Series Female Crimp Terminal, 24 AWG Min, 18 AWG Max, Tin-Plated Brass, 9A Current Rating, Model 39-00-0208
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Rated for a maximum current of 9 amperes ensuring efficient power transmission.
- Constructed from brass with tin plating for enhanced durability and corrosion resistance.
- Supports wire sizes from 0.2 mm² (24 AWG) to 0.8 mm² (18 AWG) for versatile applications.
- Operates reliably in temperature ranges from -40°C to +105°C.
- Designed for easy crimp termination providing secure and reliable connections.
- Suitable for wire-to-board and wire-to-wire connections in compact Mini-Fit connectors.
- Endures up to 30 mating cycles ensuring durability in repeated connections.
- Accommodates wire insulation diameters between 1.30 mm and 3.10 mm.
Product Description
Molex 39-00-0208 Female Crimp Terminal is engineered for professional electrical and electronic applications requiring robust, reliable connector solutions. This terminal is specifically designed to be compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. Its construction of brass material with tin plating ensures excellent conductivity and resistance to corrosion, making it suitable for demanding industrial environments.
Supporting wire sizes from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²), it enables versatile use in various wiring configurations. The terminal is rated for a maximum current of 9 amperes and can withstand operating temperatures ranging from -40°C to +105°C, making it reliable for both low- and high-temperature industrial setups.
This product supports a maximum voltage rating of 600 volts, ensuring safe operation in power distribution and control systems. The crimp termination type guarantees secure electrical connections with up to 30 mating cycles for long-lasting performance.
Applications of this terminal include use in power distribution systems, wire-to-board and wire-to-wire contacts, and compact designs utilizing Mini-Fit connectors typically found in automation, control, and industrial electronic assemblies.
Rated for 9A maximum current for effective power handling. Durable brass contact material with tin plating for corrosion resistance. Compatible with Mini-Fit Jr, TPA, and BMI connector housings. Wire size range from 0.2 mm² to 0.8 mm² (24 AWG to 18 AWG).
Temperature range -40°C to +105°C for versatile environmental tolerance. Designed for quick, secure crimp termination ensuring reliable connectivity. Supports up to 30 mating cycles for repeated use durability. Safe voltage rating up to 600V suitable for various industrial applications.
Explore more quality crimp contacts and terminal solutions in the Electronics & Electricals category at EnvMart for your industrial and laboratory electrical connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this crimp terminal is 9 amperes, ensuring efficient power transmission.
It supports wire sizes ranging from 0.2 mm² (24 AWG) to 0.8 mm² (18 AWG), allowing for versatile applications.
This terminal operates reliably within a temperature range of -40°C to +105°C, making it suitable for various environments.
It is designed for compatibility with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
The contact material is brass, which is tin-plated for enhanced durability and corrosion resistance.
This model can endure up to 30 mating cycles, ensuring durability in repeated connections.
The maximum voltage rating is 600 volts, making it suitable for safe operation in power distribution and control systems.
It uses a crimp termination type, which guarantees secure electrical connections.
The maximum contact resistance is 10 milliohms, ensuring efficient electrical performance.
The country of origin for this crimp terminal is India.
It is suitable for wire-to-board and wire-to-wire connections in compact designs, particularly in automation and control systems.
