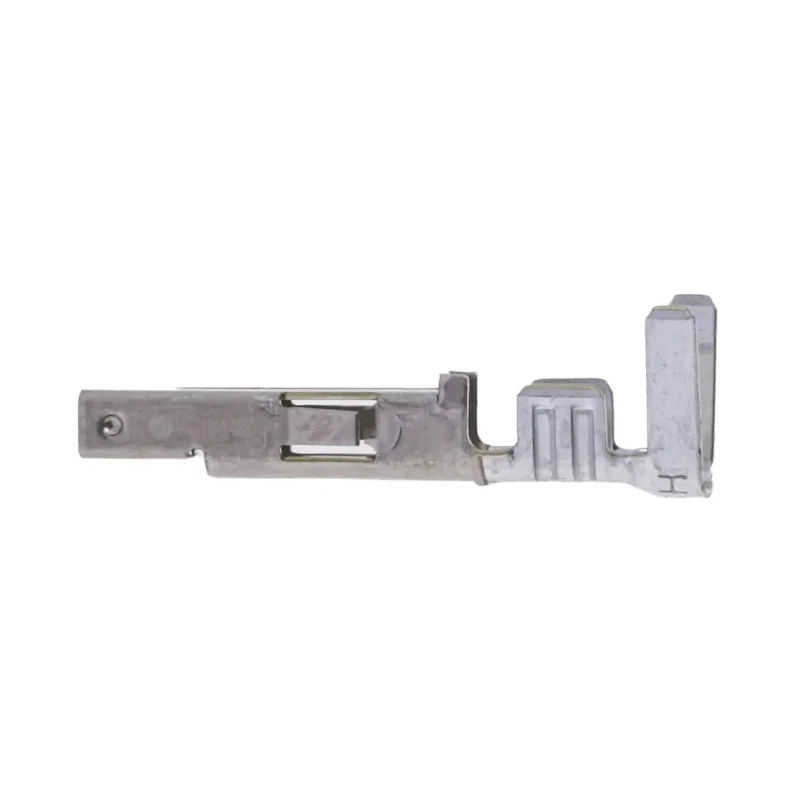

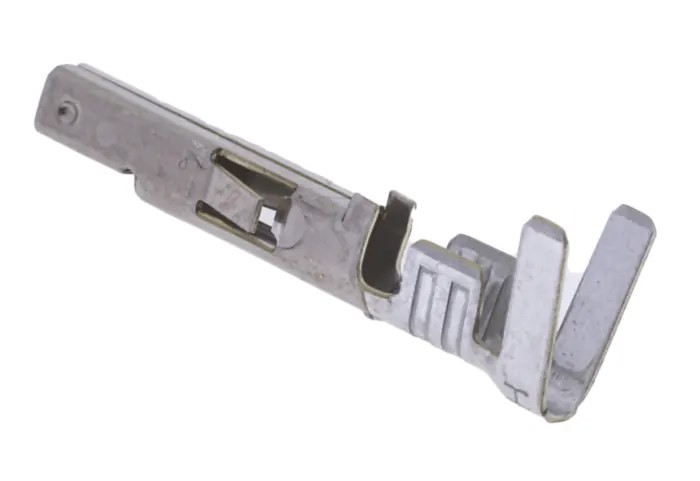

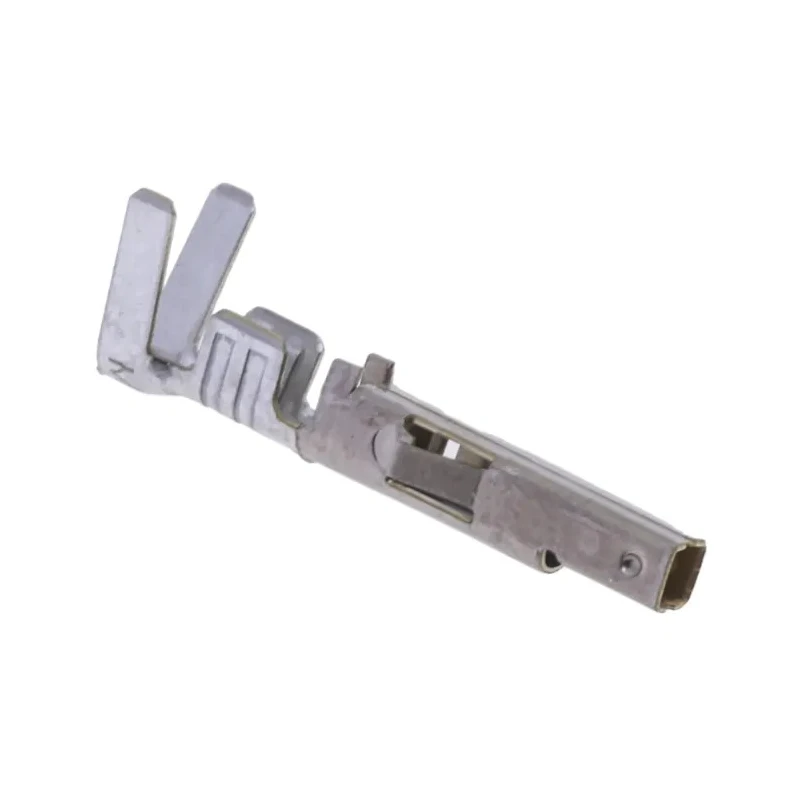

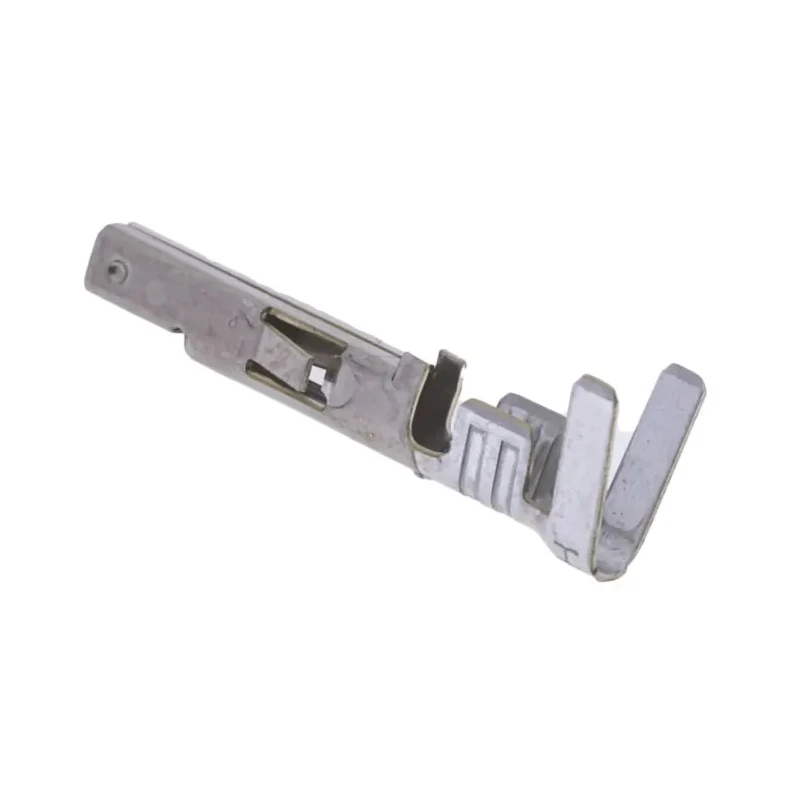

Molex 5556 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Brass Contact with Gold Plating 9A Current 39-00-0429

Molex 39-00-0429 is a female crimp terminal from the 5556 Series specifically engineered for use with Mini-Fit Jr Connector Housings. Constructed from high-quality brass with selective gold plating, this terminal ensures excellent corrosion resistance and durability in demanding electrical applications. The terminal supports wire sizes ranging from 24 AWG (0.2mm²) to 18 AWG (0.8mm²) and can handle a maximum continuous current of 9 amps.

This Crimp Terminal operates efficiently under a wide temperature range, from -40°C to +105°C, making it suitable for harsh industrial and automotive environments. The design features multiple points of contact and locking tangs that secure the terminal firmly within the Mini-Fit Jr connector, ensuring a reliable and long-lasting electrical connection.

These terminals are widely used in power connections within automation, automotive, industrial, medical, communications, and consumer electronics sectors. Their gold plated contacts minimize contact resistance and improve conductivity, while the crimp termination provides a strong mechanical bond with the wire.

Additional benefits include versatility for various wire insulation diameters ranging from 1.30 to 3.10 mm, making it compatible with multiple cable types. The terminal also complies with no specific standards but meets performance requirements for reliable operation in electrical and mechanical integration projects.

Durable brass construction with gold plating for corrosion resistance. Supports wire sizes of 24 AWG minimum and 18 AWG maximum. Maximum current rating of 9 amps suitable for power applications. Reliable crimp termination type providing strong wire-to-terminal connection.

Operating temperature range from -40°C to 105°C for harsh environments. Designed for Mini-Fit Jr connector housings with secure locking tangs. Low contact resistance of up to 10 milliohms ensures efficient conductivity. Multiple contact points for enhanced electrical reliability.

Ideal for industrial automation, automotive, medical, communications, and consumer electronics. Flexible wire insulation diameter range from 1.30 to 3.10 mm. Discover extensive electronics components at EnvMart for your industrial and electrical integration needs.
