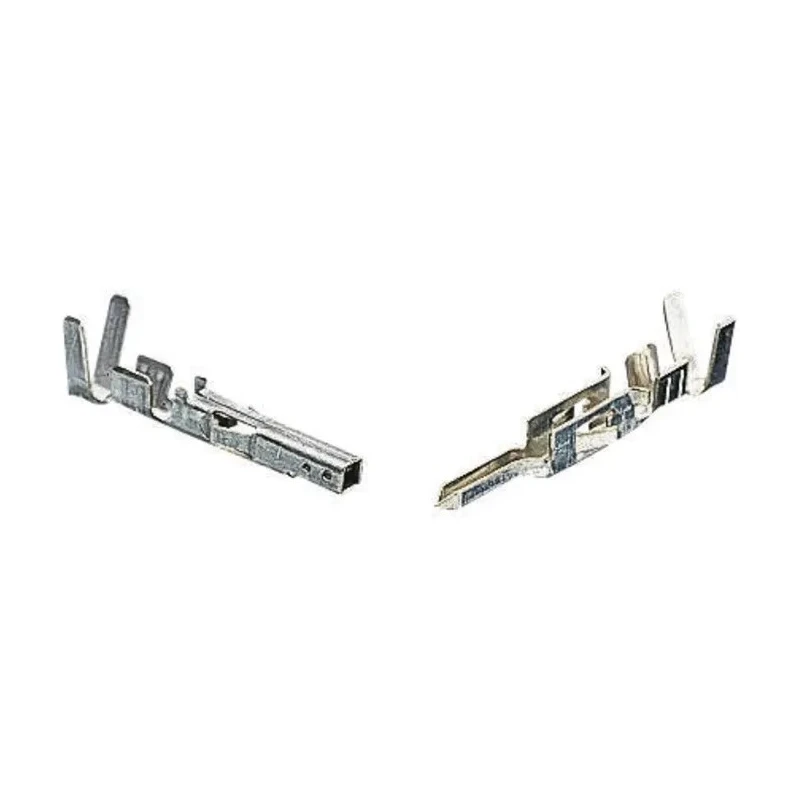

Molex 5556 Series Female Crimp Terminal, 28 AWG Min, 22 AWG Max, Gold Plated, Phosphor Bronze Contacts 39-00-0184
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with phosphor bronze contacts plated in gold for superior conductivity and corrosion resistance.
- Crimp termination ensures secure and reliable electrical connections.
- Supports up to 9A current capacity for high current applications.
- Operates in a temperature range from -40°C to 105°C, suitable for harsh environments.
- Low contact resistance of 10 milliohms enhances efficient power transfer.
- Compatible with a variety of Mini-Fit connector series for versatile usage.
- Designed to withstand up to 30 mating cycles maintaining connection integrity.
- Ideal for automotive, consumer electronics, industrial machinery, and power supply wiring.
Product Description
Molex 39-00-0184 Female Crimp Terminal from the 5556 Series is engineered for reliable and high-performance electrical connections in Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. This crimp terminal supports wire sizes from 0.08 mm² (28 AWG) up to 0.35 mm² (22 AWG), making it suitable for a range of wire gauge requirements.
The contacts are made from durable phosphor bronze with a gold plating that enhances conductivity, reduces oxidation, and improves corrosion resistance. With a maximum current rating of 9 amperes and a low contact resistance of 10 milliohms, this terminal delivers efficient power transfer crucial for various industrial and commercial applications.
This crimp terminal is designed for use in demanding temperature ranges, functioning reliably between -40°C to 105°C, making it ideal for automotive, industrial automation, consumer electronics, and power supply interconnections. The crimp termination ensures a secure mechanical and electrical bond, while the locking tangs guarantee firm retention within the connector housing.
The product supports up to 30 mating cycles without degradation of contact performance, ensuring long-lasting and dependable connectivity. Its compatibility with various Mini-Fit connector series adds versatility for assembly and repair tasks across multiple sectors.
Phosphor bronze material with gold plating for contact reliability. 9A maximum current carrying capacity for high power applications. Fully compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. Temperature rating from -40°C to 105°C for broad environmental usage.
Low contact resistance of 10 mΩ for effective electrical performance. Designed for multiple mating cycles for sustained use. Applications include automotive wiring harnesses, industrial machinery, consumer electronics, and power supplies.
Set includes one female Crimp Terminal. This component is an essential part for assembling quality wire-to-board and wire-to-wire connections in electronic and electrical systems. Explore more Mini-Fit series connectors and crimp contacts in our catalog for complete connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum current capacity of 9 amperes, making it suitable for high current applications.
It is compatible with wire sizes ranging from 0.08 mm² (28 AWG) to 0.35 mm² (22 AWG).
The terminal operates reliably in a temperature range from -40°C to 105°C, suitable for harsh environments.
The contacts are made from phosphor bronze and are plated in gold, enhancing conductivity and corrosion resistance.
It is designed to withstand up to 30 mating cycles while maintaining connection integrity.
This terminal is compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
The maximum contact resistance is 10 milliohms, which enhances efficient power transfer.
It uses crimp termination, ensuring a secure mechanical and electrical bond.
It is suitable for applications in automotive wiring harnesses, industrial machinery, consumer electronics, and power supplies.
This terminal is a female crimp terminal, designed for secure connections.
The gold plating on the contacts enhances conductivity, reduces oxidation, and improves corrosion resistance, ensuring reliable connections.
The product is manufactured in India.
