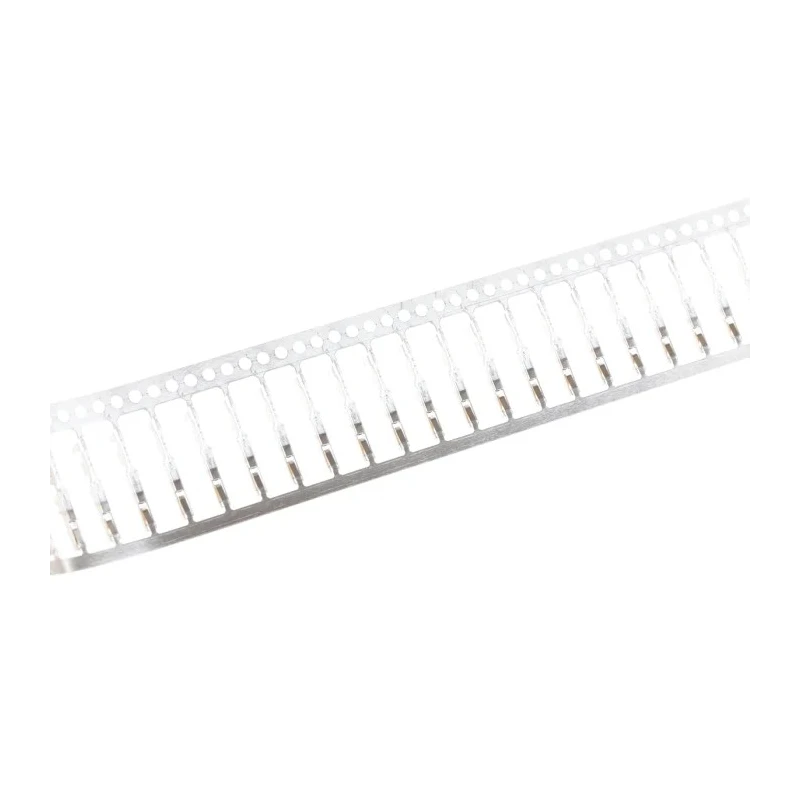

Molex 90119 Series Female Crimp Terminal, 28 AWG Min Crimp, 26 AWG Max, 3A Current, Gold Plated 90119-0122

Molex 90119-0122 is a high-quality female crimp terminal specifically engineered for the C-Grid III connector housings. This terminal supports wire sizes from 28 AWG minimum to 26 AWG maximum and is rated for a maximum current of 3A, making it ideal for precise and reliable electrical connections in consumer electronics and commercial vehicles.

Crafted from phosphor bronze with a choice of selective gold plating over nickel, the contact ensures excellent conductivity and corrosion resistance. The crimp termination system is designed to securely hold wires, maintaining connection integrity under mechanical stress or vibration.

Operating temperature ranges from -55°C to 105°C, providing robust performance in harsh environments. The insulation headers are fabricated from 15% glass-filled polyester (PBT), combining electrical insulation with mechanical strength. The housing material is polyphenylene oxide, known for its thermal resistance and dimensional stability.

This terminal features a box design and a uniform locking system, enabling compatibility with various C-Grid III housings including models 90156, 90123, 90142, 90143, and 90160 series. It supports a working voltage up to 350 Vac/dc and has a maximum contact resistance of 20 mΩ for efficient current flow.

The header pin size measures 0.64 square mm, and the recommended PCB hole diameter is 1 mm, allowing for seamless PCB integration during assembly. For crimping, specialized tools such as stock number 781-2737 for 28-26 AWG terminals are recommended to ensure secure and effective crimping operations.

Constructed from phosphor bronze with gold plating for superior conductivity. Rated for a maximum current of 3A and 350 Vac/dc voltage. Compatible with multiple C-Grid III connector housing series for flexible design use.

High mechanical and thermal endurance with operating range from -55°C to 105°C. Designed for precise, secure crimp termination with appropriate tooling. Insulation and housing materials provide electrical insulation and thermal stability.

Applicable in consumer electronics and commercial vehicle systems. Facilitates easy PCB assembly with recommended 1 mm hole diameter. Box type contact with uniform locking enhances connector reliability.

This Molex product is ideal for industrial and commercial electrical connector applications requiring robust, reliable Crimp Terminals. Explore wider Molex C-Grid III compatible connectors and accessories in EnvMart's Electronics & Electricals category for your next project.
