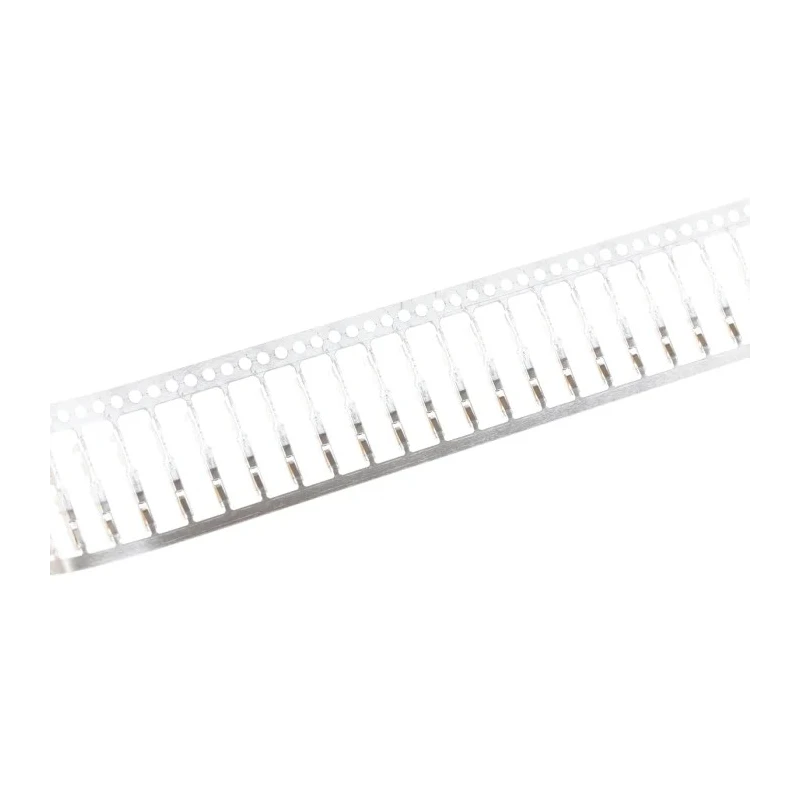

Molex 90119 Series Female Crimp Terminal, 28 AWG Min Crimp, 26 AWG Max, Gold Plated Phosphor Bronze Contact, 3A 90119-0122

Molex 90119-0122 female crimp terminal is engineered for precise and reliable electrical connections within C-Grid III connector housing systems. Supporting wire sizes from 28 AWG minimum crimp to 26 AWG maximum, it ensures versatility suitable for diverse wiring requirements.

The contact is made from phosphor bronze material, chosen for its mechanical strength and excellent conductive properties, with a selective gold plating over nickel to enhance conductivity and resist corrosion. This terminal supports a maximum continuous current rating of 3 amperes and withstands operating temperatures ranging from -55°C up to 105°C, making it ideal for demanding industrial and commercial environments.

The terminal termination type is crimp, offering a secure and robust connection, with a recommended PCB hole diameter of 1 mm for reliable solderless insertion. The design features a box style contact with a uniform locking system, compatible with various C-Grid III series crimp housings such as 90156, 90123, 90142, 90143, and 90160, improving modularity and application flexibility.

Insulation headers are manufactured using 15% glass-filled polyester (PBT) for durability, combined with a polyphenylene oxide housing that ensures electrical insulation and thermal resistance. Tools for extraction and insertion of these terminals are available separately, facilitating easy installation and maintenance on production lines or during repairs.

This Crimp Terminal series is widely used in consumer electronics and commercial vehicle systems, where reliable electrical performance and durability are critical. It provides effective current flow and mechanical robustness, improving system reliability and lifecycle.

Constructed with phosphor bronze contact material for durability. Gold plated contact for improved conductivity and corrosion resistance. Rated for a maximum current of 3 amperes. Operates reliably between -55°C and 105°C temperatures.

Designed for crimp termination with a recommended PCB hole diameter of 1 mm. Compatible with multiple C-Grid III series crimp housings. Features a box design with uniform locking system for secure connection. Insulation headers made from 15% glass-filled polyester (PBT) with a polyphenylene oxide housing.

Extraction and insertion tools available separately for installation and maintenance. Ideal for use in consumer electronics and commercial vehicles applications. Explore our extensive range of electronic connectors and terminators at EnvMart for specialized industrial, commercial, and laboratory applications.
