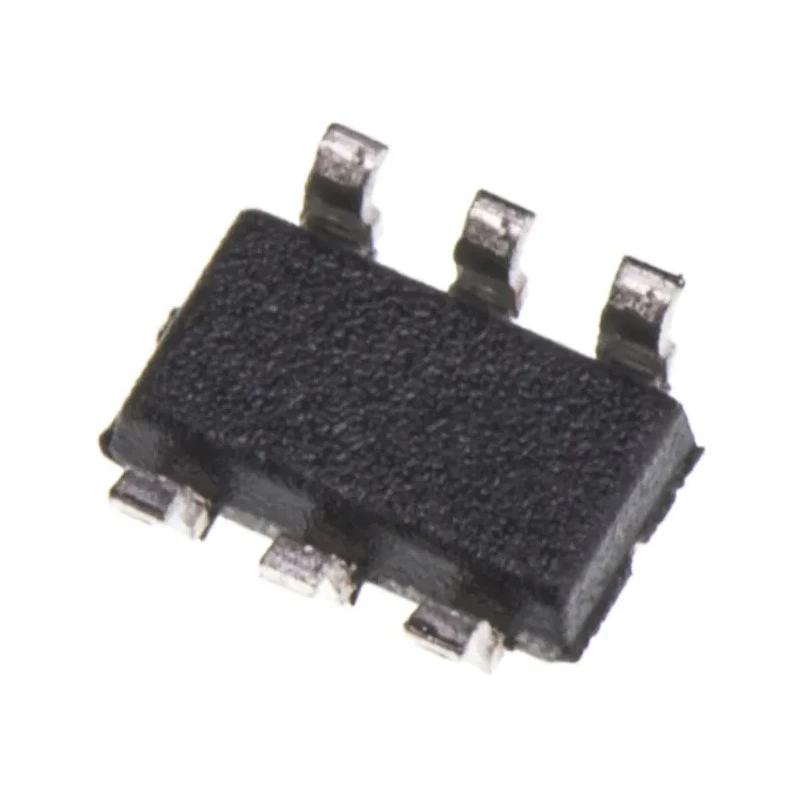

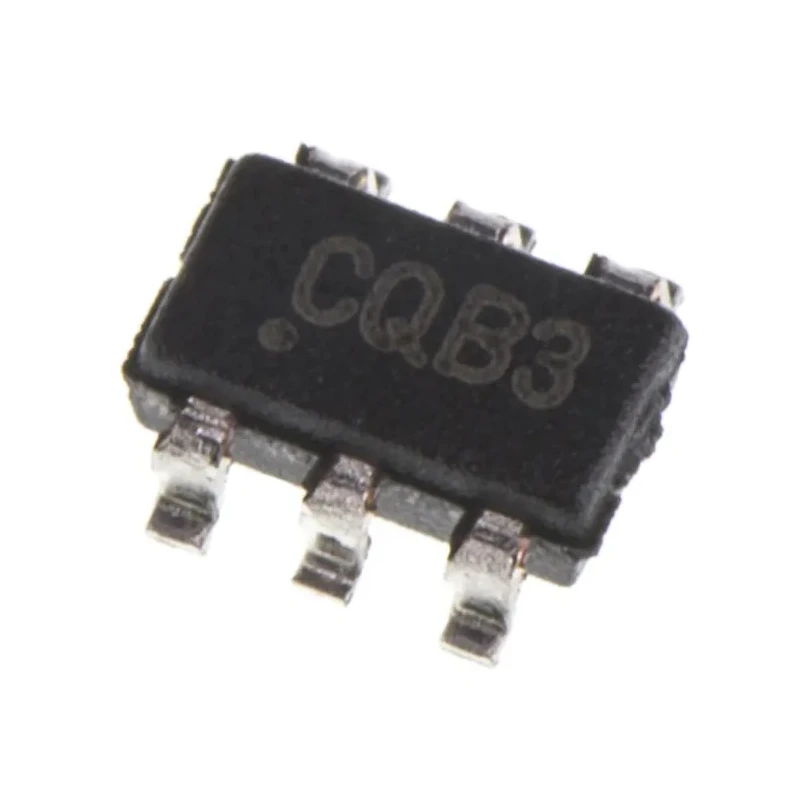

Microchip 16-bit Delta Sigma Analog to Digital Converter 0.02 ksps, Serial-I2C Interface, 6-Pin SOT-23 MCP3425A0T-E/CH
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Microchip |
| Height | 1.45mm |
| Length | 3.1mm |
| Model | MCP3425A0T-E/CH |
| Mount Type | Surface |
| Sampling rate | 0.02ksps |
| Series | MCP3425 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Architecture | Delta Sigma |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
| Programable Data rate options are | 15 SPS, 60 SPS or 240 SPS |
| Microchip 1 16 bit- ADC 0.02 ksps, 6-Pin SOT-23Brand | Microchip |
Key Features
- Delta Sigma architecture for high resolution and accuracy.
- Single ADC channel with 16-bit resolution.
- Surface mount SOT-23 package with 6 pins for compact PCB integration.
- Supports a serial I2C interface for simple device communication.
- Programmable data rates of 15 SPS, 60 SPS or 240 SPS for flexible applications.
- Operates within temperature range of -40°C to 85°C suitable for industrial environments.
- Supply voltage range from 5 V minimum up to 5.5 V maximum.
- Complies with automotive standard AEC-Q100 ensuring reliability.
Product Description
Microchip MCP3425A0T-E/CH is a high-performance 16-bit delta sigma analog to digital converter designed for precision voltage measurement applications. Housed in a small 6-Pin SOT-23 surface-mount package, it offers a compact solution suitable for embedded systems requiring accurate data conversion.
This ADC features a single ADC channel with a delta sigma architecture enabling high resolution and excellent noise immunity. It provides a low sampling rate of 0.02 ksps with programmable data rates options of 15 SPS, 60 SPS, or 240 SPS, allowing customization based on application speed and accuracy requirements.
The device interfaces via a serial I2C communication protocol, simplifying integration with microcontrollers and streamlining system design. It supports input voltage signals and operates reliably across a wide temperature range from -40°C to 85°C, making it suitable for harsh industrial and automotive environments. The MCP3425 series meets the AEC-Q100 automotive standard, ensuring robustness and quality for automotive applications.
The device requires a supply voltage ranging between 5 V and 5.5 V, enabling compatibility with standard 5 V systems. Its compact dimensions of 3.1 mm length and 1.45 mm height help in minimizing PCB space usage on densely populated boards. The MCP3425 ADC is ideal for industrial, laboratory, automotive, and embedded electronic applications where precise analog-to-digital conversion is paramount.
Delta Sigma architecture for high resolution and accuracy. Single ADC channel with 16-bit resolution. 6-Pin SOT-23 surface mount package for compact design. Serial I2C interface for easy system integration. Programmable data rates: 15 SPS, 60 SPS, or 240 SPS.
Operating temperature range: -40°C to 85°C for harsh environments. Supply voltage: 5.0 V to 5.5 V for standard voltage compatibility. Automotive standard AEC-Q100 compliant for reliability. Small package dimensions: 3.1 mm length, 1.45 mm height.
Explore the range of Microchip Analogue to Digital Converters available at EnvMart for varied industrial and automotive applications requiring precision measurement and digital conversion.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a resolution of 16 bits, allowing for precise voltage measurements.
The MCP3425A0T-E/CH offers programmable data rates of 15 SPS, 60 SPS, or 240 SPS, providing flexibility for various applications.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh industrial and automotive environments.
This model uses a serial I2C interface for communication, simplifying integration with microcontrollers.
The supply voltage for the MCP3425A0T-E/CH ranges from 5 V to 5.5 V, allowing compatibility with standard 5 V systems.
This ADC has a length of 3.1 mm and a height of 1.45 mm, allowing for compact PCB integration.
The MCP3425A0T-E/CH features a single ADC channel for voltage measurement applications.
It utilizes a Delta Sigma architecture, which provides high resolution and excellent noise immunity.
Yes, it complies with the AEC-Q100 automotive standard, ensuring reliability for automotive applications.
It is housed in a 6-Pin SOT-23 surface mount package, suitable for compact designs.
This model supports voltage input signals for its analog to digital conversion.
It has a low sampling rate of 0.02 ksps, suitable for applications requiring less frequent data acquisition.
