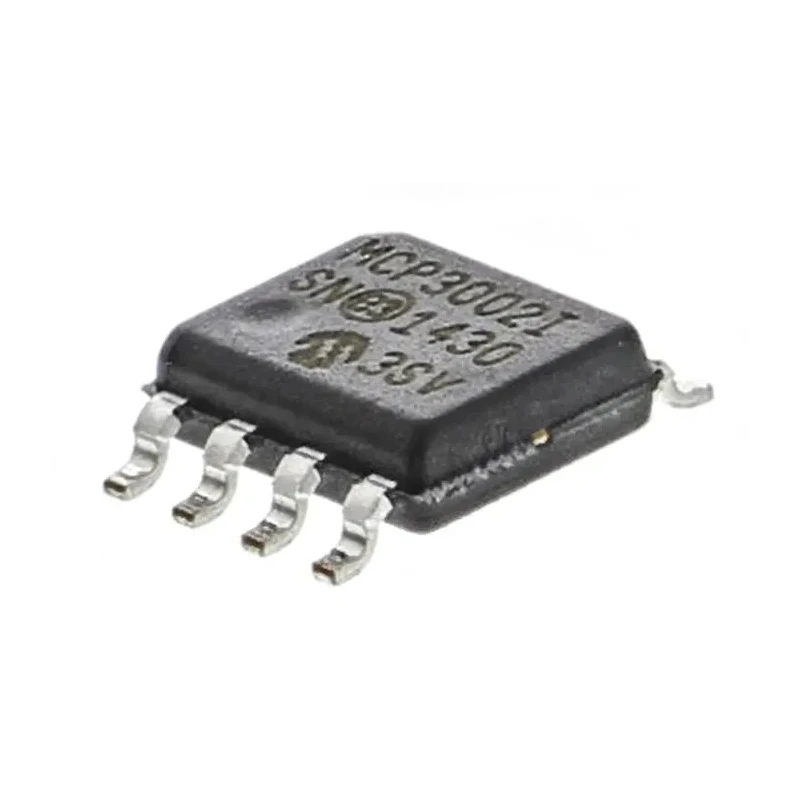

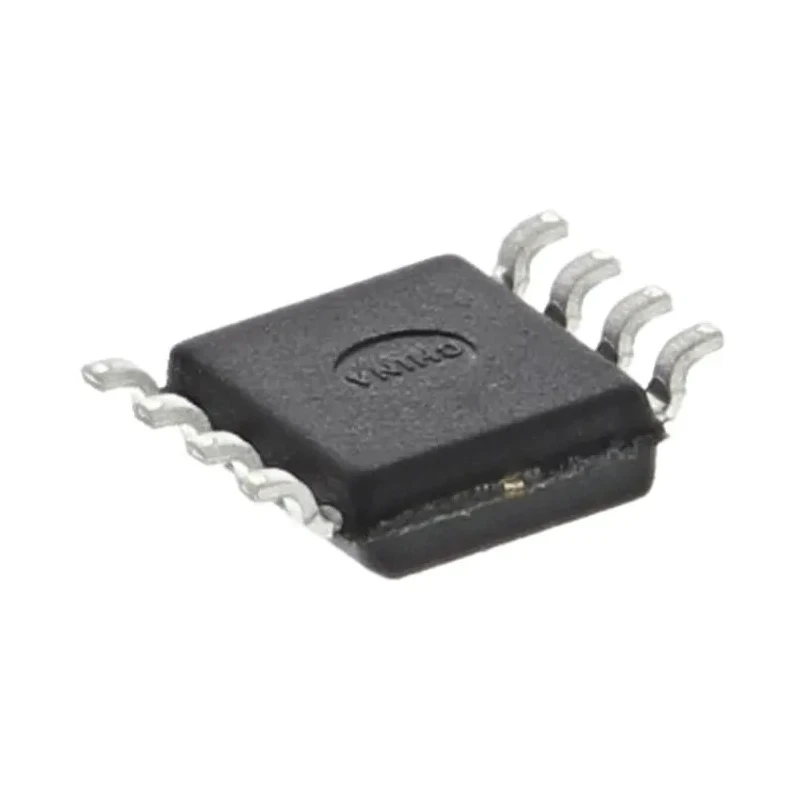

Microchip 2-Channel 10-Bit SAR Analogue-to-Digital Converter 200 ksps 8-Pin SOIC MCP3002-I/SN

Microchip MCP3002-I/SN is a dual 10-bit SAR analogue-to-digital converter capable of sampling rates up to 200 ksps. It is packaged in a compact 8-pin SOIC surface mount package, making it suitable for use in embedded electronics, automotive systems, industrial controls, and signal processing applications requiring precise digital measurement of analogue voltages.

The SAR architecture enables fast and efficient conversion with low power consumption and high accuracy. Featuring a SPI interface, it integrates seamlessly with microcontrollers and DSP systems, facilitating streamlined data communication. Its operating temperature range from -40°C to 85°C and conformance to the AEC-Q100 automotive standard attest to its robustness and reliability for demanding environments.

The MCP3002-I/SN provides two analogue input channels with 10-bit resolution, supporting voltage input type signals. The supply voltage range is 5V to 5.5V, optimized for standard system voltages. Physical dimensions include a height of 1.44mm and length of 5.01mm, ensuring minimal PCB footprint for compact designs.

This product is ideal for applications including industrial automation, automotive sensor data acquisition, instrumentation, and embedded system design. Its surface mount SOIC package enhances manufacturability and durability in mass production.

Key features include high sampling speed, dual input channels, industrial operating temperature range, automotive grade standard compliance, and efficient SPI interface communication, making MCP3002-I/SN a reliable choice for precise analogue-to-digital conversion needs.

This ADC features SAR architecture ideal for precise and efficient signal conversion. It supports SPI interface for easy integration in embedded systems. Designed for surface mount applications with compact SOIC packaging.

Operational temperature range from -40°C to 85°C suits industrial and automotive environments. Voltage input type with a supply voltage range of 5V to 5.5V ensures compatibility with standard microcontrollers. Pin count of 8 facilitates straightforward PCB layout and connection.

The device complies with automotive standard AEC-Q100, ensuring reliability in automotive applications. Small physical dimensions of 1.44mm height and 5.01mm length enable space-saving designs. Maximum sampling speed of 200 ksps supports high-speed data acquisition needs.

Package type SOIC ensures durability and ease of soldering in manufacturing processes.
