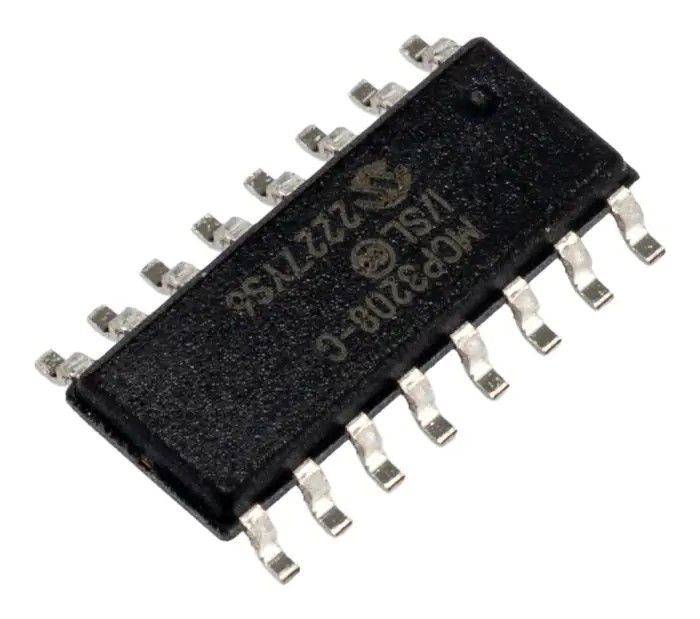

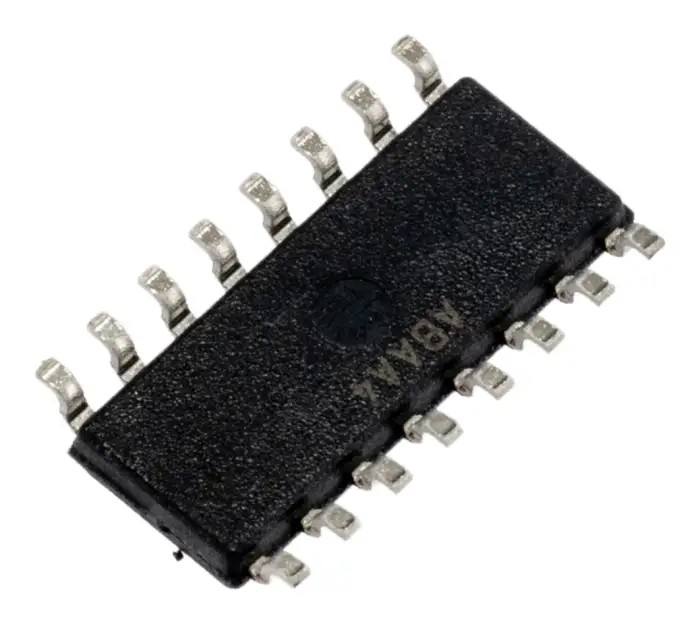

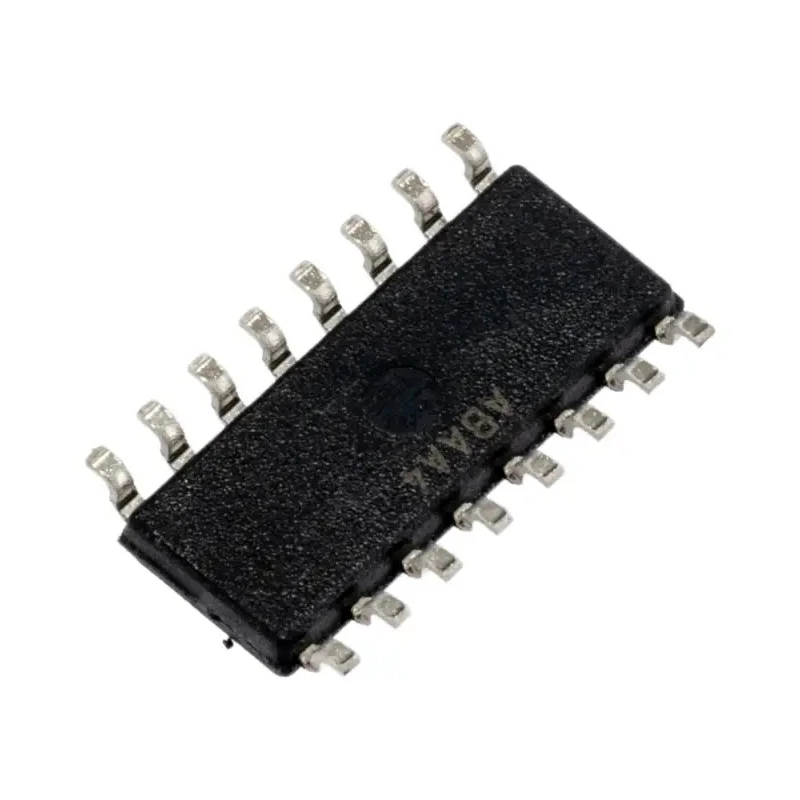

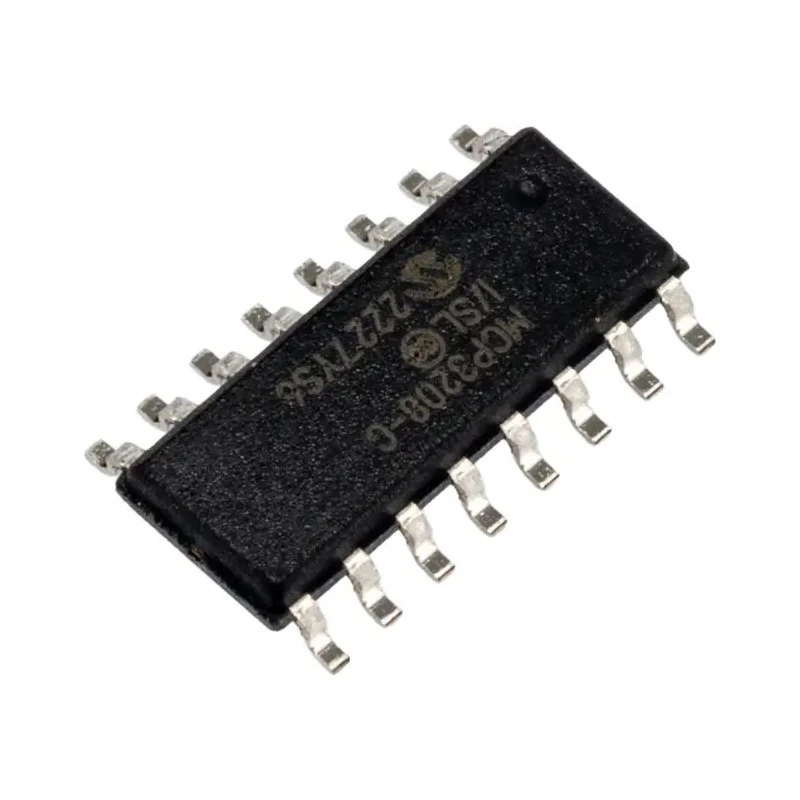

Microchip 8-Channel 12-Bit SAR Architecture Analog-to-Digital Converter, 100 ksps, 16-Pin SOIC MCP3208-CI/SL
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.75mm |
| Length | 10.2mm |
| Model | MCP3208-CI/SL |
| Mount Type | Surface |
| Sampling rate | 100ksps |
| Series | MCP3208 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 8 |
Key Features
- Employs successive approximation register (SAR) architecture for efficient and accurate analog-to-digital conversion.
- Features 8 ADC channels supporting multiple simultaneous input measurements.
- Operates at a sampling rate of 100 thousand samples per second (ksps) ensuring fast data acquisition.
- Comes in a compact 16-pin Small Outline Integrated Circuit (SOIC) package suited for surface mount technology.
- Supports input voltage within 5V to 5.5V supply range with a maximum of 125°C operating temperature.
- Offers high resolution of 12 bits suitable for detailed analog signal digitization in embedded systems.
- Complies with automotive standard AEC-Q100, suitable for rigorous applications.
- Temperature operational range spans from -40°C to 125°C, ensuring durability in harsh environments.
Product Description
Microchip MCP3208-CI/SL is a versatile 8-Channel 12-Bit successive approximation register (SAR) analog-to-digital converter (ADC) designed for high-speed, accurate voltage to digital conversions. Operating at 100 ksps and housed in a 16-pin SOIC package, this device supports SPI serial interface and surface mounting, making it ideal for streamlined PCB design.
Featuring 12-bit resolution and 8 ADC channels, the MCP3208 offers precise multi-channel analog input measurement capability which is well suited for industrial instrumentation, automotive sensor interfacing, embedded systems, and IoT devices where high accuracy and speed are crucial.
The device supports supply voltages from 5V up to 5.5V, capable of operating within a wide temperature range from -40°C to 125°C, thus ensuring reliability in challenging environments. Compliance with the automotive AEC-Q100 standard further enhances its robustness and suitability for automotive electronics systems.
With a small form factor of 10.2 mm length and 1.75 mm height, and packaged in a 16-pin SOIC surface mount package, integration into complex circuit designs is simplified while maintaining performance quality. Its SAR architecture enables low power consumption with rapid sampling rates, ideal for power-sensitive applications.
Employs SAR architecture for efficient analog-to-digital conversion. 8 input ADC channels for multisignal processing. 100 ksps sampling rate enables fast and reliable data acquisition. Surface mount 16-pin SOIC packaging for compact PCB layouts.
Operates with a 5 to 5.5 V supply voltage range. Temperature range from -40°C to 125°C for broad operational environments. Passes AEC-Q100 automotive industry standard for reliability. 12-bit resolution provides high signal precision.
SPI interface for serial communication with microcontrollers and processors. Supplied in tube packaging ready for insertion in manufacturing lines.
This ADC is optimized for industrial, automotive, embedded system, and data acquisition applications requiring rapid, precise analog signal conversion. Its build and standards compliance make it suitable for demanding settings including automotive sensor arrays and laboratory instrumentation. Available for purchase with verified quality assurance, Microchip MCP3208-CI/SL is a vital component for electronic developers and system integrators.
Explore additional electronic components and semiconductor products on EnvMart to complement your systems and enhance your project workflows.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sampling rate of this model is 100 ksps, allowing for fast data acquisition.
It supports 8 ADC channels for multiple simultaneous input measurements.
This unit has a resolution of 12 bits, providing detailed analog signal digitization.
The device operates with a supply voltage range from 5V to 5.5V.
It is housed in a 16-pin Small Outline Integrated Circuit (SOIC) package, suitable for surface mount technology.
The MCP3208 operates within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
It supports an SPI serial interface for communication with microcontrollers and processors.
This model complies with the automotive standard AEC-Q100, ensuring reliability in automotive applications.
The dimensions of this model are 1.75 mm in height and 10.2 mm in length.
It employs a successive approximation register (SAR) architecture for efficient analog-to-digital conversion.
The input type for this ADC is voltage, suitable for measuring analog signals.
This model integrates 8 ADCs, allowing for multi-signal processing.
