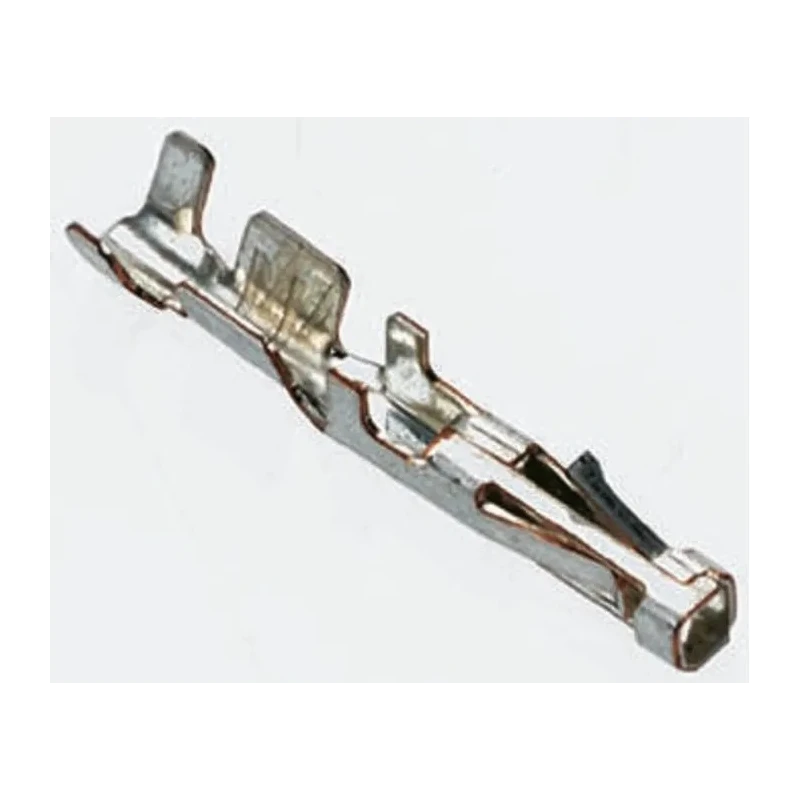

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 3A Current Tin Plated Brass 770986-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 16.74mm |
| Model | 770986-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Compatible with Mini-Universal MATE-N-LOK connector housings for reliable connections.
- Supports a wire size range from 26 AWG (minimum) to 22 AWG (maximum).
- Constructed from brass with tin plating for durability and corrosion resistance.
- Crimp termination type for secure wire attachment.
- Operates reliably between -30°C and 105°C temperature ranges.
- Features low contact resistance of up to 20 milliohms for efficient electrical performance.
- Compact length of 16.74 mm enabling use in tight spaces.
Product Description
TE Connectivity 770986-1 is a female crimp terminal from the Mini-Universal MATE-N-LOK Series, designed for use with Mini-Universal MATE-N-LOK connector housings. It supports a continuous current rating of 3 amperes, making it suitable for low to moderate power electronic applications.
Manufactured from brass material and plated with tin, this terminal offers enhanced electrical conductivity and excellent corrosion resistance. Its crimp termination ensures secure mechanical and electrical connection with wires ranging from 26 AWG (0.1 mm²) to 22 AWG (0.4 mm²).
Engineered to operate within a wide temperature range from -30°C to 105°C, it is ideal for varying environmental conditions encountered in industrial, commercial, and electronic devices.
The terminal features a low maximum contact resistance of 20 milliohms, ensuring minimal signal loss and reliable connectivity. With a compact length of 16.74 mm, it is suitable for use in constrained spaces, supporting high-density PCB assemblies and wire harnesses.
Compatible with Mini-Universal MATE-N-LOK connector housings for secure connections. Supports wire sizes from 26 AWG to 22 AWG. Constructed from tin-plated brass for durability and conductivity. Crimp termination type providing reliable wire attachment.
Rated for operating temperatures from -30°C to 105°C. Maximum contact resistance of 20 milliohms ensures efficient electrical performance. Compact 16.74 mm length suitable for tight installations.
This TE Connectivity terminal is commonly used in electronics manufacturing, automotive wiring harnesses, industrial control panels, and instrumentation equipment. Its robust engineering supports demanding electrical connections in a variety of sectors including manufacturing, automation, and consumer electronics.
Explore more advanced connector components and toolsets in the EnvMart collection for professional industrial and laboratory applications.
Explore more products in our PCB Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal has a continuous current rating of 3 amperes, making it suitable for low to moderate power electronic applications.
It supports a wire size range from 26 AWG (0.1 mm²) to 22 AWG (0.4 mm²).
The maximum contact resistance is 20 milliohms, ensuring efficient electrical performance and minimal signal loss.
It operates reliably within a temperature range of -30°C to 105°C, suitable for various environmental conditions.
The terminal is constructed from brass and features tin plating for enhanced electrical conductivity and corrosion resistance.
This model has a compact length of 16.74 mm, making it suitable for tight installations.
It uses a crimp termination type, providing a secure mechanical and electrical connection with wires.
Yes, it is compatible with Mini-Universal MATE-N-LOK connector housings for reliable connections.
This terminal is commonly used in electronics manufacturing, automotive wiring harnesses, industrial control panels, and instrumentation equipment.
This terminal is a female crimp terminal, designed for use in various connector applications.
The country of origin for this terminal is India.
It belongs to the Mini-Universal MATE-N-LOK Series, which is designed for specific connector applications.
