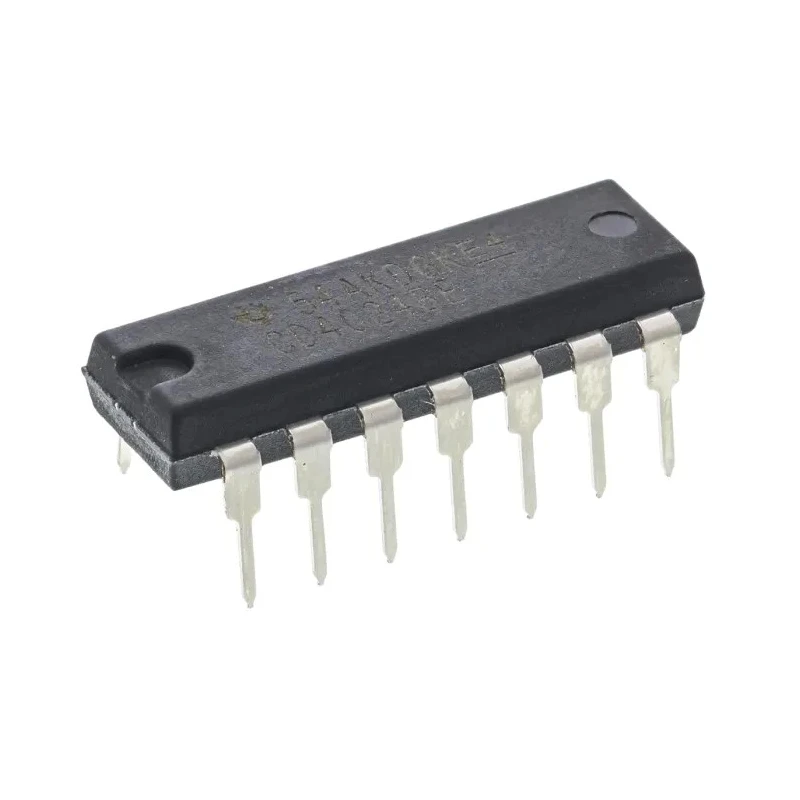

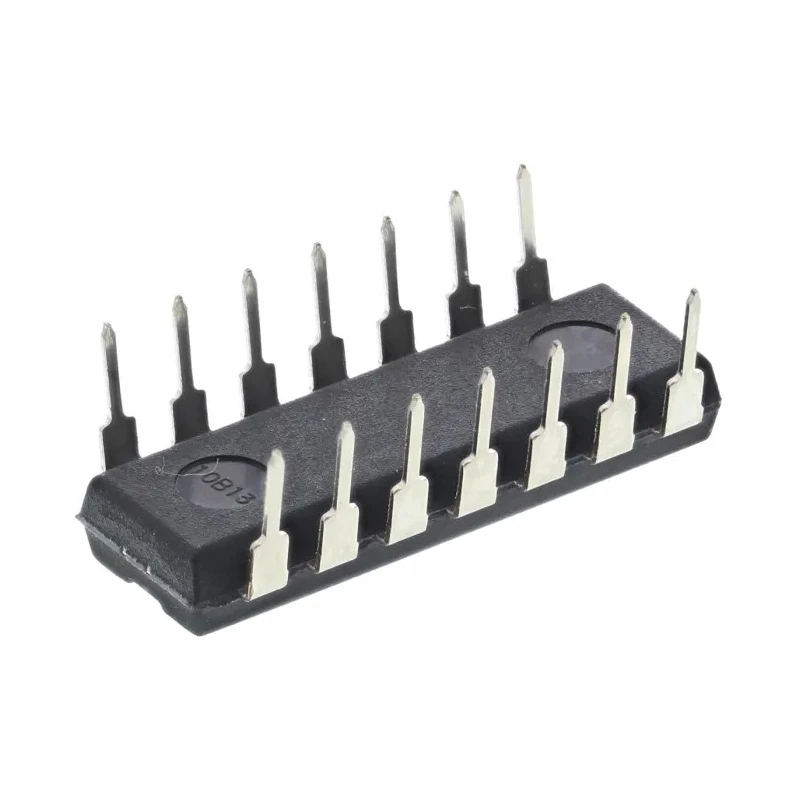

Texas Instruments 7 Stage Through Hole Binary Counter 4000 Series CD4024BE

Texas Instruments CD4024BE is a 7-stage binary counter packaged in a 14-pin Through Hole PDIP format, ideal for electronic and industrial automation applications. It belongs to the renowned 4000 Series CMOS Logic Family, known for its wide voltage range from 3V to 18V and robust operation across extreme temperature conditions (-55°C to 125°C).

This binary counter provides asynchronous preset and reset capabilities, allowing flexible and reliable operation control in various digital systems. It supports counter IC clock frequencies up to 8 MHz at 15V supply voltage, making it suitable for high-speed counting tasks.

The chip features uni-directional counting over 7 stages and is a critical component in divider and counter logic functions within complex circuit designs. Its 14-pin PDIP package facilitates easy mounting on through-hole PCBs, making it accessible for prototyping and production environments alike.

Texas Instruments ensures compliance with RoHS directives, promoting environmentally friendly manufacturing and disposal. This product is engineered to withstand industrial temperature ranges, enhancing durability in demanding scenarios including automation, instrumentation, and embedded computing.

Applications include industrial automation systems, digital electronics development, and logic control circuits. As a reliable component in the 4000 Logic Family, it integrates seamlessly into counters, shift registers, and timing circuits for laboratory, manufacturing, and commercial electronics.

This counter uses a Through Hole PDIP package with 14 pins for easy mounting. Operates with supply voltages ranging from 3V to 18V for flexible design integration. Supports a maximum clock frequency up to 8 MHz at 15V, enabling efficient counting performance.

Features asynchronous preset and reset functions for reliable operation control. Uni-directional counting with 7 stages suitable for digital logic applications. Complies with RoHS standards ensuring environmental safety.

Designed for operating temperatures from -55°C to 125°C for robust industrial use. Part of the durable and widely used 4000 Series by Texas Instruments. Explore more semiconductor and counter IC products in the Electronics & Electricals category on EnvMart.

Explore more products in our Counter ICs category.
